Summary of Contents for LockMaster LM 901

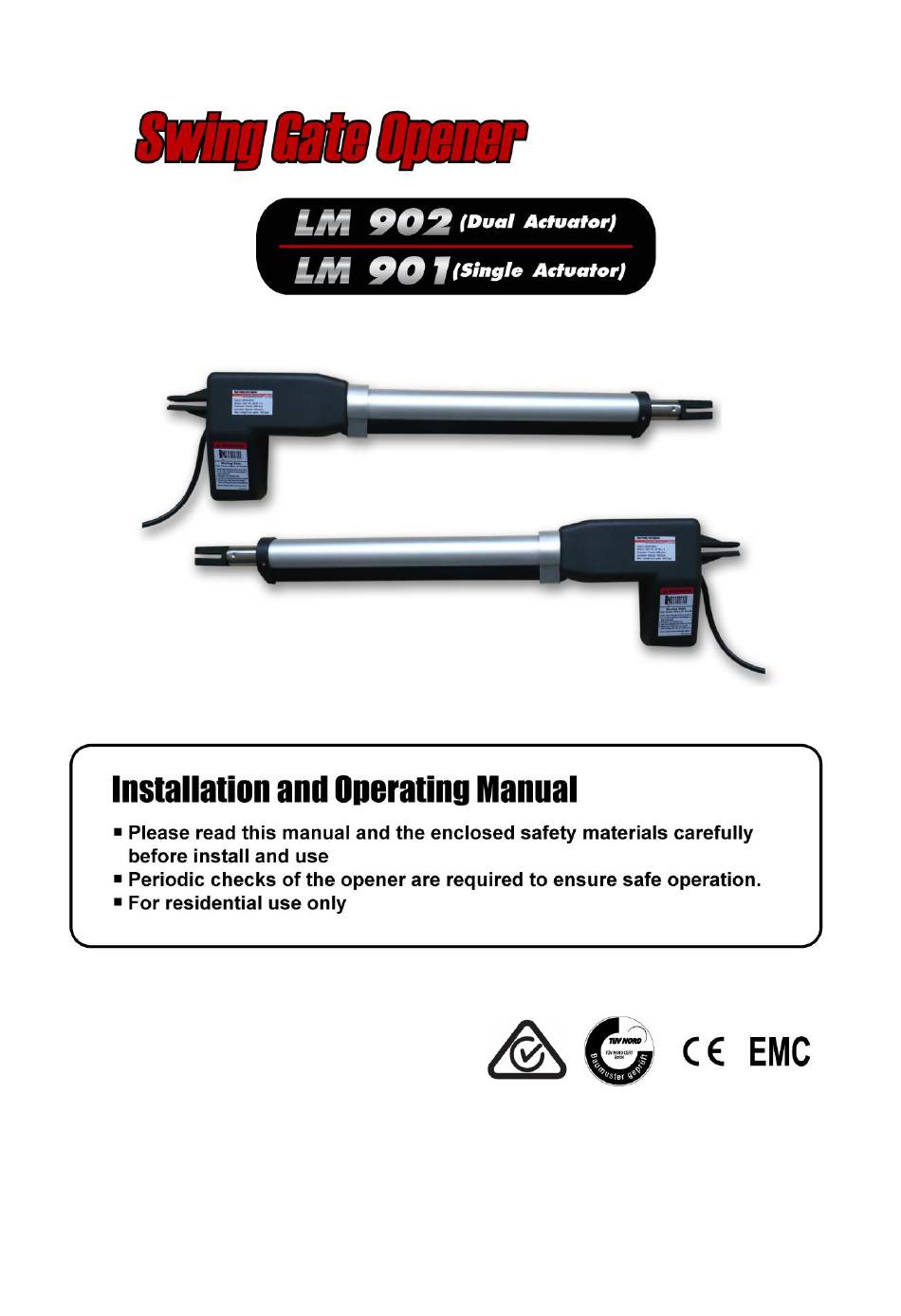

- Page 1 C030005 VER 23a...
-
Page 2: Table Of Contents
Table of Contents Safety Installation Information .......................... 1 Dual Gate Opener Parts List（LM902）......................2 Single Gate Opener Parts List（LM901） ....................... 3 Optional Accessories Parts List........................4 Tools Needed ..............................4 Technical Specifications & Features ........................ 5 Dual Gate Installation Overview ........................6 Single Gate Installation Overview ........................ -
Page 3: Safety Installation Information
use on any pedestrian gate. Pedestrians must be Safety Installation Information supplied with a separate pedestrian access. 1. READ and FOLLOW all instruction. For an installation utilizing non-contact sensors The gate opener is intended for use with Class I (safety sensors), see product manual on the vehicular swing gates. -
Page 4: Dual Gate Opener Parts List（Lm902
underground utility lines, contact underground utility 14. Do not permit children to play on or around the locating companies BEFORE digging. gate and keep all controls out of their reach. SAVE INSTRUCTION. Dual Gate Opener Parts List（LM902）... -
Page 5: Single Gate Opener Parts List（Lm901
Single Gate Opener Parts List（LM901）... -
Page 6: Optional Accessories Parts List
Optional Accessories Parts List Back-up Battery Electric Lock Wired Push Button Wireless Push Button (LM125) (LM149) (LM147) (LM173) Back-up Battery Box Alarm Lamp Exit Wand Photocell Beam (LM130) (LM140) (LM157) System ( LM102) Solar Controller Supporting Frame for Solar Panel Bracket for Solar Panel (LM118B) Solar Panel (LM115) -
Page 7: Technical Specifications & Features
Technical Specifications & Features Specifications Model: LM901 / LM902 Input: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 24VDC Power: 80W each actuator Current: 3A each actuator Actuator speed: 20mm/s（0.8 in/s） Max. actuator travel: 385mm（15.2 in） Ambient Temperature: -22℃~ +55℃ (-4° F to 122° F) Protection class: IP44 Features:... -
Page 8: Dual Gate Installation Overview
Dual Gate Installation Overview Pull-to-Open Gates Important: The second gate opener cable should be put into the PVC conduit (not provided) which is buried underground .This protects the cable from lawn mowers and string trimmers. -
Page 9: Single Gate Installation Overview
Single Gate Installation Overview Pull-to-Open Gate... -
Page 10: Preparation For Installation
Preparation for Installation There are two installation types for the gate opener, Pull-to-Open and Push-to-Open. In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket (PSO part) is required to be used for each gate. NOTE: Ensure the gate does not open into public areas. The gate opener is mounted to the gate and to the gate post. - Page 11 Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted) 1. Insert the M10 x 35 bolt through the center hole of the post bracket and post pivot bracket as shown. Place a ￠ 10 washer , ￠10 lock washer and M10 nut on the bottom of the bolt and hand tighten.
- Page 12 5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener and the Post Pivot Bracket are not binding in both the gate-open and gate-closed positions. If there is not at least 2.5cm of clearance or if the opener and the Post Pivot Bracket are binding, rotate the Post Pivot Bracket and/or move the Post Bracket Assembly to obtain the minimum clearance and eliminate the binding.
- Page 13 6. Sign the bolt-hole point on the gate bracket and gate. Do this by placing a punch or a sign in the middle of each bolt slot on the post bracket assemblies and the gate bracket. It allows slight adjustments to the post bracket.
-
Page 14: Mounting The Control Box
12. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90° counterclockwise. This restores normal operation. Mounting the Control Box 1.To install the control box use the deck screws (not provided). Even though the control box is waterproof designed, for safety reason and a longer service life, it is recommended to install the control box inside a secure surface and at least 100 cm (40 inches) above the ground to avoid... -
Page 15: Connection Of The Power Supply
Connection of the Power Supply WARNING: NEVER connect the gate opener to the power outlet before all the installations have been done. The live line and the neutral line should be connected to the power input terminals as the below photo. No matter the polarity. - Page 17 Alarm Lamp (optional) The red wire of the alarm lamp should be inserted into either LAMP (#11) terminal, the white wire into the other one (#12). Back-up Battery (optional) The “24V+” of the battery should be wired to the BAT+ (#13) terminal, “24V-” should be wired to “BAT-” (#14) terminal.
-
Page 18: How To Learn Or Erase The Remote
How to learn or erase the Remote Learn the remote Press and release the learn button, the LED will display “Ln”, then press the key in the remote twice in 2 seconds, the LED will flash “Ln” for 4 seconds then back to “- -”. Now the remote has been learnt successfully. WARNING: Activate the opener only when gate is in full view, free of obstruction and properly adjusted. - Page 19 Setting. The open interval can be adjusted by pressing the “INC” and “DEC” Buttons respectively. The Digital Display will show “0”-“9”, which indicates the interval time “0” means the Master and Slave gates open simultaneously. “1” means the Master Gate starts to open 1 second before Slave gate starts to open. Max. open interval is 9 seconds.
- Page 20 Press the “FUNC” button to store the data when stall force of gate opener 2 is set. Then “P7” will be shown on the Digital Display. NOTE: You may need to increase the stall force in cold weather due to increased resistance from gate hinges.
-
Page 21: Indicate Illustration On The Digital Display When Gate Opener Is Running
The Soft Stop means the gate opener runs at slow speed during the last period before the gate completely closes. The Soft Stop Period is unavailable by direct adjust but available through adjusting the Fast Running Period. There are two running speeds designed in program, i.e. Fast Running Speed and Soft Running Speed. The Fast Running Period is adjustable from 1 to 28 sec. -
Page 22: Maintenance
gate direction and the gate will stop at its programmed closing position. The gate will reverse in case of obstruction or stall force during closing, and it will move to the programmed opening position. NOTE: The Obstruction Sensitivity /Stall Force is adjustable in 9 levels. Maintenance Warning: Disconnect power before servicing. -
Page 23: Warranty
PBS setting (P9 set to 00). 2. Obstruction blocking close photo eyes, Check eyes for alignment and verify all connections and operation for safety devices. 3. Remove the BLUE&GREEN&YELLOW wires of the arm from the control board and use a jumper wire to short the ULT&COM&DLT terminals of the control board which for connecting the three wires and then try it again. -
Page 24: Quick-Setting Guide
Quick-Setting Guide... - Page 28 ©2021-2024 All Rights Reserved...
