Summary of Contents for convenience concepts NEWPORT GRAMERCY 121809

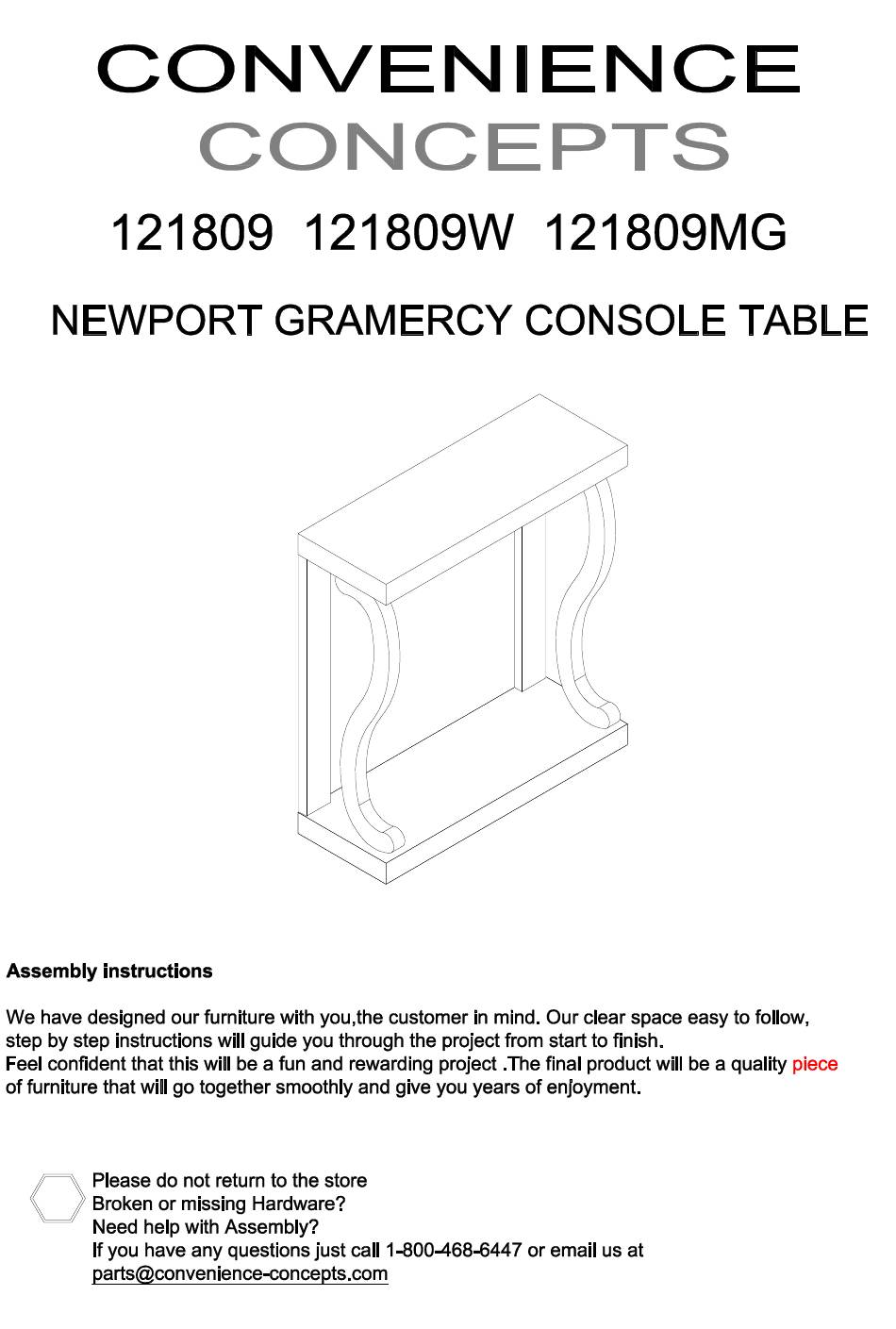

- Page 1 STOP...
- Page 2 PAGE 2 of 5...
- Page 3 PAGE 3 OF 5 ∅ 6x85 ∅ 10x15 ∅ 8x60 Bracket Screw Wall Screw Plastic Anchor Assembling the unit with camlocks and wood dowels. lightly glue dowel and Gently screw the cam lightly glue one end of wood Gently screw cam dowel Insert camlock, connect to second panel clockwise into locked...
- Page 4 Step1 PAGE: 4 of 5 Note: * Place item on a soft surface such as carpet or a towel. 1. Insert dowels(G) and screw full threaded rod(D) into top panel(1). 2. Screw jam nut(E) and nut and washer(F) onto full threaded rod(D) using wrench(H).
- Page 5 Step3 PAGE: 5 of 5 *Optional: Recommended mark hole before screwing into wall to ensure proper placement 1.Attach bracket (I) to top panel (1) using screws (J) as shown. 2. Place unit against wall and mark bracket hole location. Drill hole and tap in anchor (L). 3.
