Summary of Contents for convenience concepts Newport Terry B 121449

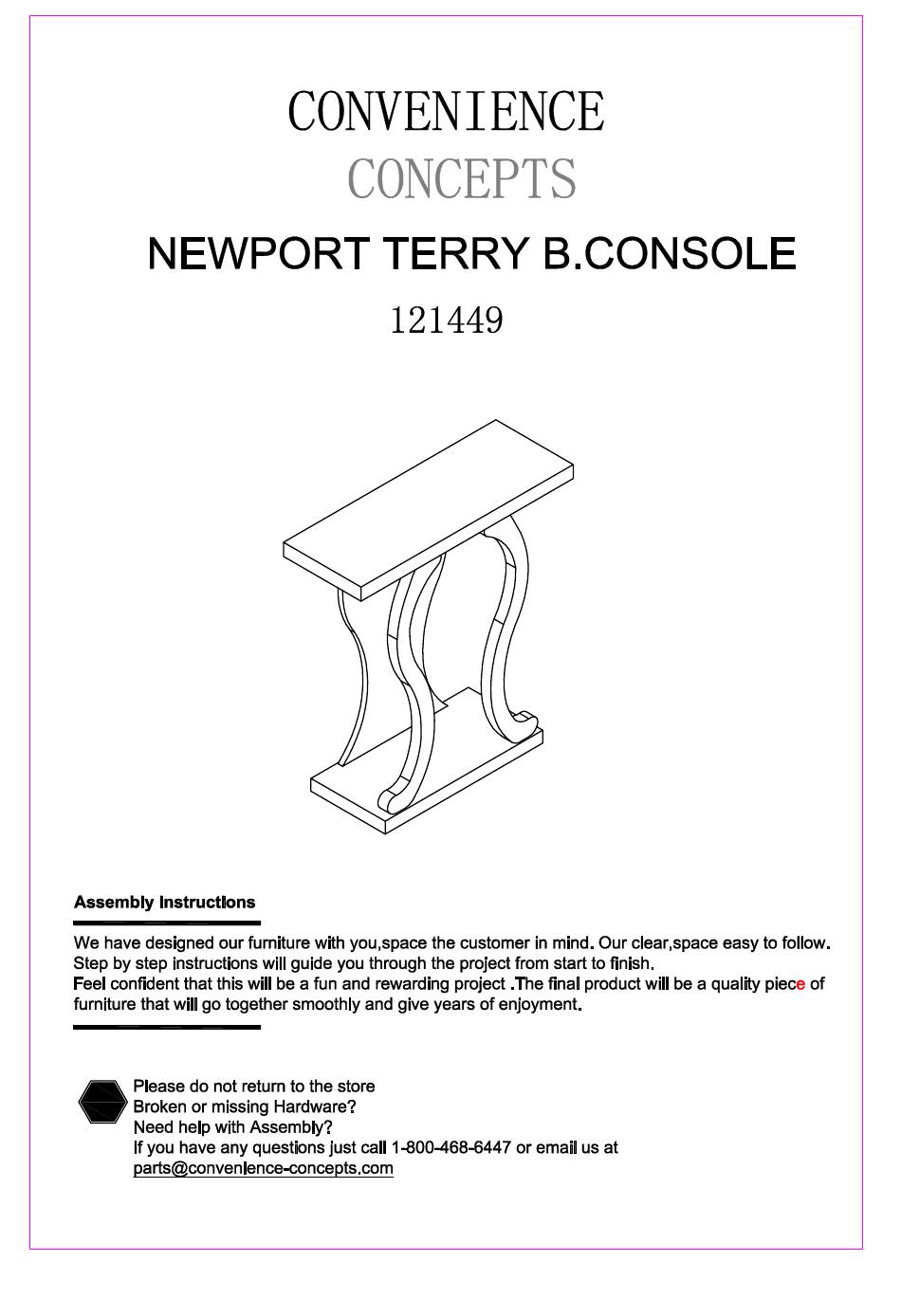

- Page 1 STOP VERSION:2017.06.08 PAGE: 1 of 6...
- Page 2 ∅ ∅ 8×25 Cam b olt (2pcs) Cam l ock (2pcs) Dowel (5pcs) Jam washer&Nut (2pcs) ∅ ∅ M8x70 8×16×2 4×55 Full Threaded Rod (2pcs) Large Sticker (2pcs) Medium Washer (4pcs) Screw (2pcs) ∅ ∅ 6×65 Foot Pin (4pcs) Small sticker (2pcs) Barrel Bolt (2pcs) Allen Wrench(1pc) ∅...
- Page 3 TOP PANEL(1pc) BACK PANEL(1pc) LEFT LEG(1pc) RIGHT LEG(1pc) BOTTOM PANEL(1pc) *Please count and verify all parts before assembly.* PAGE: 3 of 6...
- Page 4 Assembling the unit with camlocks and wood dowels. lightly glue dowel and Gently screw the cam lightly glue one end of wood Gently screw cam bolt Insert camlock, connect to second panel clockwise into locked dowel and tap into hole. into the threaded anchor camlock must face by inserting dowels into...
- Page 5 Step1 1. Insert wood dowel(C) into bottom of back panel(2). 2. Connect back panel(2) to bottom panel(5) using screws(G). Step2 PAGE: 5 of 6...
- Page 6 Step3 1. Gently tap foot pin(J) onto bottom of bottom Step4 1. Screw cambolts(A) into top panel(1). 2. Screw full threaded rod(E) into top panel(1). 3. Insert camlocks(B) into back panel(2) and dowels(C) into legs(3) and (4). 4. Connect top panel(1) to assembly. Gently tighten camlocks.
