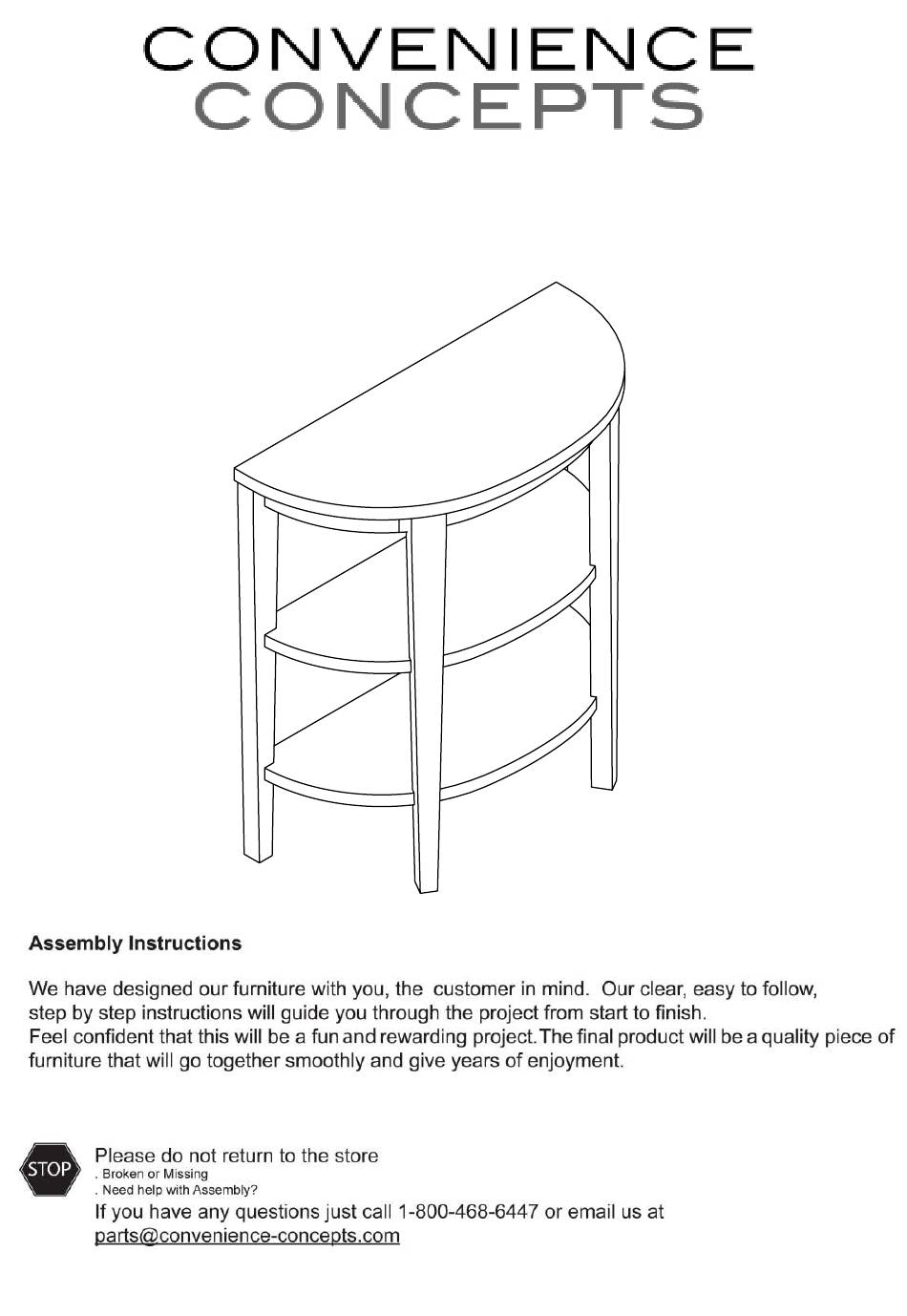

- Page 1 121099 Console Table Hardware?
- Page 2 PAGE:2 OF 5 PARTS IDENTIFICATION ITEM#:121099 1.Top Panel (1pc) 2.Front Leg (2pcs) 3.Middle Panel (1pc) 4.Left Leg (1pc) 5.Right Leg (1pc) Please count and verify all parts before assembly 6.Bottom Panel (1pc)
- Page 3 PAGE:3 OF 5 HARDWARE IDENTIFICATION ITEM#:121099 Cambolt Camlock Dowel Bolt Threaded Rod Jam Washer & Nut Wrench Sticker Glue Lightly glue dowel and Gently screw the cam Insert camlock， Gently screw cam dowel Lightly glue one end of connect to second panel clockwise into locked camlock must face into the threaded anchor...
- Page 4 PAGE:4 OF 5 Step1 1.Attach cambolts (A) to legs. 2.Insert camlocks (B) into A×8 middle panel (3) & bottom panel (6). 3.Attach legs to panels and gently tighten camlocks as shown. NOTE: *UNIT IS BEING ASSEMBLED UPSIDE-DOWN. Step2 Place top panel (1) on soft surface.
- Page 5 PAGE:5 OF 5 Step3 Secure legs (2) to assembly with bolts (D). D×4 Step4 Turn right side up and enjoy!
