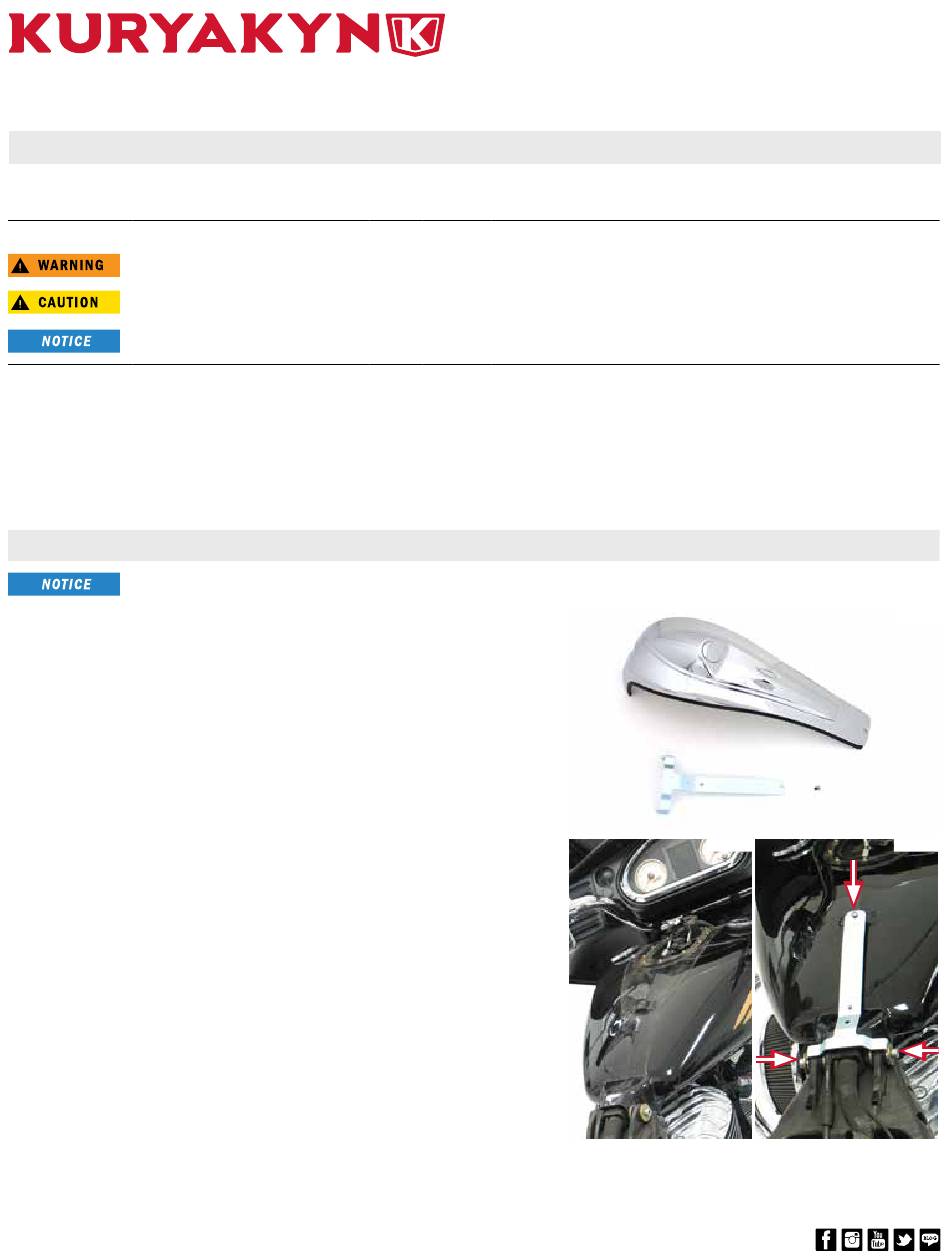

INSTALLATION INSTRUCTIONS
SIGNATURE SERIES VANTAGE DASH CONSOLE BY JOHN SHOPE, SATIN BLACK
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND FUNCTIONALITY OR
DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.
ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1
Dash Console
1
Bracket
1
M6 X 1.0 X 12MM Flat Head Socket Cap Screw
YOU WILL ALSO NEED:
Metric hex wrench set, Torx wrench set
PICTURES SHOWN ARE OF THE CHROME PARTS. INSTALLATION OF THE BLACK PARTS WILL BE THE SAME.
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY AND IS AWARE
OF ITS IMPORTANCE FOR FUTURE USE.
STEP 1
Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off
the ignition. Let motorcycle cool.
STEP 2
Remove the seat.
STEP 3
Refer to PIC 2. Unfasten the existing tank console by removing the rear
mounting screw and dart clip, and loosening (not removing) the front
shoulder screw located under the handlebars area. Set the rear screw
aside, it will be reused. The dart clip will not be reused.
STEP 4
Disconnect all wired components between the console and wiring
harness, and remove the existing tank console from the bike. Set the
console with switches aside for now.
STEP 5
From the rear of the tank remove the tank mounting screws and
washers from each side, and heat shields if applicable. Set the
hardware aside, they will be reused.
STEP 6
Refer to PIC 3. Locate provided mounting bracket and the rear screw
that was removed in Step 3. Align the single mounting hole side of the
bracket with the top of the tank. Lightly fasten the bracket to the tank
using the existing screw.
STEP 7
Align the two holes on the lower end of the bracket with the tank
mounting holes. Fasten the bracket to tank using the screws and
washers removed in Step 5, reinstall heat shields at this time if
applicable. Fully tighten all bracket fasteners.
STEP 8
Locate provided Dash Console.
PAGE 1
305627
DPF-MRK-003 REV A 4/9/18
M6
BRACKET
FHSCS
PIC 2
K U R YA K Y N . C O M
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025
5627
PIC 1
PIC 3
