Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.
KIT CONTENTS:
Step Rails x2
Bracket x6
Front End Cap x2
Rear End Cap x2
Tread Plate x4
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs

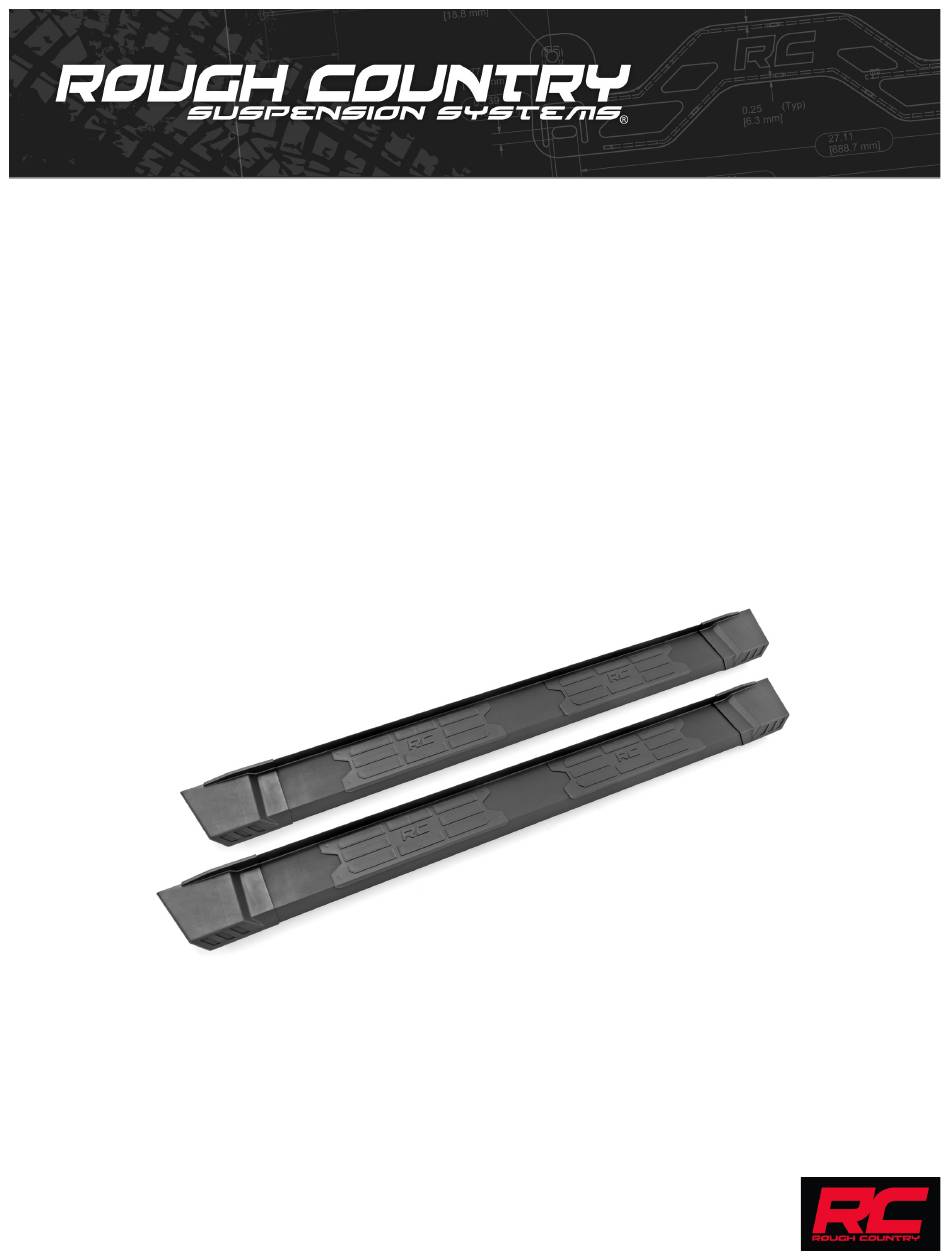

RAM 2019-23 1500 / 2021-23 TRX HD2 STEP
Thank you for choosing Rough Country for all your vehicle needs.
TOOLS NEEDED:
10mm Wrench or Socket
13mm Wrench or Socket
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
Class 8.8
Class 10.9
5ft/lbs
9ft/lbs
18ft/lbs
23ft/lbs
32ft/lbs
45ft/lbs
55ft/lbs
75ft/lbs
85ft/lbs
120ft/lbs
130ft/lbs
165ft/lbs
170ft/lbs
240ft/lbs
HARDWARE INCLUDED:
18 -8mm Flange Nut
12 - 6mm Flat Washer
12 - 6mm Lock Nut
12 - 6mm x 20mm Bolt
8 - 6mm Lock Washer
8 - 6mm x 15mm Button Head Bolt
8 - 6mm Hex Nut
24 - 8mm Self Threading Nut
921SRB01950
Advertisement
Related Manuals for rough country SRB01950A
Summary of Contents for rough country SRB01950A
- Page 1 921SRB01950 RAM 2019-23 1500 / 2021-23 TRX HD2 STEP Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 HD2 BOARD ASSEMBLY 1. Place molded tread plate onto the running board by aligning the pegs with the holes in the step board. See Photo 1. 2. Secure the tread plate to the step board with the supplied self-threading nut using a 13mm socket. See Photo 2. Photo 1 Photo 2 Install tread plate.
- Page 3 Install step boards. By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable, State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold.
