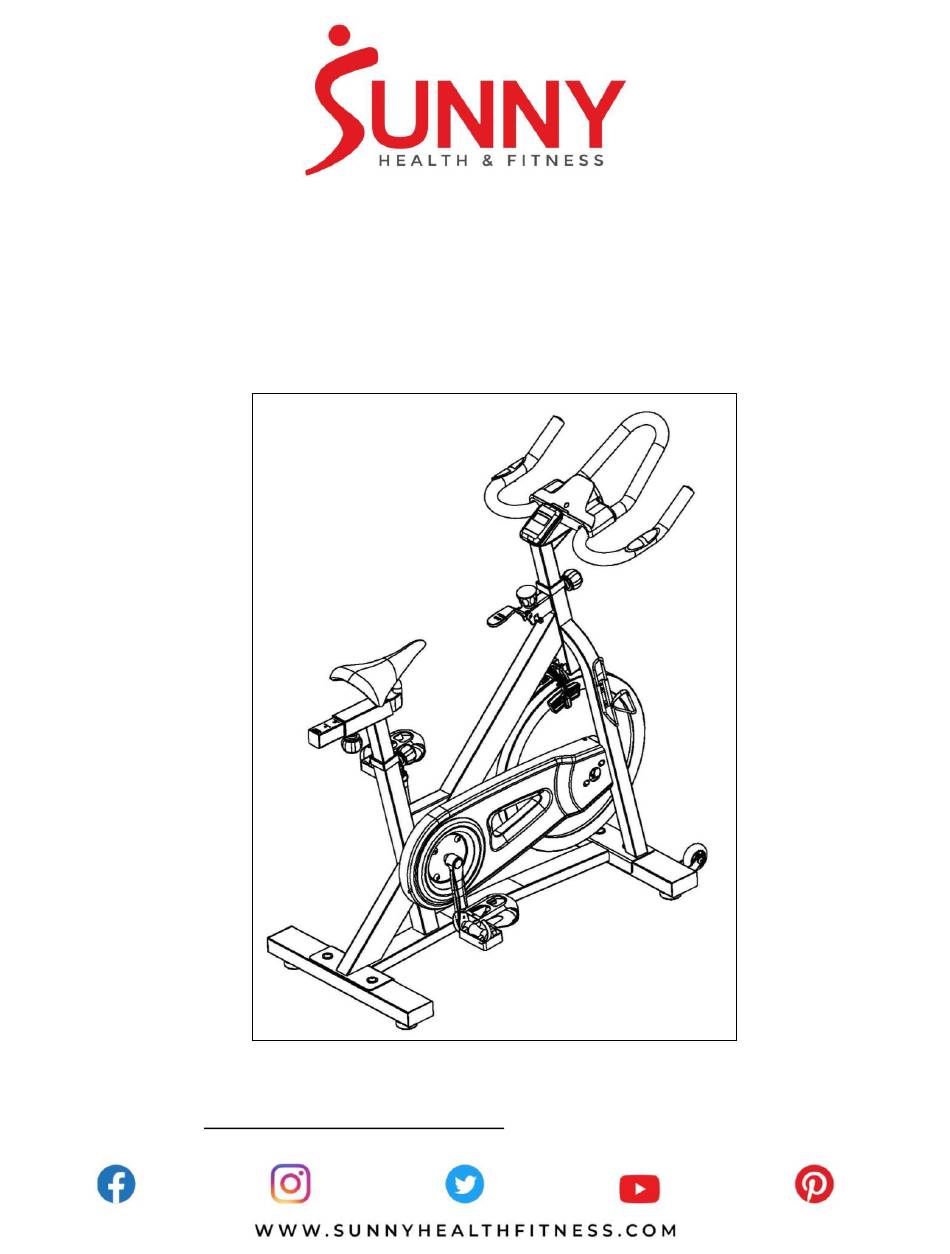

BELT DRIVE PRO II INDOOR
CYCLING BIKE
SF-B1995
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1995 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-B1995

Summary of Contents for Sunny Health & Fitness SF-B1995

  • Page 1 BELT DRIVE PRO II INDOOR CYCLING BIKE SF-B1995 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 1...
  • Page 4 EXPLODED DIAGRAM 2...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Adjustable Belt Bolt Main Frame Seat Post Sleeve Seat Slider Nylon Nut Handlebar Post Brake Pad Handlebar Clamp Brake Holder Cap Nut Washer Φ11*Φ25*4 Rear Stabilizer Bearing 6202Z Front Stabilizer Bearing 6004-2RS Brake Handle Bearing 608ZZ...

  • Page 6: Hardware Package

    Foam Grip A Allen Wrench Foam Grip B Wrench S13 15 77L/R Refer To Part #93L/R Spanner S14 15 17 End Cap Spanner S8 14 22 Handlebar Cover Screw M5*10 Wave Washer Crank 170 “L” “R”9/16 1 pr. D20*Φ26.5*0.6 91L/R Φ20*180*43*83*4- Middle Handlebar Bottom Bracket Axle...
  • Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669) STEP 1: Use Allen Wrench (No. 86) to unscrew 4 Screws (No. 70) and 4 Washers (No. 33) from Front &...
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669) STEP 3: IMPORTANT! Read instructions carefully, failure to do so may cause permanent damage to your bike. Remove the Left &...
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669) STEP 4: Loosen and remove 2 Spring Knobs (No. 23). Insert the Seat Post (No. 2) and Handlebar Post (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669) STEP 6: Remove the preassembled Screw (No. 90) from Handlebar (No. 5). Then attach Handlebar Cover (No. 79) to Handlebar (No.

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE BALANCE: In order to achieve a smooth and comfortable ride during use, you must ensure the stability of the bike. If you notice that the bike is unbalanced, you can adjust the foot pads located beneath the front and rear stabilizers.

  • Page 12: Pedal Strap Adjustment

    PEDAL STRAP ADJUSTMENT Your feet should be secured in the toe clips during exercise. Place your feet as far forward into the toeclips as you can. With your feet in place, turn the crank to bring one foot to within arm’s reach, grasp the Pedal Belt (No.

  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE 1. Check all hardware is secure, such as: bottle After each exercise session, wipe down all holder, flywheel nuts, belt/chain guard bolts, the equipment: seat, frame and handlebars.

  • Page 14: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION The meter uses 2 AAA batteries. Open the battery cover from the back of meter, then put 2 batteries into the battery compartment. Make sure the (+) and (-) ends of the batteries are in the correct position. Put the battery cover back. BATTERY REPLACEMENT If there is a problem with the display, try changing the batteries first.

  • Page 15: Function Buttons

    EXERCISE METER FUNCTION BUTTONS MODE: Press the button for selection function display value on the meter. Press the button and hold for 2 seconds to reset all values except odometer to zero. Note: When the user replaces batteries, all the values will reset to ZERO automatically.
