Delta 50-761 Instruction Manual

2 h.p. dust collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

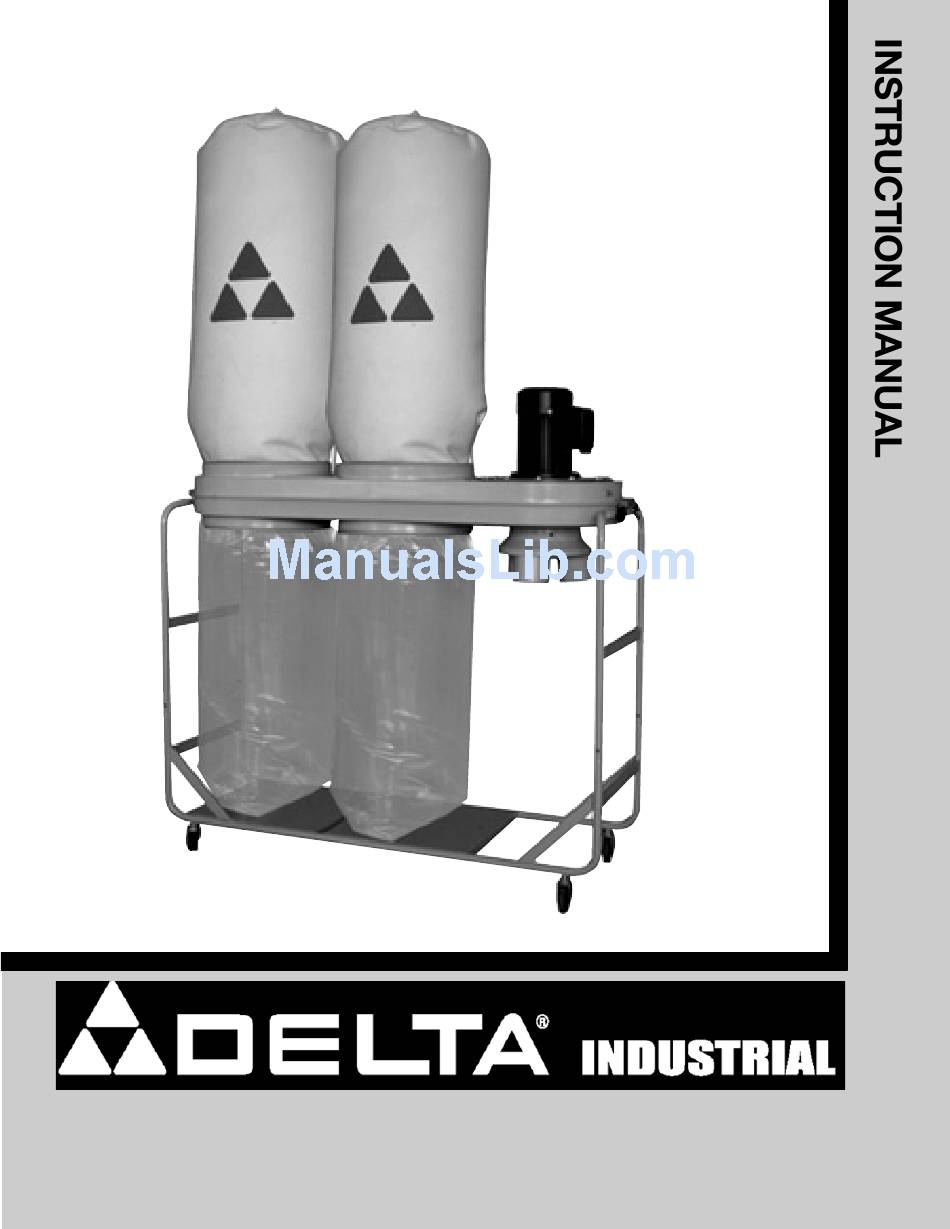

2 H.P. Dust Collector
(Model 50-761)
PART NO. A03570 - 05-12-05
Copyright © 2005 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading

Related Manuals for Delta 50-761

Summary of Contents for Delta 50-761

  • Page 1 2 H.P. Dust Collector (Model 50-761) PART NO. A03570 - 05-12-05 Copyright © 2005 Delta Machinery To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call In Canada call...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ............2 SAFETY GUIDELINES .

  • Page 3: Safety Guidelines

    Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage. WHEN USING THIS DUST COLLECTOR, DO NOT PICK UP ANYTHING THAT IS BURNING, SMOLDERING OR SMOKING, SUCH AS MATCHES, CIGARETTES, OR HOT ASHES.

  • Page 4: General Safety Rules

    READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock, fire, and/or serious personal injury or property damage. 1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION MANUAL BEFORE OPERATING THE MACHINE.

  • Page 5: Grounding Instructions

    POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug.

  • Page 6: Functional Description

    FUNCTIONAL DESCRIPTION FOREWORD The Delta Industrial Model 50-761 Dust Collector will connect to woodworking machines that accept a 4" diameter hose. The 50-761 comes with four 6 mil plastic collection bags and two 1 micron filter bags. NOTICE: THE PHOTO ON THE MANUAL COVER ILLUSTRATES THE CURRENT PRODUCTION MODEL.

  • Page 7: Carton Contents

    3. Dust intake port 4. Cloth-covered bag retainer ring (2) 5. One micron upper filter bag (2) 6. Six mil plastic lower bag (4) 7. Legs (2) 8. Bag retainer clamp (2) 9. Bag hanging rod (2) CARTON CONTENTS Fig. 1 1.
  • Page 8 10. Caster (4) 11. Intake cap and ring (3) 12. Bracket for bag hanging rod (2) 13. Knob for attaching legs to blower/motor assembly (4) 14. 3/8” (9.5mm) Lockwasher for attaching casters to stand (4) 15. 5/16” (8mm) Flat washers for attaching legs to blower/motor assembly and for the brackets (6) 16.

  • Page 9: Assembly

    ASSEMBLY TOOLS REQUIRED * Phillips head screwdriver ASSEMBLY TIME ESTIMATE - 30 minutes to 1 hour FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
  • Page 10 ALTERNATE SETUP The steps so far will assemble the unit with the motor on top and dust intake ports on bottom, as shown in Fig 4. This unit can be assembled with the intake port (B) Fig. 5 in the up position by following the steps in “LEGS TO MOTOR/BLOWER ASSEMBLY.”...
  • Page 11 USING METAL BAG CLAMP: The plastic bag can also be attached to the outside of the dust collector using the included clamp (B) Fig. 10: 1. Place clamp (B) around top of plastic bag (A) and fold about 4 to 6 inches of plastic bag over the clamp as show in Fig.
  • Page 12 SOURCE BEFORE CONNECTING OR DISCONNECTING HOSE . Model 50-761 provides three 4” dust ports. Proceed as follows for each port with your accessory hoses. NOTE: Place open end (D) of intake cap rings around and onto ends of each dust intake port before attaching the hose.

  • Page 13: Operation

    (B) Fig. 15 with a 3/16" diameter shackle. WHEN USING THIS DUST COLLECTOR, DO NOT PICK UP ANYTHING THAT IS BURNING, SMOLDERING OR SMOKING, SUCH AS MATCHES, CIGARETTES, OR HOT ASHES. DO NOT USE TO VACUUM COMBUSTIBLE EXPLOSIVE MATERIALS, SUCH AS COAL, GRAIN OR OTHER FINELY DIVIDED COMBUSTIBLE MATERIAL.

  • Page 14: Maintenance

    KEEP MACHINE CLEAN Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material. Wear ANSI Z87.1 safety glasses while using compressed air.
  • Page 15 NOTES...
  • Page 16 PORTER-CABLE (CENTROS DE SERVICIO DE PORTER-CABLE Parts and Repair Service for Porter-Cable (Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable ARIZONA GEORGIA Phoenix 85013-2906 Forest Park 30297 (Atlanta) 4501 N. 7th Ave. 5442 Frontage Road, Phone: (602) 279-6414 Suite 112 Fax: (602) 279-5470...
