- Page 1 EWE381SX1G6 EWE481SX1G6 EWE451SB-G6 EWE361SB-G7 EWE241SX-G6 UH900 ELECTRIC WATER HEATER INSTALLATION GUIDE & USER MANUAL...
-
Page 2: Parts Identification

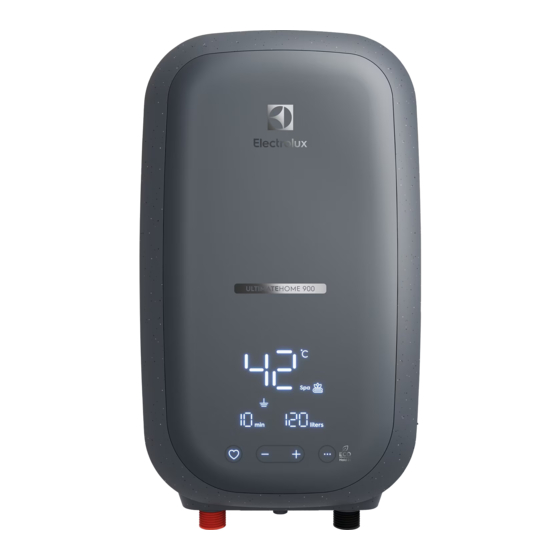

1. PARTS IDENTIFICATION Main Product 1. Main Display 2. Favorite Button 3. Temperature control buttons 4. Mode button 5. Water outlet 6. Water inlet 7. 3 in 1 Stop Valve 8. Stop Valve Lever 9. Built-in-Filter 10. Test button 11. Reset button 12. -
Page 3: Safety Information
2. SAFETY INFORMATION Distinct change in performance. Products manufactured by Electrolux are safe Water leakage from inside. provided they are installed, used, and maintained in good working order in... - Page 4 2. SAFETY INFORMATION(Continued) Before using the Electric Water Heater, it is The built-in ELCB (Earth Leakage Circuit advisable to test and adjust the water Breaker) will automatically cut off the power temperature according to your preference. supply in case of current leakage over 15mA. During lightning or thunderstorms, switch off the The thermostat will automatically cut off the power supply to the Electric Water Heater in...
-
Page 5: Installation
3. INSTALLATION 3.1 Product Mounting 5. Use a 6mm diameter drill bit and make the wall plug holes with a depth of 34mm for 1. Select a suitable position in the bathroom. mounting the Electric Water Heater. Note: The bottom of the water heater should 6. - Page 6 3. INSTALLATION(Continued) Select a suitable position for the slider rail Fix the Slider Rail by tightening screw B on Rail shower set then mark 2 screws point (1 on top Bracket, then reinstall the caps as shown and 1 on bottom). It is recommended that the below.
- Page 7 3. INSTALLATION(Continued) Select a suitable position for the slider rail Press the Slider Rail into the Rail Bracket Base shower set then mark 4 screw points (2 on top and reinstall the Rail Bracket Cover. and 2 on bottom). It is recommended that the Top Rail Bracket position at a height of 1950mm to the floor and Bottom Rail Bracket 1300mm to the floor.
- Page 8 3. INSTALLATION(Continued) Install rail shower head, hand shower head, 3.3 Plumbing Procedure and connect PVC hose to the water inlet of the CAUTION! Selector Valve as shown below: This Electric Water Heater is a single-point system, and the “Water Outlet” can only be fitted to the Hose and Hand shower set provided.
- Page 9 3. INSTALLATION(Continued) IMPORTANT! 1. Lead the power cable from MCB to an “ON/OFF’’ double-pole switch having a For Pump Models, it is highly recommended to contact separation of at least 3mm in all poles connect the Water Inlet Connection to a outside the bathroom, then lead a cable to the storage supply tank;...
- Page 10 3. INSTALLATION(Continued) 3. Connect the mains cable to the Terminal 5. Check if the wiring connection is correct. Block as follows: For first installation, it is advised to check for earth connection of the water heater. BROWN or RED --LIVE (L) Earth light will light up if wire connection is BLUE or BLACK --NEUTRAL (N)
-
Page 11: Usage Instruction
4. USAGE INSTRUCTION Display Icon Identification 1. Maximum Power Icon 2. Temperature Display 3. Favorite Icons 4. Setting Icon 5. Favorite button 6. Overheat Icon 7. Time Usage Display 8. Earth Icon 9. Temperature adjustment buttons 10. ELCB (Earth Leakage Circuit Breaker) Icon 11. - Page 12 4. USAGE INSTRUCTION(Continued) If the set temperature reaches 32°C and the "-" the control panel of the unit. This action will button is pressed again, the Cold Shower icon deactivate the cold shower mode, and the will light up, indicating that the heater will stop heater will start functioning again to provide heating the water to provide a cold shower warm water for your shower.
- Page 13 4. USAGE INSTRUCTION(Continued) If a user selects a saved favorite temperature of 43°C, 44°C, or 45°C and the ECO mode is turned on, ECO mode will automatically turn off for the duration of using this saved favorite temperature. ECO mode will revert back to its previous state after exiting the favorite temperature setting.
- Page 14 4. USAGE INSTRUCTION(Continued) Use the "+" and "-" buttons to set the timer To turn back on the water usage info, tap and reminder. The maximum timer to set is 30 hold the "Favorite" and "Mode" buttons minutes. Once the preferred timing is set, the together for 2 seconds.
- Page 15 If any issue occurs, turn off the mains supply and turn it on again. If the issue persists, contact local Electrolux Service or authorized service technicians. Shower Accessory Usage 3 spray shower head have 3 spray patterns:...
-
Page 16: Maintenance
Test Button, switch OFF the mains supply and Clean the Mesh Filter regularly to prevent contact Electrolux Consumer Care Centre for blockage. Remove the Built-in Filter by turning its repair service. Special skill is required for cap anticlockwise. Whenever needed, flush the repairing. -
Page 17: Wiring Diagram
6. WIRING DIAGRAM UH900 series with ELCB (Earth Leakage Circuit UH900 series with ELCB (Earth Leakage Circuit Breaker), with display, no pump models Breaker), with display, with pump models Relay 1 Relay 1 MAIN CONTROL MAIN CONTROL BOARD BOARD Relay 2... -
Page 18: Consumer Care
