Instruction manual

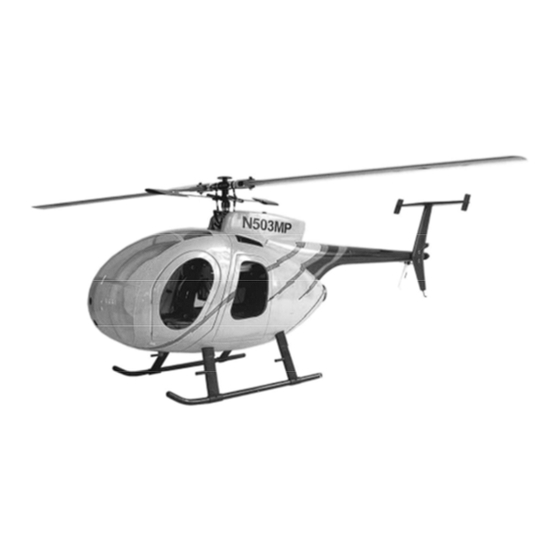

Scale Fuselage MD500D/E
500 size
1. INTRODUCTION
Thank you for buying Roban Model products. The 600 size MD500D/E scale fuselage is designed as an
easy to use product. Please read the manual carefully before assembling the model, and follow all
precautions and recommendations located within the manual. Be sure to retain the manual for future
reference, routine maintenance and tuning. The scale fuselage is designed for T-REX 600 Helicopter
series use. You can easily put it on your T-REX 600 for new clothing.
Important Note
Roban Model R/C Helicopters are advanced, high-performance devices, built incorporating the latest
technologies. They are not intended as toys, and improper use can potentially lead to serious injury,
or even fatal accidents. We implore you to read this manual thoroughly before operating these
models. Safety should be your utmost priority - not just your own, but also that of others and your
surroundings when piloting Roban Model products.
Liability Disclaimer:
The manufacturer and the seller cannot accept liability for the operation or misuse of this product.
Roban Model R/C helicopters are intended to be used exclusively by experienced adults in legally
sanctioned flying fields. Once sold, we cannot monitor or control the product's operation or usage.
Operation Guidelines:
Upon assembly of the scale fuselage, the weight and complexity of the structure will increase. To
mitigate risk of accidents and damages, we advise against attempting 3D flights.
Skill Requirements:
