Summary of Contents for Bass Habit REBEL RA2000W

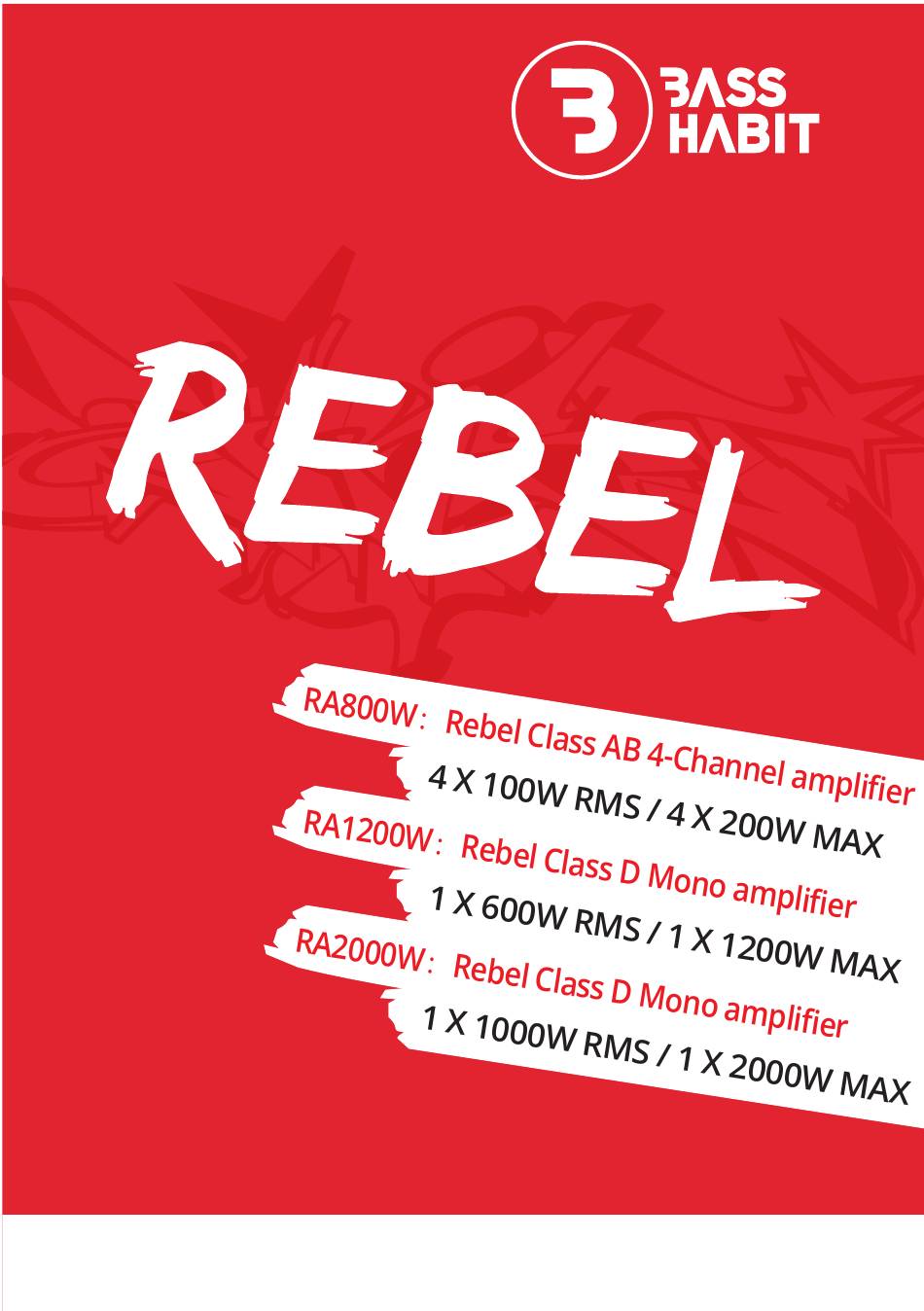

- Page 1 R EBE L RA A M P L IF I ER U SE R M AN UAL...
- Page 5 POWER CONNECTIONS RA800W RA1200W RA2000W 4-CHANNEL STEREO SPEAKER SYSTEM RA800W 3-CHANNEL STEREO+BRIDGE MODE RA800W...
- Page 6 2-CHANNEL MONO BRIDGE MODE RA800W MONO CHANNEL SUBWOOFER SYSTEM (1 SUBWOOFER) RA1200W RA2000W min. 1 Ohm min. 1 Ohm MONO CHANNEL SUBWOOFER SYSTEM (2 SUBWOOFER) RA1200W RA2000W min. 2 Ohm min. 2 Ohm min. 2 Ohm min. 2 Ohm...
- Page 8 RA800W 1) POW Power indicator (Green) / PRT Protect indicator (Red) 2) HPF High Pass Filter 32-2000Hz (12dB/Oct) 3) HPF/FULL: Filter mode se�ngs 4) GAIN: Gain control CH 1/2 input signal adjustment 6V-0.2V 5) INPUT RCA CH 1/2 6) INPUT RCA CH3/4 7) GAIN: Gain control CH 3/4 input signal adjustment 6V-0.2V 8) BASS BOOST 0dB/6dB/12dB (45Hz) 9) LPF Low Pass Filter 50-250Hz (12db/Oct)
-
Page 9: Specifications
SPECIFICATIONS RA800W RA1200W RA2000W Component CLASS D amplifier CLASS D amplifier CLASS AB amplifier Number of channels 1 channel 1 channel 4 channels Power output MAX 2000W MAX 1200W MAX 800W MAX Power output @1 ohm 1x1000W RMS* 1x600W RMS* Power output @2 ohm 1x650W RMS* 1x400W RMS*... - Page 10 Amplifier MODEL RA800W RA1200W RA2000W Bass Remote Included in RA1200W/RA2000W (mm)
- Page 11 The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste authority. Winn Scandinavia reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.
