Summary of Contents for Bass Habit PP65.4

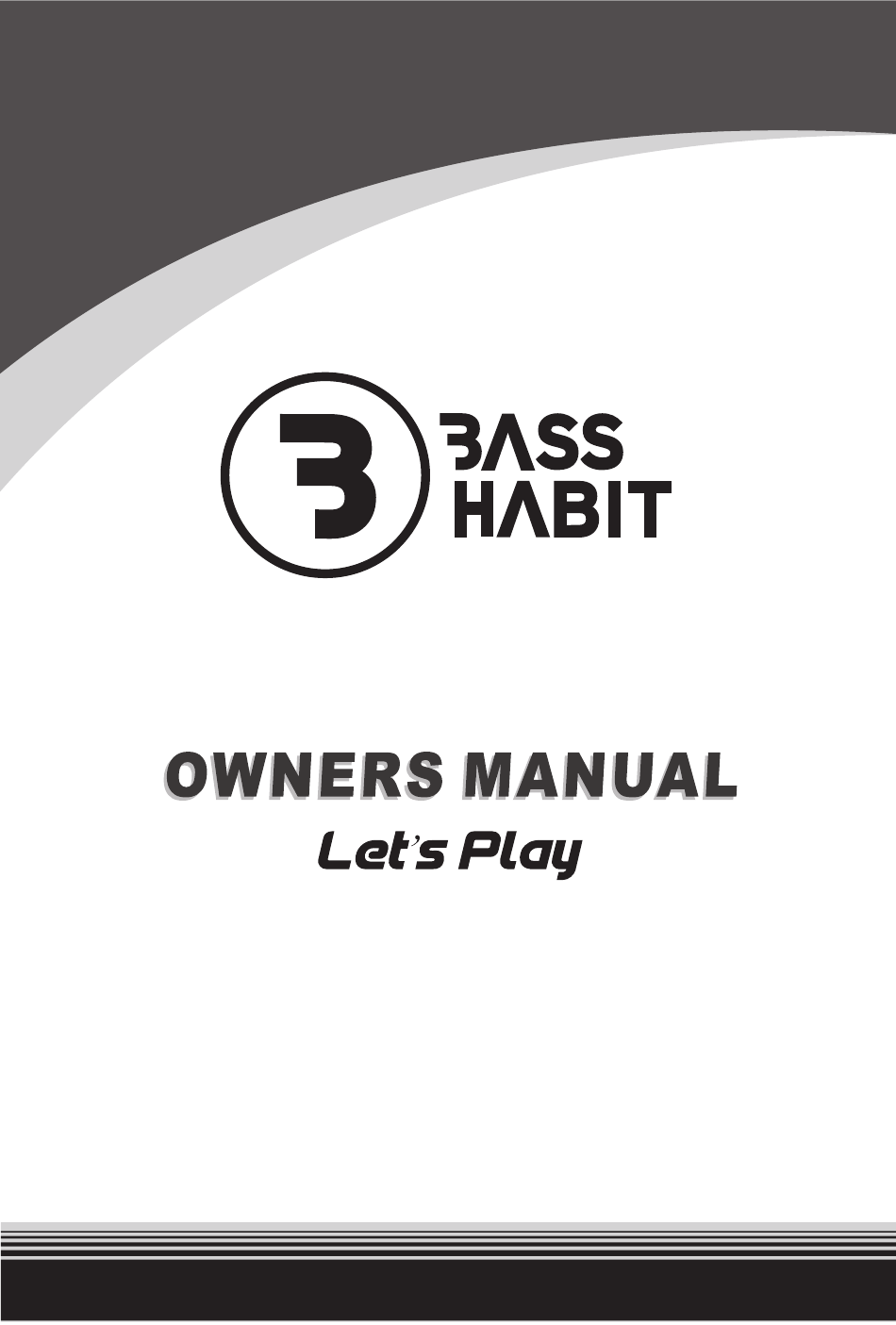

  • Page 1 PP65.4...
  • Page 2 Closely follow the advices, recommendations and safety precautions. Thank you for choosing Bass Habit! We hope you enjoy listening to your product as much as we have enjoyed creating it. SAFETY INSTRUCTIONS Do not expose this product to damp or moisture - doing so may result in fire, shock or...

  • Page 3: Installation

    INSTALLATION Turn off the audio system and other electronic devices before you start. Disconnect the negative (-) lead from your vehicle’s battery. Choose a mounting location in an area where the amplifier will not be damaged, and where the amplifier is not covered up. Mount the amplifier so that it remains dry - never mount an amplifier outside the vehicle or in the engine compartment.
  • Page 4 POWER CONNECTIONS (FIG 1) To get the very best performance out of your Bass Habit amplifier, carefully follow the instructions below: Power Connection (+12V): Connect the 12V power supply cable after all other leads have been connected and secured. Make sure the power supply cable is secured with a fuse 20-30cm from the positive 12V battery terminal.
  • Page 5 SPEAKER CONNECTIONS (FIG 2, FIG 3, FIG 4) Speaker connections should be made using a minimum of 1,25 mm2/16-gauge wire. FIG 2: 4-CHANNEL STEREO SPEAKER SYSTEM 2-8 Ohm 2-8 Ohm 2-8 Ohm 2-8 Ohm FIG 3: 3-CHANNEL STEREO + BRIDGED 2-8 Ohm min.
  • Page 6 FIG 4: 2-CHANNEL MONO BRIDGED min. 4 Ohm min. 4 Ohm SIGNAL CABLE CONNECTIONS (FIG 5) Use high quality RCA jack cables to make sure you get the full audio experience. FIG 5: SIGNAL CABLE CONNECTIONS...
  • Page 7 SETTINGS Bass Habit PP65.4 is a Class A/B amplifier and can be used for all type of speakers in the range between 20Hz-20kHz. While listening to music, adjust the gain/crossovers/bass boost for the least perceived distortion from the speakers. Line Inputs (LINE IN) Connect the line outputs from your source unit to the line inputs L and R on the amplifier using...
  • Page 8 FIG 6: FUNCTIONS High Pass Filter 120Hz-3kHz (12dB/Oct) HPF/LPF/FULL Filter mode setting Low Pass Filter 50Hz-250Hz (12dB/Oct) BASS LEVEL 12dB/6dB/0dB at 45Hz Gain Gain control rear, input signal adjustment 0.2V-6V RCA Rear input RCA Output RCA Front input GAIN Gain control front, input signal adjustment 0.2V-6V FULL/HPF Filter mode setting High pass filter 120Hz-3kHz (12dB/Oct)

  • Page 9: Specifications

    SPECIFICATIONS Model No. PP65.4 RMS @2 Ohm 4x110W RMS @4 Ohm 4x65W RMS bridged @4 Ohm 2x180W Low pass filter 50Hz-250Hz High pass filter 120Hz-3kHz Bass Boost 12/6/0dB (45Hz) Frequency response 20Hz-20kHz >85dB Input sensitivity 0.2V-6V <0.05% Operation Voltage 9-16V...

  • Page 10: Troubleshooting

    TROUBLESHOOTING: Symptom Check / Control No audio. (Power LED not active) Measure voltage at +12V and REM terminals. Check GND connections. Distorted audio Check GAIN control, so it is properly set. Check source unit or amplifier, if defective it can cause distortion. Music lacks bass and attack Check speaker connections for proper polarity.

  • Page 11: International Warranty

    WARRANTY All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The Warranty is valid from the date of the original receipt as proof of purchase. The warranty does NOT cover: •...
