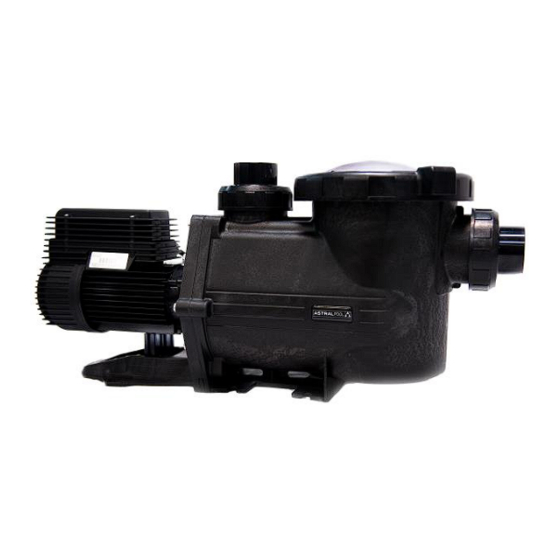

Pumps
Series: CTX, XP, XF, E
FOR YOUR SAFETY – This product must be installed and serviced by a contractor who is licensed and
qualified on pool equipment in accordance with the latest applicable version of AS3633, along with any
other applicable local or council codes/standards. Before installing this product, read and follow all warning
notices and instructions that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or operation may void
the warranty.
Improper installation and/or operation can create unwanted electrical hazards which may cause serious
injury, property damage, or death.
ATTENTION INSTALLER – This manual contains important information about the installation,
operation and safe use of this product. This information should be given to the owner/operator
of this equipment.
Installation and Operation Manual
