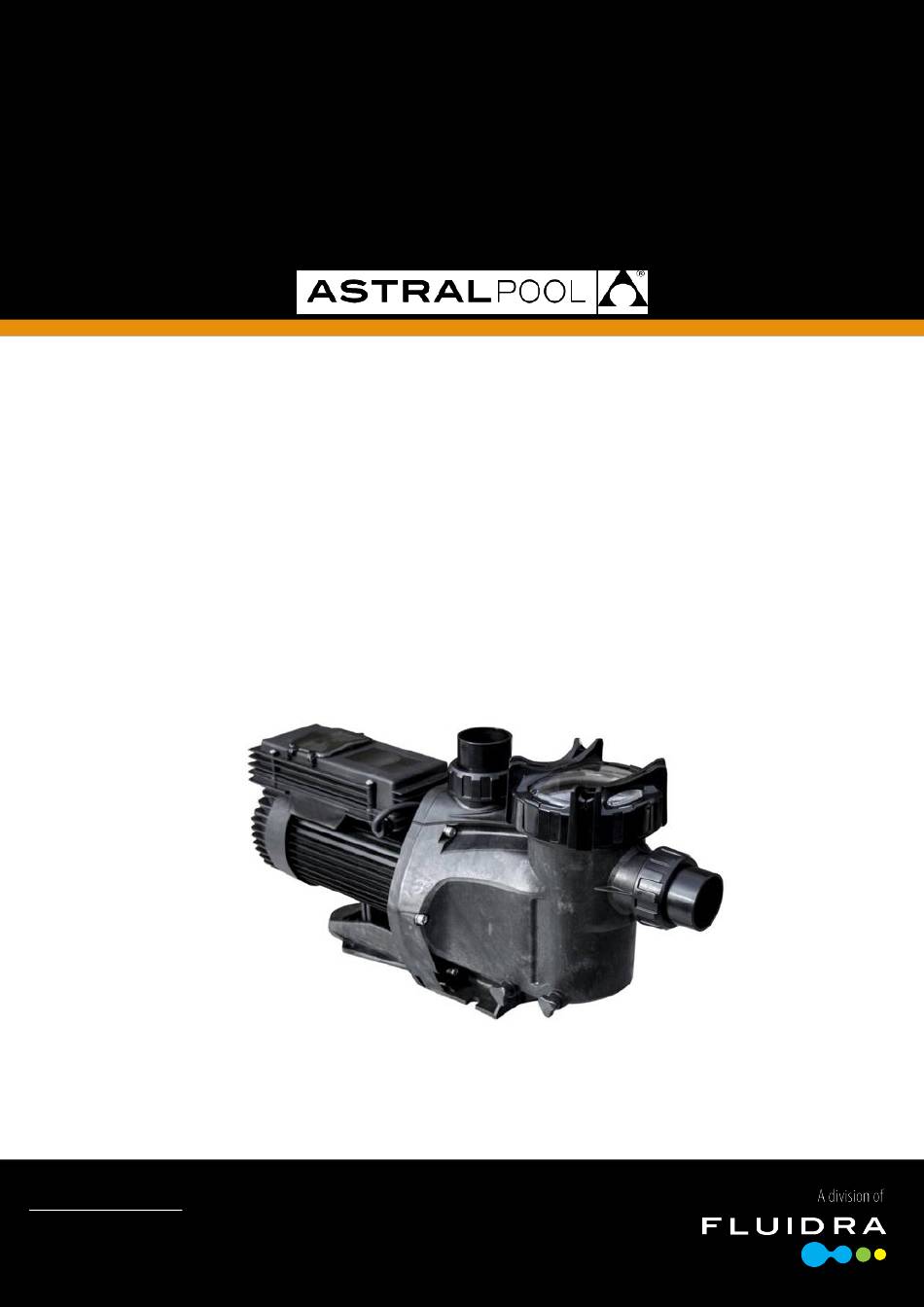

INSTALLATION AND OPERATING INSTRUCTIONS
I
INSTALLATION AND OPERATING INSTRUCTIONS
eCombi EE2
Viron Cartridge Filter
Pool and Spa Pumps
Bolero ND Cleaner
INSTALLATION AND
OPERATING INSTRUCTIONS
eCombi EE2
www.astralpool.com.au
sales@astralpool.com.au
11/08/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eCombi EE2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Astralpool eCombi EE2

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS eCombi EE2 Viron Cartridge Filter Pool and Spa Pumps Bolero ND Cleaner INSTALLATION AND OPERATING INSTRUCTIONS eCombi EE2 www.astralpool.com.au sales@astralpool.com.au 11/08/2020...
  • Page 2 THE SWIMMING POOL OR SPA. ENSURE PUMP IS INSTALLED, SET AND COMMISSIONED BY AN AUTHORISED ASTRAL POOL DEALER. TO AVOID A SAFETY HAZARD, THE SUPPLY CORD IF DAMAGED, MUST ONLY BE REPLACED BY ASTRAL POOL, OR IT’S SERVICE AGENT OR A SUITABLE QUALIFIED PERSON. INST 347 eCombi EE2 Pool & Spa Pump V08.20...

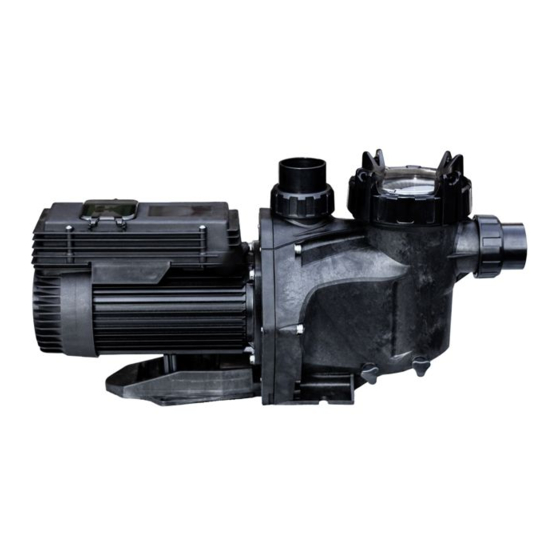

  • Page 3 GENERAL The eCombi EE2 Pump is a unique 2 speed motor combined with an energy efficient pump wet end. When installed and plumbed correctly, the eCombi EE2 will significantly reduce operating costs, lower noise levels and reduce greenhouse emissions. Model...
  • Page 4 24 hours to dry before starting pump. DO NOT USE “GREEN” glue on barrel unions. This can cause damage to the ABS material used to manufacture the unions. D. Install isolation valves before the pump section and after equipment, if the pump is below the water level of the pool. INST 347 eCombi EE2 Pool & Spa Pump V08.20...
  • Page 5 The eCombi EE2 will automatically start on High for the first 5 minutes to assist in priming and substantially fill the hair and lint pot with water. After 5 minutes the pump will revert to the last speed it was set at before it was turned off.
  • Page 6 Some Tips: The eCombi EE2 will provide around 29,000 litres per hour on high speed, depending on pipework, valves, filter size and other equipment installed on your pool. On low speed the flow rate is approximately 14,000 litres per hour, therefore, operating the pump 4 hours per day will provide a 56,000 litre pool one complete turn over.
  • Page 7 USE WITH SUCTION CLEANERS When connecting a suction cleaner to the eCombi EE2, it is essential that full prime is achieved on the pump prior to connecting the cleaner hose. During operation at low speeds, the pump may only operate with partial prime in the hair and lint pot chamber.
  • Page 8 Serial No.: ____________________________ Inst date.: ____________________________ Installer.: ____________________________ Fluidra Group Australia Pty Ltd 219 Woodpark Road. INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS Smithfield,N.S.W. 2164 ABN 087 002 941 695 INST 347 eCombi EE2 Pool & Spa Pump V08.20...
