Tempest i5000PX
S5380
Version 1.0
Copyright
Copyright © TYAN Computer Corporation, 2006. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Tempest i5000PX are trademarks of TYAN Computer Corporation.
Intel, Blackford, and combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
1

Advertisement

Table of Contents
loading

Related Manuals for TYAN TEMPEST I5000PX

Summary of Contents for TYAN TEMPEST I5000PX

  • Page 1 In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.

  • Page 2: Table Of Contents

    Table of Contents Check the box contents! Chapter 1: Introduction Congratulations…………………………………………………………… Hardware Specifications………………………………………………… Chapter 2: Board Installation Board Image……………………………………………………………… Block Diagram……………………………………………………………. Board Parts, Jumpers and Connectors………………………………... 10 Tips on Installing Motherboard in Chassis…………………………….. 20 Installing the Processor(s)………………………………....... 21 Installing the Memory……………………………………………………. Attaching Drive Cables…………………………………………………..

  • Page 3: Check The Box Contents

    1 x COM Port Cable 1 x S5380 user’s manual 1 x S5380 Quick Reference guide 1 x TYAN driver CD 1 x I/O shield 2 x CPU Back Plane If any of these items are missing, please contact your vendor/dealer for...

  • Page 5: Chapter 1: Introduction

    S5380 offers exceptional performance and versatile solution for your server platform. Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades. 1.2 - Hardware Specifications...
  • Page 6 •Two (x2) 64/133 PCI-X slots BIOS •PhoenixBIOS on 8Mbit Flash - One inversed PCIe x4 slot (w/ x8 signals from ESB2) for risers, in- •Support APM 1.2, ACPI 1.0b lined with the 1 PCI-X slot • Two (x2) PCI Express x16 slot •Serial Console Redirect •PXE via Ethernet, USB device (w/ x8 signals from Blackford...

  • Page 7: Chapter 2: Board Installation

    Chapter 2: Board Installation You are now ready to install your motherboard. The mounting hole pattern of the Tempest i5000PX S5380 matches the SSI CEB v1.01 specification. Before continuing with installation, confirm that your chassis supports an SSI CEB v1.01 motherboard.

  • Page 8: Board Image

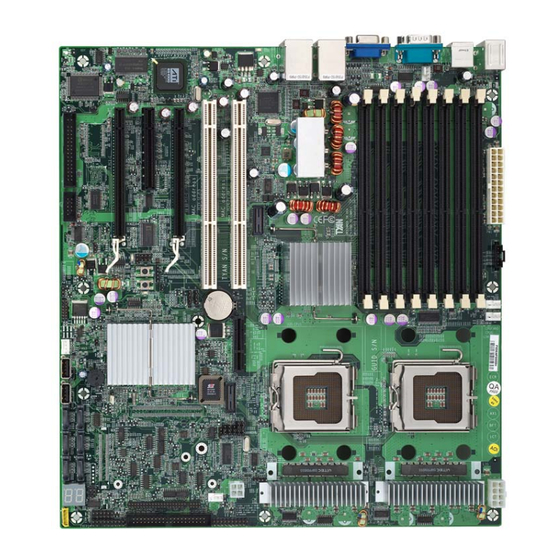

    2.1- Board Image This picture is representative of the latest board revision available at the time of publishing. The board you receive may or may not look exactly like the above picture.

  • Page 9: Block Diagram

    2.2 - Block Diagram Tempest i5000PX S5380 Block Diagram...

  • Page 10: Board Parts, Jumpers And Connectors

    2.3 - Board Parts, Jumpers and Connectors This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram.
  • Page 11 Jumper Legend OPEN - Jumper OFF, without jumper cover CLOSED – Jumper ON, with jumper cover Jumper/Connector Function Onboard VGA Jumper - Open: Enable VGA (Default) - Closed: Disable VGA COM2 Header Fan Connector (for barebone use only) IPMB Connector Chassis Fan Connectors J7/J44/J68 J7: FAN1, J44: FAN3, J68: FAN2...
  • Page 12 USB1 USB2...
  • Page 13 USB1/USB2: Front Panel USB2.0 Connector Pin 1 USB PWR Pin 2 USB_N_FB Pin 3 USB_P_FB Pin 4 Use these headers to connect to the USB devices. J8: Onboard VGA Jumper Enable the onboard ATI VGA function. Disable the onboard ATI VGA function J28: IPMB Connector Pin 1 IPMB...
  • Page 15 Reconnect power supply to AC source Power on system J25: COM2 Header Use these pin definitions to connect a port to COM2. *TYAN does not provide cable for this header. It is designed for OEM use only. Signal Signal J74: The 2...
  • Page 16 J27: FAN Connector (for barebone use only) Use these pin definitions to connect to the barebone fans. Signal Signal CPU0-TACH SYS4-TACH CPU1-TACH SYS5-TACH FAN3-TACH SYS6-TACH FAN1-TACH SYS7-TACH FAN2-TACH SYS8-TACH HMO- FANPWM1...
  • Page 17 This header is reserved for barebone use. J79: SMDC Connector The SMDC connector allows you to connect with Tyan Server Management Daughter Card (SMDC). The S5380 supports Tyan SMDC M3291. See Appendix I for more information on SMDC.
  • Page 18 SATA 0/1/2/3/4/5...
  • Page 19 J39/J40: CPU0/CPU1 Fan Connectors Use this header to connect the processor cooling G ND fan to your motherboard to keep the system at optimum performance levels. Tac homet er P WM J39: CPUFAN1; J40: CPUFAN0 J68: Chassis Fan Connector Use this header to connect the chassis cooling G ND fan to your motherboard to keep the system at optimum performance levels.

  • Page 20: Tips On Installing Motherboard In Chassis

    Some chassis’ include plastic studs instead of metal. Although the plastic studs are usable, TYAN recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look...

  • Page 21: Installing The Processor(S)

    2.5 - Installing the Processor(s) Your Tempest i5000PX S5380 supports the latest processor technologies from Intel. Check the TYAN website for latest processor support: http://www.tyan.com Processor Installation The processor should be installed carefully. Make sure you are wearing an antistatic strap and handle the processor as little as possible.
  • Page 22 Lift the metal cover to expose the socket interior and place the socket in as shown. Pin 1 Close the cover and return the locking lever to its locked position. Repeat this procedure for the second processor socket. Turn the board upside down and insert the heat sink spring mechanism as shown.
  • Page 23 Turn the board the right way up again and screw the heat sink into place. Repeat this procedure for the second processor. Cooling Fan Installation After you have installed the processor, the heatsink should be installed to ensure that the processor runs efficiently and does not overheat. Use the heatsink supplied for best results.

  • Page 24: Installing The Memory

    Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Only DDR2-667/533 Fully Buffer DIMM (FB DIMM) modules are required. Check the TYAN Web site at: www.tyan.com for details of the type of memory recommended for your motherboard.
  • Page 25 Memory Installation Procedure Follow these instructions to install memory modules into the Tempest i5000PX S5380. Press the locking levers in the direction shown in the following illustration. Align the memory module with the socket. The memory module is keyed to fit only one way in the socket.

  • Page 26: Attaching Drive Cables

    TIP: Pin 1 on the IDE cable (usually designated by a colored wire) faces the drive’s power connector. Attaching Serial ATA Cables The Tempest i5000PX S5380 is also equipped with 6 Serial ATA (SATA) channels. Connections for these drives are also very simple.
  • Page 27 Tyan has supplied two SATA cables and one SATA power adapter. If you are in need of other cables or power adapters please contact your place of purchase. The following pictures illustrate how to connect an SATA drive 1.SATA drive cable connection 2.

  • Page 28: Installing Add-In Cards

    2.8 - Installing Add-In Cards Before installing add-in cards, it’s helpful to know if they are fully compatible with your motherboard. For this reason, we’ve provided the diagrams below, showing the slots that appear on your motherboard. PC I-X (64 /133) PC I Expr es s (x4) PC I Expr es s (x16 ) PC I Expr es s (x8)

  • Page 29: Connecting External Devices

    2.9 - Connecting External Devices The following diagrams will detail the rear port stack for this S5380 motherboard: LAN Port (10/100/1000) x2 + PS/2 USB x 4 Mouse/Keyboard USB x 2 VGA Port Serial Port NOTE: Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation.

  • Page 30: Installing The Power Supply

    2.10 - Installing the Power Supply There are three power connectors on your Tempest i5000PX S5380. The Tempest i5000PX S5380 requires that you have an EPS12V power supply that has a 24-pin, an 8-pin and a 4-pin power connectors. Except the 24-pin and 8- pin power supplies, you also need to connect a 4-pin power supply for the power of South Bridge.

  • Page 31: Chapter 3: Bios Setup

    Chapter 3: BIOS Setup 3.1. About the BIOS The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. The BIOS determines what a computer can do without accessing programs from a disk. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 32 Chipset section unless you are absolutely sure of what you are doing. The Chipset defaults have been carefully chosen either by TYAN or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 33: Bios Main Menu

    3.2 BIOS Main Menu In this section, you can alter general features such as the date and time, as well as access to the IDE configuration options. Note that the options listed below are for options that can directly be changed within the Main Setup screen. PhoenixBIOS Setup Utility Main Advanced...
  • Page 34 Legacy Diskette A Defines the floppy drive type NONE / 360K, 5.25 in / 1.2 M, 5.25 in / 720 K, 3.5 in / 1.44 M, 3.5 in / 2.88 M, 3.5 in System Memory This display allows you to change the amount of system memory present on the system.
  • Page 35 3.2.1 IDE Primary/Secondary Master/Slave Setup Computer detects IDE drive type from drive C to drive F. Press Enter on any of the Primary/Master, Primary/Slave, Secondary/Master, Secondary/Slave options to view advanced details of the corresponding drive. The system displays advanced details like the number of heads/cylinders/sectors on the detected disk and the maximum storage capacity of the disk.
  • Page 36 large mode, or it may be done using a different algorithm called LBA-assist translation. The translated geometry is still what is presented to the operating system for use in Int 13h calls. The difference between LBA and ECHS is that when using ECHS the BIOS translates the parameters used by these calls from the translated geometry to the drive's logical geometry.
  • Page 37 3.2.2 Memory Cache This setting allows you to tweak the various cache settings for optimal performance of your system. Press Enter to display the various cache settings. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Memory Cache Item Specific Help Controls caching of [Write Protect] system BIOS area.
  • Page 38 As such, it would be a waste of L2 cache bandwidth to cache the video BIOS instead of data that are more critical to the system's performance. In addition, if any program writes into this memory area, it will result in a system crash. So, it is recommended that you write protect this area for optimal system performance.
  • Page 39 3.2.3 Boot Features This option allows setting boot parameters. Press Enter to view the Boot Features screen. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Boot Features Item Specific Help [Disabled] Floppy check: [Enabled] Summery screen: [Enabled] Boot-time Diagnostic Screen: [Enabled] QuickBoot Mode: [Just zero it]...
  • Page 40 Quick Boot Mode This BIOS feature allows you to decrease the time it takes to boot up the computer by shortening or skipping certain standard booting procedures. If enabled, the BIOS will shorten the booting process by skipping some tests and shortening others.

  • Page 41: Advanced Menu

    3.3 Advanced Menu This section facilitates configuring advanced BIOS options for your system. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help Installed O/S: [Win2K/KP] Reset Configuration Data: [No] [DOS] Large Disk Access Mode: Advanced Chipset Control Advanced Processor Options I/O Device Configuration Hardware Monitor...
  • Page 42 Please note that the BIOS will automatically reset it to the default setting of No after reconfiguring the new ESCD. So, there is no need for you to manually disable this feature after rebooting. Yes / No Large Disk Access Mode This option determines whether a hard drive with more than 1024 cylinders, more than 16 heads and or more than 64 tracks per sector is present on the system.
  • Page 43 3.3.1 Advanced Chipset Control This section allows you to fine tune the chipset configuration. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Advanced Chipset Control Item Specific Help ICH USB Control Sub-Menu LAN Control Sub-Menu [Enabled] Crystal Beach Configure Enable [Single bit] SERR signal condition [256 MB ]...
  • Page 44 Memory Branch Mode This option is used to select the type of memory operation mode. Interleave / Sequential / Mirror Branch 0/1 Rank Sparing This option is used to enable/disable Branch 0/1 rank/DIMM sparing feature. Enabled / Disabled Enhanced x8 Detection This feature is used to enable/disable enhanced x8 DRAM UC error detection.
  • Page 45 3.3.1.1 ICH USB Control Sub-Menu These items are used to control the various ICH USB devices. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit ICH USB Control Sub Menu Item Specific Help USB – Device 29, All Function: [Enabled] [Enabled] USB –...
  • Page 46 3.3.1.2 Lan Control Sub-Menu These items allow you to control the LAN devices. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit LAN Control Sub Menu Item Specific Help LAN1 (Gilgal) [Enabled] [Disabled] Option ROM Scan [Enabled] LAN2 (Gilgal) [Disabled] Option ROM Scan ↑↓...
  • Page 47 3.3.2 Advanced Processor Options This section allows you to fine-tune the processor options. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Advanced Processor Options Item Specific Help Hyperthreading: [Enabled] [Per Core] Numbers of Step Grant [Disabled] Intel® Virtualization Technology [Enabled] Machine Checking [Enabled]...
  • Page 48 Intel® Virtualization Technology This feature is used to configure the Intel Virtualization technology. Disabled / Enabled Machine Checking This feature is used to enable the function of machine checking. Enabled / Disabled C1 Enhanced Mode This feature is used to enable the C1 Enhanced mode. Enabled / Disabled Thermal Management 2 This feature is used to enable the function of Thermal Management 2.
  • Page 49 3.3.3 I/O Device Configuration This setting allows you to configure I/O devices. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit I/O Device Configuration Item Specific Help [Enabled] Floppy disk controller [Enabled] Serial port A: [3F8] Base I/O address: [IRQ4] Interrupt: [Enabled] Serial port B:...
  • Page 50 3.3.4 Hardware Monitor Configuration This displays critical system parameters like CPU speed, fan speeds, voltage levels and CPU temperature. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Hardware Monitor Item Specific Help Voltage Monitoring Cpu0 Fan Cpu1 Fan Fan1 Fan2 Fan3 Cpu0 Temp.
  • Page 51 3.3.4.1 Voltage Monitoring Sub-Menu PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Voltage Monitoring Item Specific Help 3.3Vsb (7468) V+12 (W627) = V-12 (W627) = V+5 (W627) = VcorA W627) = VcorB (W627) = VCC (W627) = ↑↓ Help Select Item Change Values Setup Defaults...
  • Page 52 3.3.5 DMI Event Logging PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit DMI Event Logging Item Specific Help Valid Event log validity Space Available Event log capacity [Enter] View DIM event log [Enabled] Event Logging [Enabled] ECC Event Logging [Enter] Mark DMI events as read [No]...
  • Page 53 3.3.6 Console Redirection PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Console Redirection Item Specific Help [Disabled] Com Port Address [19.2K] Baud Rate [VT100] Console Type [None] Flow Control [Direct] Console connection: [Off] Continue C.R. after POST: ↑↓ Help Select Item Change Values Setup Defaults...

  • Page 54: Security Menu

    3.4 Security These settings allow you to configure the security options for your system. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help Supervisor Password Is: User Password Is: [Enter] Set Supervisor Password [Enter] Set User Password [Disabled] Password on boot: ↑↓...

  • Page 55: Power Menu

    3.5 Power These settings allow you to configure the power options for your system. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help ACPI Sleep Mode [S1/S3] [Off] Resume on Time [xx:xx:xx] Resume Time [No] Chassis Intrusion Detect [Stay Off] After Power Failure ↑↓...

  • Page 56: Boot Menu

    3.6 Boot Menu Use this screen to select options for the Boot Settings Configuration. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help 1: Legacy Floppy Drives Keys used to view or configure devices: <Enter> expands or collapses devices with a + or –...

  • Page 57: Exit Menu

    3.7 Exit Menu These settings set the exit options on your system. PhoenixBIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help Exit Saving Changes Exit system Setup and Exit Discarding Changes save your changes to Load Setup Defaults CMOS.
  • Page 58 NOTE...

  • Page 59: Chapter 4: Diagnostics

    The most common type of error is a memory error. Before contacting your vendor or TYAN Technical Support, be sure that you note as much as you can about the beep code length and order that you experience. Also, be ready with information regarding add-in cards, drives and O/S to speed the support process and come to a quicker solution.

  • Page 60: Bios Post Code

    4.3 - BIOS Post Code Code Beeps / Description Code Beeps / Description Verify Real Mode Test CPU bus-clock frequency Disable Non-Maskable Initialize Phoenix Dispatch Interrupt (NMI) Manager Get CPU type Warm start shut down Initialize system hardware Shadow system BIOS ROM Initialize chipset with initial Autosize cache POST values...
  • Page 61 system BIOS shadow caches 1-4-1-1. RAM failure on Setup System Management data bits of high byte of Mode (SMM) area memory bus Display external L2 cache Check key lock size Load custom defaults Initialize Typematic rate (optional) Display shadow-area Erase F2 prompt message Display possible high Scan for F2 key stroke...
  • Page 62 Fixup Multi Processor table BIOS Boot Block 1-2. Search for option BIOS Boot Block ROMs. Check for SMART Drive Initialize the CPU (optional) Shadow option ROMs Initialize system timer Set up Power Management Initialize system I/O Initialize security engine Check force recovery boot (optional) Enable hardware interrupts Checksum BIOS ROM...

  • Page 63: Appendix I: Smdc Information

    It enables any IT Manager by providing multi-interfaces to access the hardware remotely and perform monitor, control and diagnose activities effectively. Tyan SMDC is not a peripheral card. Unlike regular peripheral card such as AGP card, Network card or SCSI card, SMDC does not require any hardware specific driver.
  • Page 64 Features of Tyan Server Management Monitor various system components remotely - such as fans, processor temperature, and more Remote power on and power off Console redirect -the ability to view system remotely Alert and error actions -such as audible beep, e-mail, power down and reboot...

  • Page 65: Appendix Ii: How To Make A Driver Diskette

    Appendix II: How to Make a Driver Diskette Follow the steps below to make a driver diskette from the TYAN driver CD provided. Start the system and insert the TYAN CD into the CD-ROM drive to boot from CD. You will see the following menu. Then press [1] and [Enter] to boot the system to Tyan diskette maker.
  • Page 66 Follow the instruction on menu to insert a diskette and press [ENTER]. Please insert a formatted diskette into A:/ and press [ENTER] Writing image to drive A: Track: 36 Hoad: 8 Sector: 1 Using "ESC" key to quit the Tyan diskette maker. The system will automatically restart.

  • Page 67: Glossary

    Glossary ACPI (Advanced Configuration and Power Interface): a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure. AGP (Accelerated Graphics Port): a PCI-based interface which was designed specifically for demands of 3D graphics applications.
  • Page 68 Bus: a data pathway. The term is used especially to refer to the connection between the processor and system memory, and between the processor and PCI or ISA local buses. Bus mastering: allows peripheral devices and IDEs to access the system memory without going through the CPU (similar to DMA channels).
  • Page 69 EEPROM (Electrically Erasable Programmable ROM): also called Flash BIOS, is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new chip. TYAN’s BIOS updates can be found at http://www.tyan.com EMRL: Embedded RAID Logic.
  • Page 70 IDE (Integrated Device/Drive Electronics): a simple, self-contained HDD interface. It can handle drives up to 8.4 GB in size. Almost all IDEs sold now are in fact Enhanced IDEs (EIDEs), with maximum capacity determined by the hardware controller. IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE. I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, keyboard, etc.) Initial Program Load (IPL): a feature built into BBS-compliant devices, describing...
  • Page 71 PCI-to-PCI bridge: allows you to connect multiple PCI devices onto one PCI slot. Pipeline burst SRAM: a type of RAM that can maintain it’s data as long as power is provided to the memory chips. In this configuration, SRAM requests are pipelined, which means that larger packets of data are sent to the memory at one time, and acted upon quickly.
  • Page 72 RAM (Random Access Memory): technically refers to a type of memory where any byte can be accessed without touching the adjacent data, is often used to refer to the system’s main memory. This memory is available to any program running on the computer.
  • Page 73 UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without proper UltraDMA controller, your system cannot take advantage of higher data transfer rates of the new UltraDMA/UltraATA hard drives. USB (Universal Serial Bus): a versatile port. This one port type can function as a serial, parallel, mouse, keyboard or joystick port.

  • Page 74: Technical Support

    Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you.
  • Page 75 Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation.
