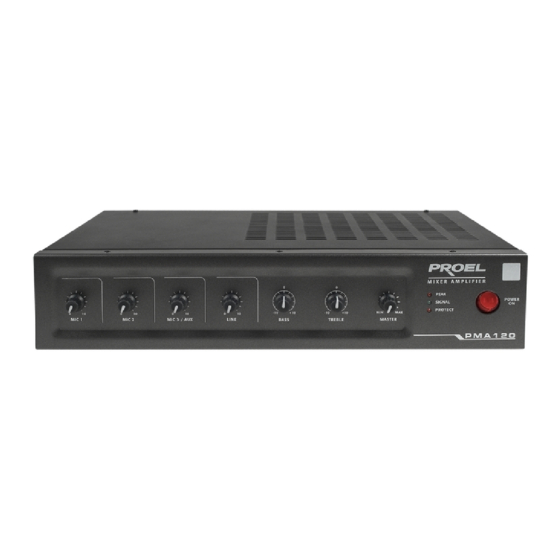

AMPLIFICATORE PUBLIC ADDRESS
PUBLIC ADDRESS AMPLIFIER
ETAPA DE POTENCIA PUBLIC ADDRESS
P M A 1 2 0
M I X E R A M P L I F I E R
M A N U A L E D ' U S O • U S E R ' S M A N U A L • M A N U A L D E L U S U A R I O
w w w. p r o e l g r o u p . c o m
M A D E I N I TA LY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA 120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROEL PMA 120

Summary of Contents for PROEL PMA 120

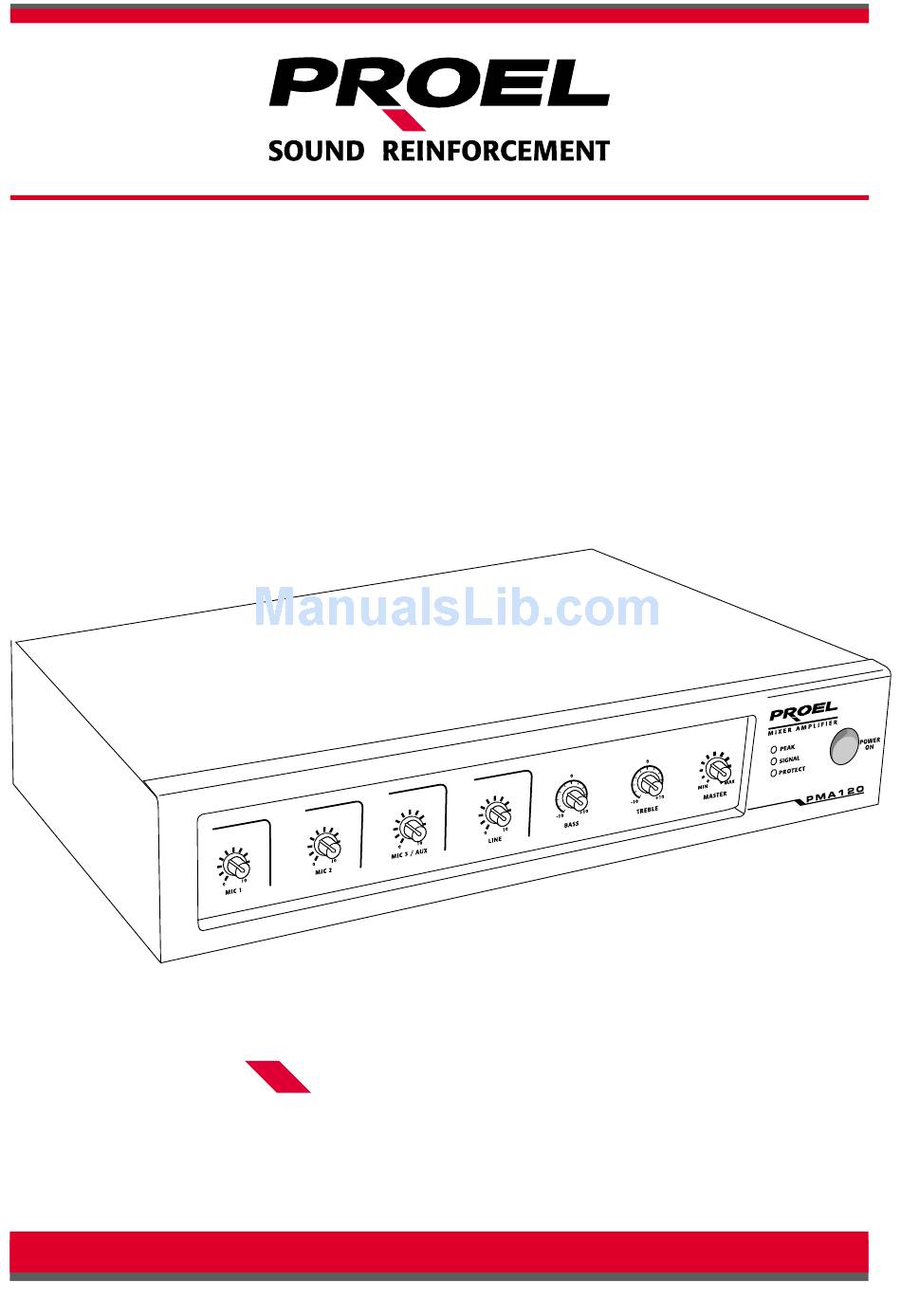

  • Page 1 AMPLIFICATORE PUBLIC ADDRESS PUBLIC ADDRESS AMPLIFIER ETAPA DE POTENCIA PUBLIC ADDRESS P M A 1 2 0 M I X E R A M P L I F I E R M A N U A L E D ’ U S O • U S E R ’ S M A N U A L • M A N U A L D E L U S U A R I O w w w.

  • Page 2: Table Of Contents

    INDICE PMA120 INDEX INDICE INDICE INDEX INDICE Italiano English Español AVVERTENZE Pag. 3 SAFETY AND PRECAUTIONS Pag. 3 ADVERTENCIAS DE SEGURIDAD Pag. 3 …………………………………… …………… …… INFORMAZIONI GENERALI » GENERAL INFORMATION » INFORMACIONES GENERALES » …………… ……………… ……… PANNELLO FRONTALE »...

  • Page 3: Avvertenze

    Non intervenire sul prodotto. No intervengan en el producto. Any other servicing should be done by a Rivolgersi a un centro di assistenza autoriz- Dirígense a un Centro Asistencia Autorizado qualified technician or by PROEL Service zato Proel. Department. Proel.

  • Page 4: Informazioni Generali

    Guardar ballo completo per permetterne l’ispezione. your dealer. entonces el embalaje completo para permitir Proel declina ogni responsabilità per danni Then save the complete packing for inspec- su inspección. causati dal trasporto. tion. Proel declines every responsibility for Proel declina de cualquier responsabilidad damage caused by transport.
  • Page 5 Proel SpA constata tramite verifica sui resi la Proel SpA will verify the validity of the gua- o manipulación. difettosità dichiarata, correlata all’appro- rantee claim through examination of the Proel SpA comprueba la anomalía declarada...

  • Page 6: Pannello Frontale

    PANNELLO FRONTALE PMA120 FRONT PANEL PANEL DELANTERO PANNELLO FRONTALE FRONT PANEL PANEL DELANTERO Italiano English Español INTERRUTTORE POWER SWITCH INTERRUPTOR Interruttore luminoso di accensione e spe- Amplifier’s ON/OFF luminous switch. If Interruptor luminoso de encendido y apa- gnimento dell’amplificatore. Se l’interrut- switch is set to ON, but is not lit, please gado de la etapa de potencia.

  • Page 7: Pannello Posteriore

    PANNELLO POSTERIORE PMA120 REAR PANEL PANEL TRASERO MAINS AC PRIORITY +21V MIC 3 / MIC 2 PHANTOM MIC 1 100V + 24V - SLAVE LINE LINE - GND MAINS DC OUTPUT FUSE PANNELLO POSTERIORE REAR PANEL PANEL TRASERO Italiano English Español PRESA DI ALIMENTAZIONE POWER SUPPLY SOCKET...
  • Page 8 PANNELLO POSTERIORE PMA120 REAR PANEL PANEL TRASERO SELETTORE PRIORITY PRIORITY SELECTOR SELECTOR PRIORITY Selettore per attivare la funzione “priority” Selector to enable “priority” function on Selector para activar la función “priority” su MIC1. Quando il selettore è su ON, i livel- MIC1.

  • Page 9: Connettori

    CONNETTORI - SPECIFICHE TECNICHE PMA120 CONNECTORS - TECHNICAL DATA CONECTORES - ESPECIFICACIONES TECNICAS CONNETTORI CONNECTORS CONECTORES Italiano English Español XLR balanced MIC1 input JACK unbalanced MIC2, MIC3/AUX inputs RCA-pin unbalanced LINE IN input; LINE OUT, SLAVE OUT outputs SPECIFICHE TECNICHE TECHNICAL DATA ESPECIFICATIONES TECNICAS Italiano...

  • Page 10: Esempi Di Configurazione

    ESEMPI DI CONFIGURAZIONE PMA120 CONFIGURATION EXAMPLE EJEMPLOS DE CONFIGURACION 8xSPARK35T MAINS AC PRIORITY +21V MIC 3 / MIC 2 PHANTOM MIC 1 100V + 24V - SLAVE LINE LINE - GND MAINS DC OUTPUT FUSE 4xSPARK50T MAINS AC PRIORITY +21V MIC 3 / MIC 2 PHANTOM...
  • Page 11 w w w . p r o e l g r o u p . c o m is a registered trade mark Tutte le specifiche possono essere variate senza alcuna notifica. Design and specifications subject to change without notice. Todas las especificaciones están sujetas a cambio sin previo aviso.
  • Page 12 E-mail: proel.france@wanadoo.fr E-mail: info@basvandenbroek.com E-mail: info@proelint.co.uk www.basvandenbroek.com www.proelint.co.uk PROELUSA PRODUTOS MUSICAIS LDA PROEL KOREA CO. LTD. PROEL USA Inc. Quinta Casal Raposa-Armazém D 176-5 Youngcheon-Ri Okcheon-Meon 945 B Pendale Alto da Venda Nova Yangpoung-Kun Kyunggi-Do – SOUTH KOREA El Paso TX 79907 - USA 2305 - 302 Casais Tomar PORTUGAL Tel.: +82 2 3442 7098...
