Page 1

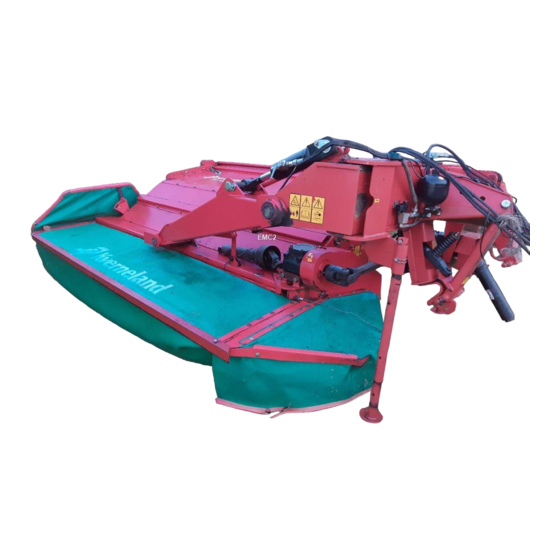

3124 - 3128 - 3132 Operator’s Manual Date of issue 10/2004 Date of printing 10/2004 Language Valid as from serial No. 389.265 Reference No. 31.031.503 Index 114-10...
Page 2
Copyright belongs to Kverneland Group Kerteminde AS, Denmark. Copying, conversion into other media, translation or use of extracts or parts of this document is not permitted, unless Kverneland has allowed this in writing. All rights to this product are reserved. The contents of this...
Page 3
&RQWHQWV Contents 3UHIDFH 2SWLRQDO HTXLSPHQW Target group of the operator’s manual Spreading equipment Meaning of the symbols High cut skids Throwing wings and special knives 6DIHW\ Lighting kit General safety instructions )DXOW DQDO\VLV Supplementary safety instructions Safety symbols :DUUDQW\ Meaning of the symbols...
Page 4
3UHIDFH Preface 7DUJHW JURXS RI This operator’s manual is intended for professional farmers and per- sons who are qualified for farm work and familiar with the assembly of WKH RSHUDWRU·V agricultural equipment. PDQXDO )RU \RXU RZQ VDIHW\ Read the operator’s manual thoroughly before putting the machine in- to service or assembling the machine.
Page 5
6DIHW\ $Q\ RSHUDWRU VHUYLFH PDQ DQG RZQHU must be familiar with the Safety warning instructions for the machine in this manual before operations commence. Always work carefully with agricultural machinery. Read through and observe the safety instructions in this manual. Safety is your respon- sibilitity.
Page 6
6DIHW\ 8VH SHUVRQDO SURWHFWLRQ GHYLFHV Do not wear loose clothing which might catch in any of the moving parts. In dusty conditions a suitable mask to EN 149 must be used. Take care of excessive sound level. Certain tractor/implement combi- nations, dependant on operating conditions, may generate a noise level in excess of 85 dB at the operator’s ear, even in a ’Q’...
Page 7
6DIHW\ 6DIHW\ JXDUGV Make sure that $// *8$5'6 are in good order and fitted correctly. 'R QRW DWWHPSW WR VWDUW WKH PDFKLQH before ensuring this. 3D\ SDUWLFXODU DWWHQWLRQ WR WKH SODVWLF JXDUGV RI WKH 372 VKDIW ,I GDPDJHG WKH\ PXVW EH UHSODFHG The chain locks of the guards 0867 always be fitted on a suitable place on the tractor and the ma- chine to prevent the outer plastic guards turning around.
Page 8
6DIHW\ /LJKWLQJ It is the responsibility of the owner/operator to provide correct lamps and reflectors on the machine, when it is being transported on public roads during lighting-up time. Observe the local laws. 95-012 fr 6DIHW\ HTXLSPHQW Always carry first aid equipment on the tractor. Also observe the local legislation concerning fire extinguishers.
Page 9
6DIHW\ 6XSSOHPHQWDU\ VDIHW\ LQVWUXFWLRQV The machine is equipped with :$51,1* decals. If the decals are damaged they must be replaced, - reference number for a complete set of decals is 56.863.000. 95-093 fr 95-094 fr 6DIHW\ V\PEROV The machine is equipped with decals serving your safety. The decals must not be removed.
Page 10
6DIHW\ 0HDQLQJ RI WKH V\PEROV :$51,1* Your body could be crused! Do not work under the machine unless it has been safely supported. The tractor engine must be stopped, the ignition key removed and the hand brake applied. :$51,1* Your body could be drawn into the P.T.O. shaft! Guard must not be re- moved or opened before the machine has stopped rotating.
Page 11
6DIHW\ :$51,1* Your body could be drawn into the V-belt drive! Guards must never be removed or opened before the machine has stopped rotating. The tractor engine must be stopped, the ignition key removed and the hand brake applied. :$51,1* Danger of stone throwing! Keep a safe distance from the machine.
Page 12
Make sure that crane straps are securely fastened before lifting. OLIW Take great care, - no persons are allowed under or near the machine when it is being lifted. 0RGHO 3124 3128 1070 3132 1190 Fasten the straps as shown and the machine can be lifted.
Page 13
6DIHW\ 1HZ PDFKLQH EH FDUHIXO 5HDG WKH RSHUDWRU¶V PDQXDO It is important to take great care when a new machine is started up. Incorrect assembly, misoperation etc. can result in expensive repairs and loss of profit. 7DDUXS
V factory guarantee is annulled if the instruc- tions in this manual are not adhered to.
Page 14
6DIHW\ Be very careful when the PTO shaft is fitted. A too short or too long PTO shaft can cause great damage to the machine and tractor. Over- run clutch must be mounted on the axle journal of the machine. If the PTO shafts of the machine DUH QRLV\ RU YLEUDWH, the fitting in- structions must be gone through again.
Page 16
7HFKQLFDO GDWD 7HFKQLFDO GDWD RI WKH PDFKLQH 8QLWV 0RGHO 0RGHO 0RGHO Weight 1070 1190 P.T.O. (power take-off) R.P.M. Power requirement, PLQLPXP kW/HP 50/70 55/75 65/90 P.T.O. shaft with friction clutch and overrun Standard Standard Standard Number of discs Pcs.
Page 17
7HFKQLFDO GDWD 6XUYH\ Hydraulic cylinder for Hydraulic cylinder transport/working position for suspension Lever for condi- Spreading equip- tioning plate ment (optional) Cutterbar Bevel gear- Bevel gear Accumulator for transmission Suspension suspension transmission Power take off Link pins Link pins Support leg- Guard P.T.O.
Page 18
3UHSDUDWLRQ Preparation 3UHSDUDWLRQ RI WKH For the transport to the user, the machine has been taken down into main components. The machine must be assembled according to the PDFKLQH special assembly instructions delivered with the machine. The instructions given in the following paragraph must be followed when assembling the machine for the first time (shortening of PTO shaft etc.).
Page 19
0RXQWLQJ DWWDFKPHQW Mounting - attachment 0RXQWLQJ RI VXV The attachment of the machine to the tractor must be carried out ac- cording to the rules given. The three hitch pins of the suspension must SHQVLRQ be properly locked by means of heavy duty pins. If the machine is pulled away from the tractor, this could result in serious damage or even have fatal consequences.
Page 20
0RXQWLQJ DWWDFKPHQW Attach the machine to the tractor and lift the suspension slightly so that the support leg is clear of the ground and then raise both support legs as shown. A top link mounting as shown here will cause a non-satisfactory oper- Correct adjustment ation of the machine .
Page 21
0RXQWLQJ DWWDFKPHQW Lift the machine well clear of the ground as shown. Tighten the stabiliser chain of the tractor. Considering the weight distribution it is recommended to tighten the LH stabiliser chain of the tractor extraordinarily so that the machine is as close to the tractor as possible.
Page 22
0RXQWLQJ DWWDFKPHQW Connect the hydraulic hoses to the tractor. Open the safety valve on the hydraulic cylinder. Connect the electric cables of the machine to the 12 V electric supply on the tractor. When the machine has been connected to the 12 V electric supply, the diode in the box will light up.
Page 23
0RXQWLQJ DWWDFKPHQW By using the tractor hydraulics, turn the machine into working position. Check / adjust the length of the top link to ensure that the main profile of the suspension is vertical as shown. 372 VKDIW %HZDUH WKDW WKH SRZHU WDNHRII LV RSHUDWLQJ ZLWK WKH FRUUHFW QXP EHU RI UHYROXWLRQV It is dangerous to attach a tractor with a P.T.O.
Page 24
0RXQWLQJ DWWDFKPHQW 6KRUWHQLQJ RI 372 VKDIW When shortening the shaft, all four parts a - b - c - d must be shortened equally. After shortening, tube and shaft ends must be rounded off with a file, cleaned of swarf and greased. 79-041 fr &KHFNLQJ WKH VKDIW OHQJWK...
Page 25
7UDQVSRUW RQ SXEOLF URDGV Transport on public roads 7UDQVSRUW SRVLWLRQ Lift the machine TXLWH up by means of the hydraulic cylinder. Hereafter it is swung into transport position as shown. %H FDUHIXO Take great care - no persons are allowed to stay in the machine’s swing area.
Page 26
3UHSDUDWLRQ LQ WKH ILHOG Preparation in the field :RUNLQJ SRVLWLRQ Swing the machine out into working position by means of the hydraulic service. Lower the cutterbar to the ground.
Page 27
3UHSDUDWLRQ LQ WKH ILHOG Hereafter the suspension must be adjusted correctly. Raise/lower the suspension by means of the tractor lift arms until the arrow points to the notch as shown. Then lock the tractor lift arms with the chain. &RQGLWLRQLQJ SODWH The distance of the conditioning plate from the rotor can be set in three Pos.
Page 28
3UHSDUDWLRQ LQ WKH ILHOG 7KH DGMXVWPHQW PXVW EH DGDSWHG WR WKH W\SH RI FURS 3RV , 3RV ,, 3RV ,,, Normal grass crop Grass crop with Juicy and leafy early moderate contents crops of leaves 6XVSHQVLRQ ORFN The suspension lock will release whenever the machine hits a fixed obstruction.
Page 29
2SHUDWLRQ Operation :RUNLQJ LQ WKH ILHOG When turning on headland the single-acting hydraulic oil outlet is used to raise/lower the cutterbar. If you want to change the stubble height, do as follows: > Lower the cutterbar to the ground. > Shorten/extend the top link until the required stubble height has been achieved.
Page 30
2SHUDWLRQ $GMXVWPHQW RI JURXQG If you want to change the ground pressure, proceed as follows: SUHVVXUH /RZHU JURXQG SUHVVXUH Loosen the two bolts shown. Move the bracket down as shown. The pressure on the ground by the cutterbar will then be reduced. Raise and lower the cutterbar by means of the single-acting hydraulic cylinder.
Page 31
2SHUDWLRQ +LJKHU JURXQG SUHVVXUH Move the bracket up as shown and the ground pressure by the cutter- bar will be bigger. Then raise and lower the cutterbar by means of the single-acting hy- draulic cylinder. Then check the setting by lifting the cutting unit. The recommended weight must be approx.
Page 32
3DUNLQJ Parking 8QFRXSOLQJ It is important to carry out the uncoupling correctly to ensure that the later attachment can easily be done. Do as follows when uncoupling the machine: Convert the machine into transport position. Lower both support legs and lock them by means of pins. Remove the chain, if necessary.
Page 33
3DUNLQJ Close the safety valve on the hydraulic cylinder. Before switching off the hydraulic service, the hydraulic system of the machine must be discharged and unpressurized. Hold the single-acting hydraulic oil outlet open for approx. 10-20 se- conds. 7$.( &$5( Disconnect the hydraulic hoses and the electric supply.
Page 34
6WRUDJH Storage :LQWHU VWRUDJH When the season is over, the machine should be prepared for winter storage immediately. Start by thoroughly cleaning the machine, - then grease the machine thoroughly so that any remaining water is pressed out of the bearings. Change the oil in the cutterbar and gearbox and let the machine rotate for a few minutes.
Page 35
0DLQWHQDQFH $WWHQWLRQ Maintenance During all service operations with knives and cutting discs the tractor engine must be stopped and the hand brake applied. If the machine is in raised position, it must be securely supported. Re-tighten all knife bolts and bolts for the cutting discs on your new machine before it is started up and again after approx.
Page 36
0DLQWHQDQFH Attention ! Check daily that knife bolts and bolts for cutting discs are tightened and that cones, cutting discs and knives are undamaged. If the rotat- ing parts are unbalanced, vibrations could occur causing damage to the cutterbar. Damage of this kind annuls the factory guarantee. 5HSODFHPHQW RI If the knives are worn on one side, they can be interchanged by using NQLYHV...
Page 37
0DLQWHQDQFH &RQHV Keep the cones in the RH and LH side clean, clean them on the inside once per season. If the cones are out-of-balance, vibrations could oc- Clean cone regularly cur causing damage to the cutterbar. Clean cone regularly 9EHOWV The V-belts must be kept properly tight.
Page 38
0DLQWHQDQFH <ILQJHU RI WKH UR Check regularly that the Y-fingers are tightened to the moment stated. Worn and broken Y-fingers must be replaced immediately. Ã$ÃÃ$ Only use original spare parts, - this is for your safety to avoid unnec- essary accidents. &DUGDQ MRLQW Check the universal joint between gearbox and cutterbar 2 or 3 times per season.
Page 39
0DLQWHQDQFH 6DIHW\ JXDUGV Keep the safety guards of the P.T.O. shafts in good order and in place. This also applies for all other guards on the machine. Missing or da- maged guards for rotating parts might cause serious injury or even death.
Page 40
0DLQWHQDQFH /XEULFDWLRQ Check the oil level of gearbox and cutterbar before putting a new ma- chine into service. → »Lubricants:« Page 63. Lubricate the machine and the P.T.O. shafts. 6ZLYHO OLQN 58.237.000 (YHU\ (YHU\ 1XPEHU RI 5HFRPPHQG KRXUV GDLO\ KRXUV JUHDVH HG W\SH RI...
Page 41
0DLQWHQDQFH /LQN DW VWDELOL]HU 58.237.000 (YHU\ (YHU\ 1XPEHU RI 5HFRPPHQG KRXUV GDLO\ KRXUV JUHDVH HG W\SH RI SRLQWV JUHDVH Grafite or Mo- lybdenum based grease 6XVSHQVLRQ ORFN 58.237.000 (YHU\ (YHU\ 1XPEHU RI 5HFRP KRXUV GDLO\ KRXUV JUHDVH PHQGH W\SH SRLQWV...
Page 42
0DLQWHQDQFH 372 VKDIW 58.237.000 (YHU\ (YHU\ 1XPEHU RI 5HFRPPHQG KRXUV GDLO\ KRXUV JUHDVH HG W\SH RI SRLQWV JUHDVHO Grafite or Mo- lybdenum based grease Grease all universal joints and bearings at the protection tubes every 8-10 hours of operation. Grease profile tubes every 20 hours of operation.
Page 43
0DLQWHQDQFH 2LO FXWWHUEDU The following operations must be carried out in a safe and proper way. During all work near the cutting discs of the machine, the tractor en- gine must be stopped. Check daily the oil level in the following way: >...
Page 44
0DLQWHQDQFH 2LO DPRXW 3124 3,5 litres, for oil change approx. 3,1 litres. 3128 4,0 litres, for oil change approx. 3,6 litres. 3132 4,5 litres, for oil change approx. 4,1 litres. 2LO FKDQJH First oil change after approx. 10 hours of operation and then after ev- ery 200 hours of operation or at least once a year.
Page 45
0DLQWHQDQFH 2LO JHDUER[ DW 2LO OHYHO FXWWHUEDU Must be quite up to the plug. 2LO W\SH Check oil level here Reference No. for 5 litres of oil: KT 10.105.000 → »Lubricants:« Page 63. 2LO DPRXQW 0.5 litre. 2LO FKDQJH Change the oil for the first time after approx.
Page 46
0DLQWHQDQFH 5HSDLU SUHVFULS $WWHQWLRQ Repairs of model 3124 - 3128 - 3132 must only be made by persons WLRQV with thorough knowledge of the use of workshop equipment and by persons who are familiar with repairs of agricultural machinery in a safe and correct way.
Page 47
0DLQWHQDQFH &\OLQGHU IRU VXVSHQ VLRQ Mount a new set of sealings as shown. The sealing rings must be turned as shown. Set of sealings - spare parts for lifting cylinder, - see the spare parts list. $FFXPXODWRU K\ GUDXOLF V\VWHP When repairing or replacing the rubber bellows, the gas pressure in the accumulator must be: Accumulator...
Page 48
0DLQWHQDQFH %HYHO JHDU 530 Repair of the gearbox must only be carried by service people with thorough knowledge of such repairs. The gear backlash must be with- in the values stated. 1RWH WKH IROORZLQJ • Check of gear backlash (meshing) can only be measured on a clean and oilfree gear.
Page 49
0DLQWHQDQFH %HYHO JHDU 530 Repairs of the gearbox must only be carried out by service people with thorough knowledge of such repairs. The gear backlash must be with- in the values stated. 1RWH WKH IROORZLQJ • Check of the gear backlash (meshing) can only be done on a clean and oilfree gear.
Page 50
0DLQWHQDQFH %HYHO JHDU DW FXW WHUEDU Repairs of the gear must only be carried out by service people with thor- ough knowledge of such repairs. Gear backlash must be within the val- ues stated. 1RWH WKH IROORZLQJ • Check of gear backlash (meshing) can only be done on a clean and oilfree gear.
Page 51
0DLQWHQDQFH &XWWHUEDU %H FDUHIXO When checking or repairing the cutterbar, do not forget that it operates with a rotational speed of 3000 r.p.m. Ensure that worn bearings and gear wheels are replaced in time. Otherwise, one single damaged bearing can cause serious damage to the complete cutterbar. Use LOCTITE where stated - hardening time is approx.
Page 52
0DLQWHQDQFH 0RXQWLQJ RI FROODU EHDU Mount the new bearings in the order shown: 2.1, 2.2, etc. Before LQJ ZLWK EHDULQJV LQ WKH mounting the flange (see ill. 2.4) note the following: • 5+ DQG /+ VLGH Fill the cavity space with grease of good quality. Mount the spline in the gearwheel hub so that the flange axle is guided safely in place when it is pressed down.
Page 53
0DLQWHQDQFH 0RXQWLQJ RI FROODU EHDU When repairing collar bearings, proceed as follows: LQJ ZLWK RQH GRXEOHURZ • Lock the threaded surfaces of the bolt with /RFWLWH . Torque EDOO EHDULQJ moment must be 50 Nm. • Lock the bolt by means of lock plates. Torque moment 90 ± 3 Nm. Check that the sealings in the loose threaded pins are undamaged.
Page 54
0DLQWHQDQFH 6\QFKURQL]DWLRQ Before mounting the collar bearings, check that the collar bearing flanges are in a definite position in relation to each other. This is especially important between the 1st and 2nd disc as the discs are rotating in the same direction. This synchonization is achieved in the following way: >...
Page 55
2SWLRQDO HTXLSPHQW Optional equipment ,Q JHQHUDO DERXW RS The machines are available in several variants from the factory. See the machine price list. WLRQDO HTXLSPHQW 6SUHDGLQJ HTXLS PHQW The machine can be equipped with spreading equipment of the “flip over” type. It is recommended to remove the LH deflector plate and to open up the RH deflector plate as shown so that the tractor does not drive on the crop when the following swath is cut.
Page 56
2SWLRQDO HTXLSPHQW +LJK FXW VNLGV The machine can be equipped with 2 types of high cut skids. The skids are fixed and cannot be height adjusted. High cut skids are recommended for stony or bumby fields or for fields with molehills. The stubble height is increased by approx. 40 and 60 mm.
Page 57
)DXOW DQDO\VLV Fault analysis 3UREOHP 3RVVLEOH FDXVH 6ROOYLQJ WKH SUREOHP 6HH SDJH Machine setting changes. The tractor lift arms are slowly Mount the chain so that the lowered (leaking valve). machine suspension is kept in correct working position. The ground pressure of the Wrong adjustment of the hy- Adjust the hydraulic suspen- machine is too big.
Page 58
The warranty does not include wearing parts. UDQW\ Claims for guarantee compensation must be made via the Kverneland claim form filled in by the local Kverneland dealer from whom the ma- chine/equipment has been purchased. 1R UHVSRQVLELOLW\ IRU We are not liable for compensation due to damages which have not occurred on the machine/equipment itself.
Page 59
6FUDSSLQJ Scrapping When the machine is worn out, it must be scrapped in a correct way. The following must be observed: 0HWDO SDUWV Deliver the reusable parts to an authorized recycling plant. Larger scrapping parts must be delivered to an authorized scrap yard to be treated according to the current rules.
Page 60
To execute the relevant safety requirements according to the EU Di- rective the following standards have been taken into consideration: • EN 292-1;2 (11/1991); • EN 294 (06/1992) Kverneland Group Kerteminde AS DK - Kerteminde, 01.03.2004 Niels Erik Andersen General Manager...
Page 61
'LDJUDP Diagram Sensor Sensor 12 Volt 60 bar ø2,5 mm ø2,5 mm...
Page 63
7HFKQLFDO LQIRUPDWLRQ FRQYHUVLRQ WDEOH Technical information (conversion table) &RQYHUVLRQ WDEOH %DVLF XQLW 6, XQLW &RQYHUVLRQ ILJXUHV Length 39,4 in. = 3,3 ft. = 1,1 yrd. = 0,00062 miles (US) Area 1,2 yd = 10,8 ft = 0,00025 acre = 0,0001 ha. Volume 1 dm (1 L)
Page 64
,QGH[ Index Accumulator Maintenance Adjustment of ground pressure Cones Metal parts Mounting of collar bearing Mounting of suspension Bevel gear 1000 RPM. Bevel gear 540 RPM. Bevel gear at cutterbar New machine - be careful & Cardan joint Checking the shaft length Oil - cutterbar Collar bearing Oil - gearbox at cutterbar...
Page 65
,QGH[ Transport position Uncoupling V-belts Working position < Y-finger of the rotor...
