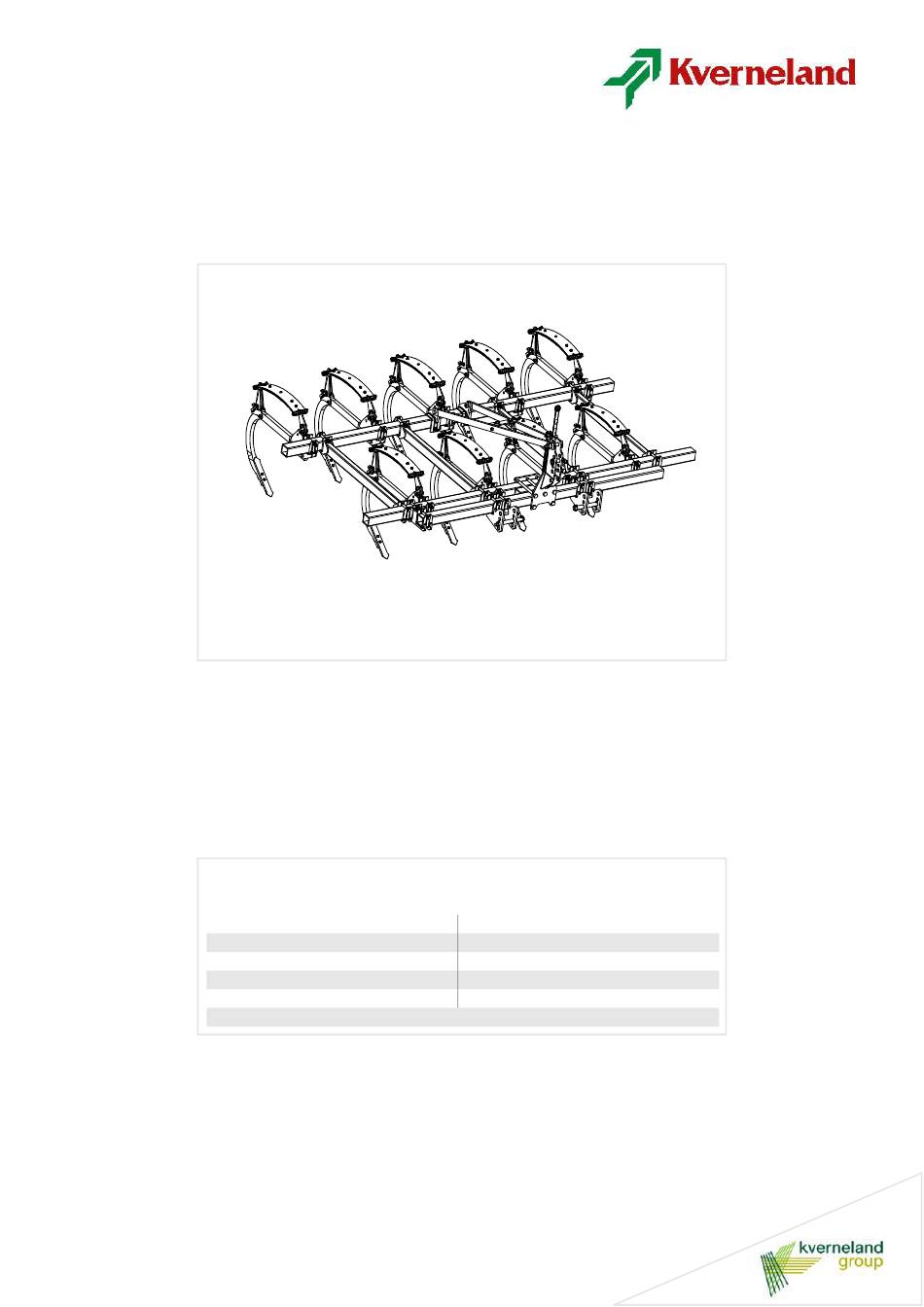

- Page 1 CLG-II Operation manual Issue 2/2008 Date of printing 8.2014 Language From machinenumber (PSN) Referencenumber A133095240 Original operation manual...
- Page 2 Norway Phone +47 5142 9000 www.kvernelandgroup.com Kverneland Group Operations Norway AS retains all copyrights and rights of usage. The contents of this operating manual are subject to change without notice. All rights reserved. The right to technical revision is reserved.
-
Page 3: Table Of Contents
Table of contents Table of contents Preface.............. 4 Target group of this operation manual Symbols used Safety..............5 Safety decals General safety information Getting to know the machine ......9 Proper use Features Components Technical specifications Type plate Optional equipment Making adjustments to the machine.... -
Page 4: Preface
Preface Preface Target group of This operation manual is meant for those concerned with the control, use and maintenance of the machine. It contains all data required for this operation a safe handling, use and maintenance of the machine. manual For your safety Before starting to adjust and use your machine, familiarise yourself with this operation manual. -
Page 5: Safety
For your safety, safety decals are placed on significant spots on the machine. Please do not remove them. If they becom illegible or begin to peel off, replace them with the appropriate spare stickers. For placement of the safety decals, refer to the CLG-II assembly man- ual. Meaning The meaning of the safety decals is pointed out below. -
Page 6: General Safety Information
Safety General safety in- Read and understand the following general safety information. Specif- ic safety information is pointed out in the relevant chapters. formation General Read and follow the instructions Before starting to operate the machine, read the operation manual and follow the instructions. - Page 7 Use OEM spare parts (Original Equipment Manufacterers) Only use original Kverneland spare parts. Using other products may lead to malfunction of the machine or a reduced safety. Warranty is not valid when non-Kverneland parts are used.
- Page 8 Safety Driving on the road Beware of the machine’s size The machine is long, and swings out in turns. In tight turns, avoid swinging the sides of the machine into obstacles. Obey local rules Obey the local rules when you intend to drive with the machine on public roads.
-
Page 9: Getting To Know The Machine
The bolted construction allows easy changes of working width and tine distance. Strong and flexible due to bolted clamps The patented bolted clamps on the main frame make the CLG-II ex- tremely strong and long lasting. Auto-Reset tines for obstacle protection The leaf spring obstacle protection is simple, but strong and reliable. -
Page 10: Components
Getting to know the machine Components 2 & 3 tines Main tube Main tube Tower Hitch coupling Parking stand Tine Connecting rod, type 1 Tine support Depth wheel 5 tines Main tube Tower Main tube Hitch coupling Tine Parking stand Tine support Connecting rod, type 1 Depth wheel... - Page 11 Getting to know the machine 7 & 9 tines, no reinforced frame Main tube Main tube Tower Tine Parking stand Hitch coupling Tine support Connecting rod, type 1 Connecting rod, type 2 Depth wheel 9 - 13 tines with rein- forced frame Main tube Main tube...
-
Page 12: Technical Specifications
Getting to know the machine Technical specifi- cations General Reinforced Max working Transport Weight tines frame width width yes/no 1057 1181 1425 1608 Average weight. Actual weight can vary depending on the configuration of the machine Equipment Qty. Weight (kg) Parking stand cpl. -
Page 13: Type Plate
Optional equip- This paragraph provides an overview of optional equipment on the CLG-II. Limitations apply. Please refer to your Kverneland dealer for ment more information. Tines Two types of tines are available. - Page 14 Adjustable hitch cou- pling For easy adapting of the CLG-II to the width of the tractor hitch. On CLG-II models with reinforced frame, adjustable hitch couplings are standard, whereas on CLG-II models without reinforced frame, they can be mounted optionally.
-
Page 15: Making Adjustments To The Machine
- 65 kpm) torque. Loosening of the bolts may otherwise lead to ex- treme tension and breakage of the frame. Tine distance You can adjust the tine distance as desired. Refer to the CLG-II as- sembly manual for instructions. Wheel position When the machine sinks at the rear during cultivating, position the wheels backward. - Page 16 Making adjustments to the machine Possible spring configurations Standard Standard + 1 leaf no. 5 Standard + 2 leafs no. 5 (Heavy Duty) Standard + 3 leafs no. 5 Standard + 4 leafs no. 5 (Extra Heavy Duty) Standard + 5 leafs no. 5 Double ( 2 x Standard) Standard Heavy Duty...
-
Page 17: Working Depth
Making adjustments to the machine Working depth To change the working depth > adjust the depth wheel (see below) > adjust the tractor hitch position > level the machine Depth wheel To adjust the depth wheel > lift the machine slightly >... -
Page 18: Working With The Machine
Working with the machine This chapter explains how to work with the machine. Working with the machine • Coupling • Transport • Cultivating • Parking and storage Coupling Safety Risk of injury when coupling There is an increased risk of injury when coupling the machine to the tractor. -
Page 19: Driving On The Road
Working with the machine Driving on the road Safety Stabilise lift rods During transport, stabilise the lift rods of the tractor. This will prevent from unintended sideways movement of the machine. Adapt speed; max 25 km/h Under all circumstances, adapt your driving speed to the road and field conditions, but do never drive in excess of 25 km/h. -
Page 20: Parking And Storage
Working with the machine Parking and stor- Machine stand Use the machine stand when parking the machine. When the machine is not properly supported, it may tip over, which may result in damage or injury. Park on firm and level floor Park the machine on firm and level floor. -
Page 21: Maintenance And Care
Safety Use OEM spare parts (original equipment manufacterers) Only use original Kverneland spare parts. Using other products may lead to malfunction of the machine or a reduced safety. Warranty is not valid when non-Kverneland parts are used. Use protective clothing Use protective clothing, e.g. -
Page 22: Cleaning
Maintenance and care Cleaning Thorough cleaning will enhance the durability of the machine. • The machine can be cleaned with a power cleaner, but do never aim directly at bearings. • Lubricate all nipples after power cleaning. Lubrication Use appropriate grease Only use EP (Extreme Pressure) grease. -
Page 23: Replace Wearing Parts
Maintenance and care • Replace wearing Replace tines and other parts when they are worn or damaged. • Use only genuine Kverneland spare parts. parts > Demount the old part > Mount the new part > Remove paint on soil engaging surfaces Tines The tines are reversible. -
Page 24: Check Auto-Reset Springs
Maintenance and care Check Auto-reset The length of the springs from pin to pin must be 69 cm. This results in maximum spring tension. Over time, the spring adjustment can springs change gradually and needs to be corrected. • Check the spring length every year. •... -
Page 25: Disposal Of The Machine
Disposal of the machine Dispose the machine properly when the service life of your machine is Disposal of the machine over. Please observe the current and valid waste disposal regulations. Metal All metal components can be sent for ferrous metal recycling. Tyres Tyres can be sent to tyre recycling facilities. -
Page 26: Ec Declaration Of Conformity
EC Declaration of conformity EC Declaration of conformity In accordance with EU Directive, 2006/42/EC Kverneland Group Operations Norway AS Kverneland Klepp N-4355 Kvernaland Norway declare under our sole responsibility that the product CLG-II to which this declaration relates, conforms to the relevant basic safety and health requirements of EU Directive 2006/42/EC.
