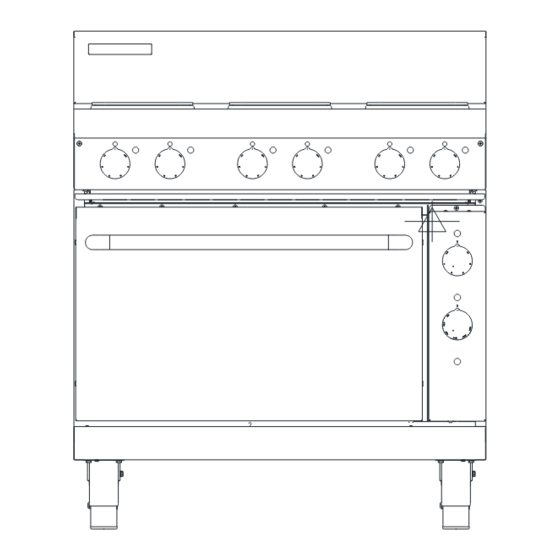

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L ELECTRIC RANGE E 5 0 6 S E 5 6 S 248229-3...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
- Page 3 Blue Seal Electric Static / Convection Oven Ranges - 900 mm E506S Electric Static Oven Range. E56S Electric Convection Oven Range. Model Numbers Covered in this Specification General Electrical Supply Requirements Electrical Connection Dimensions Installation Requirements Unpacking Location Clearances Assembly...
- Page 4 We are confident that you will be delighted with your BLUE SEAL ELECTRIC OVEN RANGE and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal ELECTRIC OVEN RANGE, there are two important things you can do.
- Page 5 Model Number Model Type Total Power Input Net Weight Electric Static Oven Range E506S 22.1 kW 153 kg with 6 Hotplate Elements Electric Convection Oven E56S Range with 6 Hotplate Ele- 22.2 kW 153 kg ments A commercial heavy duty, 900mm wide Electric Oven Range designed for modular kitchens and is constructed in an easy clean stainless steel external finish.
- Page 6 E506S / E56S ELECTRICAL ENTRY...
- Page 7 Blue Seal Electric Static / Convection Oven Ranges are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
- Page 8 HIS APPLIANCE MUST BE EARTHED SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Each appliance should be connected to an adequately protected power supply and isolation switch mounted adjacent to, but not behind appliance.
- Page 9 Blue Seal Electric Static / Convection Oven Ranges have been designed to provide simplicity of operation. Despite the Cooktop’s commercial heavy duty robust construction, incorrect operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully.
- Page 10 The controls for the cast iron hotplate elements may be set at any position between high and low to provide the desired level of heating. An individual green neon for each element, will glow when the element is powered on, i.e. heat control is set to an “ON” position. Start cooking at the highest setting, and change to a lower setting when the desired temperature is reached.
- Page 11 Clean the range regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface will hinder the transfer of heat from the cooking surface to the food. This will result in loss of cooking efficiency. DO NOT use water on the appliance while it is still hot as warping and cracking may occur.
- Page 12 NOTE: • If the Range usage is very high, we recommend that the weekly cleaning procedure is car- ried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. • DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage the Cooktop and elements.
- Page 13 This section provides an easy reference guide to the more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 14 Static Ovens (E506S)
- Page 15 Convection Ovens (E56S)
- Page 16 Cook Top - 6 Elements (E506S & E56S Models)
- Page 17 Wiring Layout for Static Oven Wiring Layout for Convection Oven Wiring Connection Between Oven and Hob...
-
Page 18: Replacement Parts List
Replacement Parts List IMPORTANT: When ordering replacement parts, please quote the part number and description as listed below. If the part required is not listed below, request the part by description and quote the model number and serial number which is shown on the rating plate. Cook Top 247734 Element Wire Loom...
