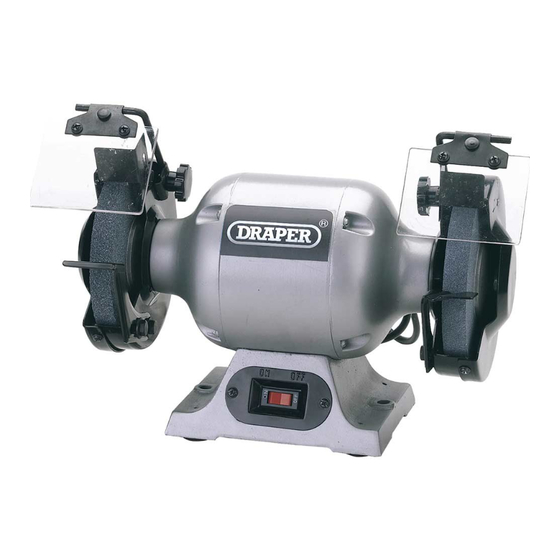

BENCH GRINDERS
STOCK No. 51331
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which
should be kept with the machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use.We recommend that this manual is read before any operation of
the machine, before performing any kind of adjustment to the machine, and prior to any maintenance tasks. By
following all the general safety instructions contained in this manual, it will ensure both machine and operator
safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool
policy of continuous improvement determines the right to make modifications without prior warning.
29620
29621
• INSTRUCTIONS •
SAFE AND EFFECTIVE USE OF THIS TOOL.
GENERAL INFORMATION
PART No.G150B
GHD150
GHD200
11/2000
Advertisement
Table of Contents
Related Manuals for Draper 29620
Summarization of Contents
General Safety Instructions for Power Tools
Know Your Power Tool
Understand the manual, labels, applications, limitations, and specific hazards of the tool.
Work Area Safety
Keep the work area clean, well-lit, and avoid dangerous environments or potential hazards.
Personal Protective Equipment
Wear appropriate clothing, safety goggles, and ear protection when necessary.
Safe Operation Practices
Disconnect power before adjustments, avoid accidental starting, and secure work properly.
Additional Safety Rules for Bench Grinders
Specific Bench Grinder Safety
Follow specific rules for bench grinders including wheel fitting and operation checks.
Power Supply Connection
Connecting to Power
Details on connecting the 230V machine to the mains power supply correctly and safely.
Extension Lead Guidance
Chart for selecting appropriate extension leads based on ampere rating and length.
Assembly of G150B Model
Tool Rests Assembly
Instructions for attaching and adjusting the tool rests for optimal grinding.
Spark Deflector Assembly
Instructions for attaching and positioning the spark deflectors correctly.
Eye Shield Fitting
Guidance on fitting the eye shields to the spark deflectors.
Fastening to Workbench
Instructions for securely mounting the bench grinder onto a workbench.
Assembly of GHD150 & GHD200 Models
Tool Rests Assembly
Instructions for attaching and adjusting the tool rests for optimal grinding.
Spark Deflector Assembly
Instructions for attaching and positioning the spark deflectors correctly.
Eye Shield Fitting
Guidance on fitting the eye shields to the spark deflectors.
Additional Assembly Steps for GHD Models
Attaching Cooling Trough (GHD200)
Specific instruction for attaching the cooling trough to the GHD200 model.
Fastening Bench Grinder to Workbench
Instructions for securely mounting the bench grinder onto a workbench.
Operating Instructions
Bench Grinder Operation Basics
Guidance on the intended use and basic operational steps for the bench grinder.
Wheel Clearance and Guards
Ensuring correct gaps between tool rests, deflectors, and wheels.
Wheel Fitting and Testing
Procedure for fitting new grinding wheels and testing for damage.
Grinding Tips for Optimal Results
Workpiece Handling
Tips on holding the workpiece and applying pressure for best results.
Wheel Maintenance
Advice on checking, replacing, and maintaining grinding wheels.
Changing the Grinding Wheels
Wheel Removal and Replacement
Step-by-step guide for safely removing and replacing grinding wheels.
Wheel Speed and Damage Check
Ensuring new wheel RPM exceeds grinder RPM and checking for damage.
Available Accessories
Grinding Wheels
List of available grinding wheels with stock numbers, types, and specifications.
General Accessories
List of general accessories like wheel dressers and attachments.
Wire Wheels
List of available wire wheels with specifications.
