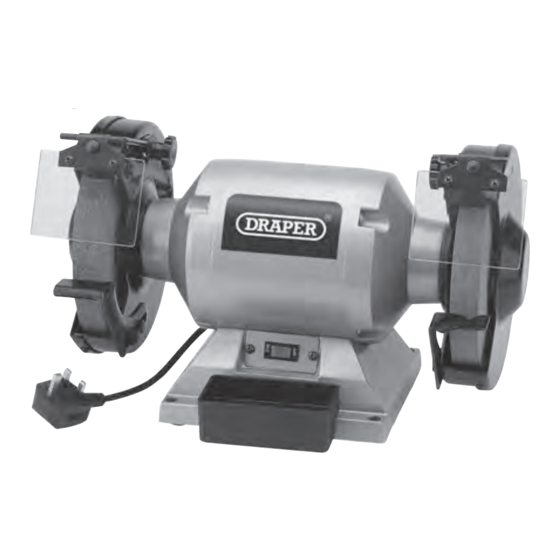

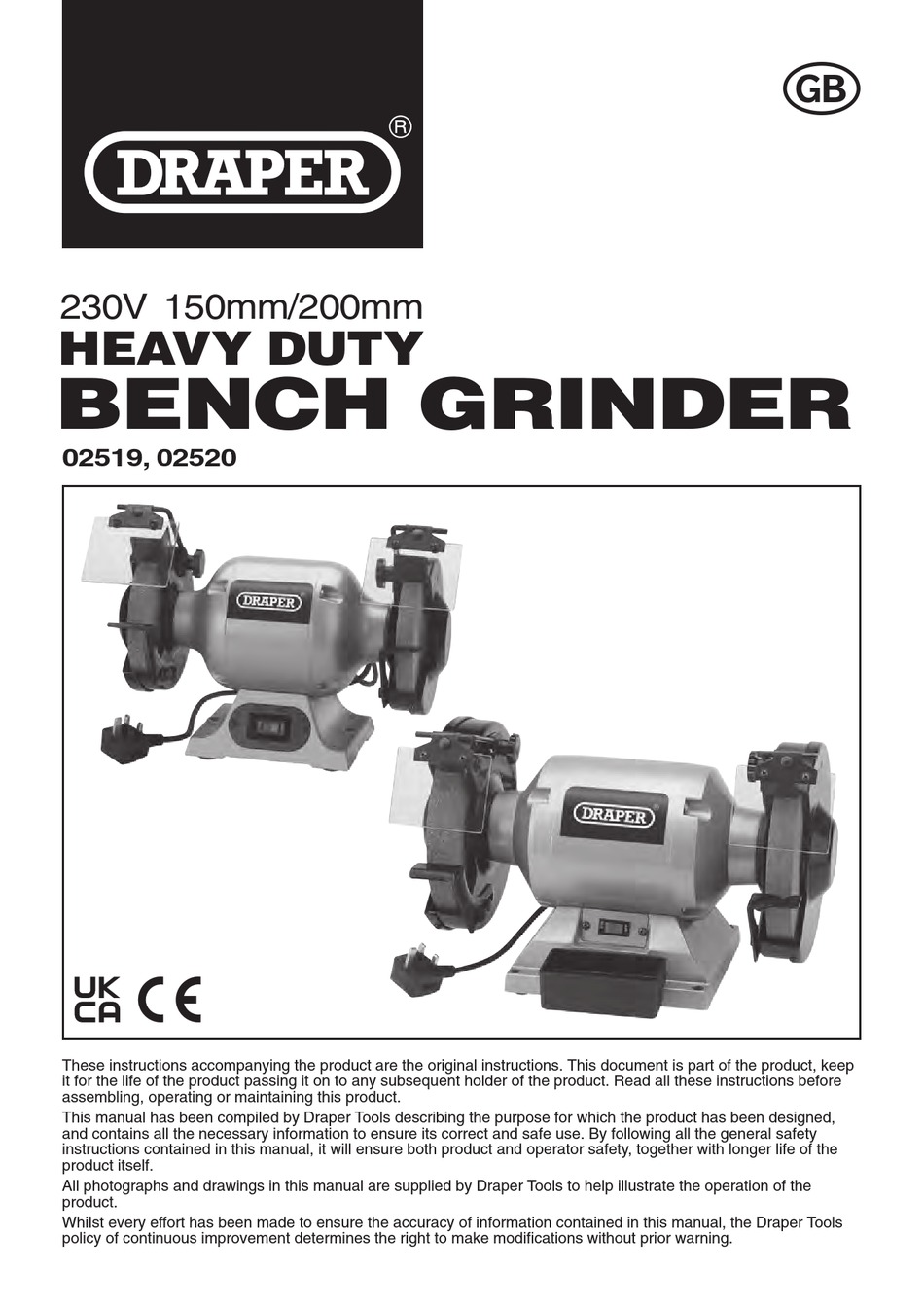

230V 150mm/200mm
HEAVY DUTY
BENCH GRINDER
02519, 02520
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 02519
Summary of Contents for Draper 02519
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISIONS ........................2 UNDERSTANDING THIS MANUALS SAFETY CONTENT ......... 2 COPYRIGHT © NOTICE ....................2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE .................. -
Page 4: Warranty 3.1 Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
INTRODUCTION SCOPE This bench grinder uses abrasive discs to grind masonry, metal and other materials. This product is suitable for enthusiasts and tradespersons alike. Any application other than that it was intended for is considered misuse. SPECIFICATION Stock No’s............. 29620 ............29621 Part No’s. -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 7: Specific Safety Instruction For Bench Grinders
HEALTH AND SAFETY INFORMATION f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 8 HEALTH AND SAFETY INFORMATION − Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required. − Ensure that the abrasive product is correctly mounted and tightened before use and run the tool at no-load speed for 30 seconds in a safe position –...
-
Page 9: Safety Recommendations For The Correct Use Of Abrasive Products
HEALTH AND SAFETY INFORMATION SAFETY RECOMMENDATIONS FOR THE CORRECT USE OF ABRASIVE PRODUCTS General. Bonded abrasive products are breakable and shall therefore be handled with utmost care. The use of damaged or improperly mounted or used abrasive products is dangerous and can cause serious injuries. -
Page 10: Residual Risk
HEALTH AND SAFETY INFORMATION carried out by a qualified trained person. Each time after mounting, the superabrasive shall be test run for a reasonable time – the specified maximum operating speed of the superabrasive shall not be exceeded. Further information. The following instructions shall be observed, supplementary to the information of the grinding machine: –... -
Page 11: Technical Description
TECHNICAL DESCRIPTION IDENTIFICATION Stock No. 29621 (1) Coarse grinding wheel. (6) ON/OFF switch. (2) Fine grinding wheel. (7) Spark deflector. (3) Eyeshields. (8) Cooling trough (29621 only). (4) Wheel guards. (5) Adjustable tool rests. – 11 –... -
Page 12: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 13: Assembling The Bench Grinder
ASSEMBLING THE BENCH GRINDER INSTALLATION Choose a location that is level, flat and with a lot of natural light. The bench grinder should be operated on a work bench that is high enough to prevent any injury caused by working in an uncomfortable position; but not too high that the work piece cannot be safely viewed from above. -
Page 14: Attaching The Spark Deflectors - Fig.3
ASSEMBLING THE BENCH GRINDER ATTACHING THE SPARK (B.2) DEFLECTORS – FIG.3 (B.1) − Attach the left and right hand spark deflectors using the fittings from group’s (B) and (C) shown in 7.2 WHAT’S IN THE BOX section on page 12. − Attach the spark deflectors using the two bolts (B.1) and medium size washers (B.2) as shown in Fig.3. -
Page 15: Attaching The Cooling Trough (29621 Only)
ASSEMBLING THE BENCH GRINDER ATTACHING THE COOLING TROUGH (29621 only) Attach the cooling trough to the bench grinder by inserting the lug on the bottom of the tray into the hole in the base at the front of the bench grinder. (Fig.7). -
Page 16: Basic Grinding Operations
BASIC GRINDING OPERATIONS 9.1 OPERATING INSTRUCTIONS A bench grinder is designed for hand grinding operations only, such as sharpening drill bits, chisels and screwdrivers or removing excess metal from workpieces. A coarse grit grinding wheel could be used for grinding rough metals, to remove large amounts of metal, or where a smooth finish is not important. -
Page 17: Maintenance And Troubleshooting
10. MAINTENANCE AND TROUBLESHOOTING 10.1 CHANGING THE GRINDING WHEELS For your own safety, always turn the main switch on the machine “OFF” and remove the plug from the power supply before carrying out any servicing or maintenance. − Remove the screws which secure the grinding wheel side covers then take off covers. −... -
Page 18: Disposal
11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... -
Page 19: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS WEEE – Waste Electrical & Electronic Equipment. Read the instruction manual. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Continuous A-Weighted Sound Wear face mask and safety Pressure Level (example shown). - Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
