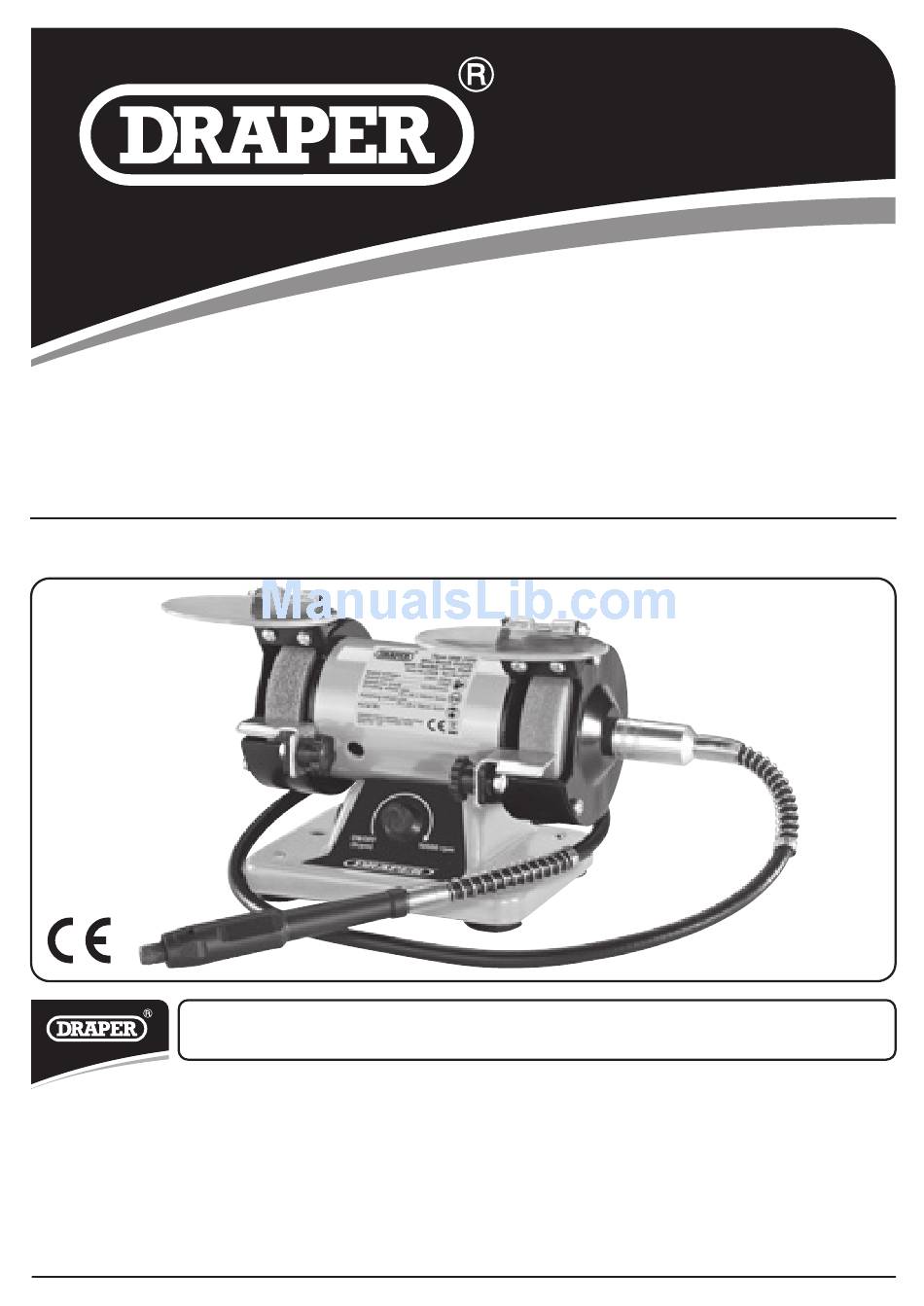

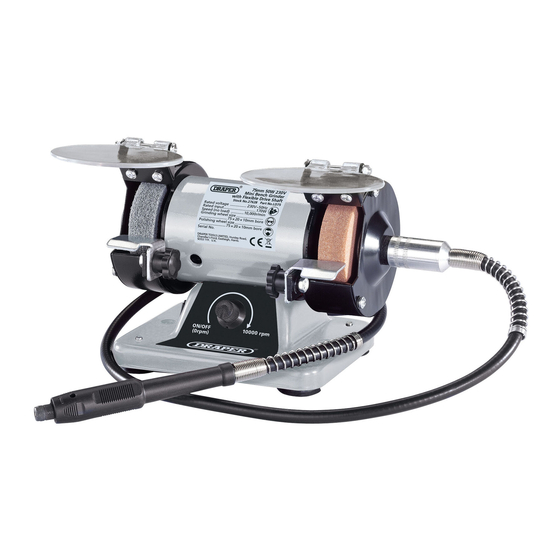

INSTRUCTIONS FOR
230V 150W
75mm Bench Grinder
with Flexible Drive Shaft
Stock No.27628
Part No.LD75
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all instructions before assembling,
operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD75 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper LD75

Summary of Contents for Draper LD75

  • Page 1: General Information

    AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................... 2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ................2 COPYRIGHT NOTICE ....................2 CONTENTS CONTENTS ........................ 3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This bench grinder with flexible drive shaft is intended for light grinding, cutting and polishing duties – ideally suited for the home hobbyist. Any other applications are considered misuse. 4.2 SPECIFICATION Stock No..........................27628 Part No............................LD75 Motor: Rated voltage ........................ 230V Rated frequency ......................50Hz Rated input ........................150W Revolutions per minute (no load) ..........Variable 0 –...

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Specific Safety Instructions For Bench Grinders

    HEALTH & SAFETY INFORMATION Do not overreach. Extending your body too far can result in a loss of balance and you falling. This could be from a height or onto a machine and will result in injury. Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or missing parts immediately with original parts from the manufacturer.

  • Page 8: Safety Recommendations For The Correct Use Of Abrasive Products

    HEALTH & SAFETY INFORMATION – Never use the tool without a guard. – Do not use separate reducing bushings or adapters to adapt large hole abrasive wheels. – For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

  • Page 9: Connection To The Power Supply

    HEALTH & SAFETY INFORMATION – Use of personal protective equipment according to the type of machine and type of application, e.g. eye and face protection, ear protection, respiratory protective devices, protective footwear, protective gloves and other protective clothing. – Only grinding operations for which the abrasive product is suitable shall be carried out (taking into account restrictions of use, safety indications or other information).

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Power On/Off switch. Abrasive wheel. On/Off/variable speed dial. Polishing wheel. Adjustable tool rest. Wheel guard. Spark deflector. Flexible shaft. Eyeshield.

  • Page 11: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 12: Accessory Kit

    ACCESSORY KIT 8.1 GETTING TO KNOW YOUR ACCESSORIES HSS Cutting Burrs: Key Description HSS cutting burr – ball. HSS cutting burr – point. HSS cutting burr – large cylindrical. HSS cutting burr – small cylindrical. HSS cutting burr – large conical. HSS cutting burr –...
  • Page 13 ACCESSORY KIT Small cylindrical grinding stone (green) 120 grit. Medium flat grinding stone (green) 120 grit. Small flat grinding stone (blue) 120 grit. Large flat grinding stone (blue) 120 grit. Conical grinding stone (blue) 120 grit. 1 Large cylindrical grinding stone (white) 80 grit.
  • Page 14 ACCESSORY KIT Miscellaneous: Key Description Pot of polishing compound. Sharpening stone. Sanding and Cutting Discs: Key Description Large sanding discs (120grit). Small sanding discs (120grit). Fibreglass cutting discs. Sanding/cutting disc mandrel.

  • Page 15: Assembly

    (fixings are not supplied). Ensure there is enough clear space around the grinder to accommodate large items which may be ground, i.e. garden tools, etc. To reduce any vibration, mount the grinder on a vibration absorbsion mat, Draper Stock No.30743.

  • Page 16: Fitting/Replacing The Grinding & Polishing Wheels

    ASSEMBLY 9.4 FITTING/REPLACING THE GRINDING & POLISHING WHEELS – FIG.3: Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. Warning! Do not use damaged grinding wheels. – Switch the grinder off and disconnect the power supply.

  • Page 17: Fitting The Flexible Drive Shaft

    ASSEMBLY 9.5 FITTING THE FLEXIBLE DRIVE SHAFT – FIGS.4 – 5: Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. – Thread the inner flexible drive shaft into the square profiled recess on the drive spindle FIG.4 –...

  • Page 18: Fitting A Sanding Drum Accessory

    ASSEMBLY – Insert the mandrel or accessory. Do not force. – Using the spindle locking key , slot the key into the aperture located on the hand grip of the flexible drive shaft. – Using the spanner , tighten the chuck cover .

  • Page 19: Operation & Use

    10. OPERATION & USE 10.1 USING THE GRINDING WHEEL – FIG. 11 Warning! Always wear appropriate personal protective equipment, including eye, hearing and respiratory protection, when using this machine. Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. Warning! Never fit any attachment with a rated maximum speed that is lower than the ‘no load’...

  • Page 20: Using The Polishing Wheel

    10. OPERATION & USE 10.2 USING THE POLISHING WHEEL – FIG. 12: – If necessary, follow the instructions outlined in section 9.4 on page 16 for attaching the polishing wheel to the machine. – The polishing wheel can be used for polishing and buffing applications in conjunction with the supplied polishing compound and polishing discs used with the flexible drive shaft.

  • Page 21: Troubleshooting & Maintenance

    2. Check collet size is correct to the size of the mandrel and re-tighten. † Replacement abrasive wheels and other accessories can be obtained from your local Draper stockist 11.2 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition.

  • Page 22: Optional Accessories

    12. OPTIONAL ACCESSORIES 12.1 OPTIONAL ACCESSORIES The following accessories are available from your local Draper stockist. Stock No. Part No. Description 30479 AG100 150mm Grinding wheel dresser.

  • Page 23: Disposal

    13. DISPOSAL 13.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 24 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH1216...
