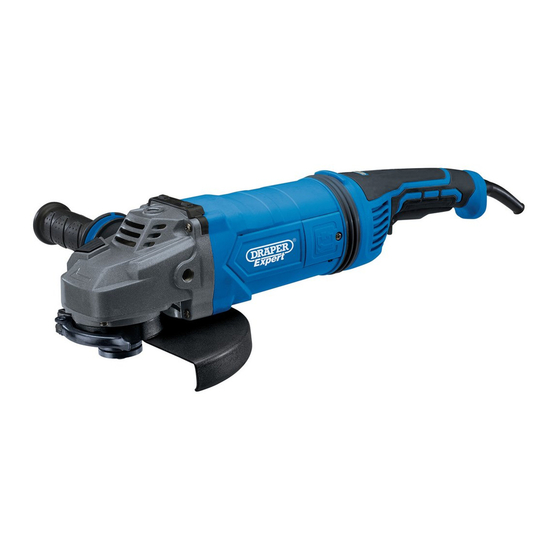

2600W 230mm
ANGLE
GRINDER
56610

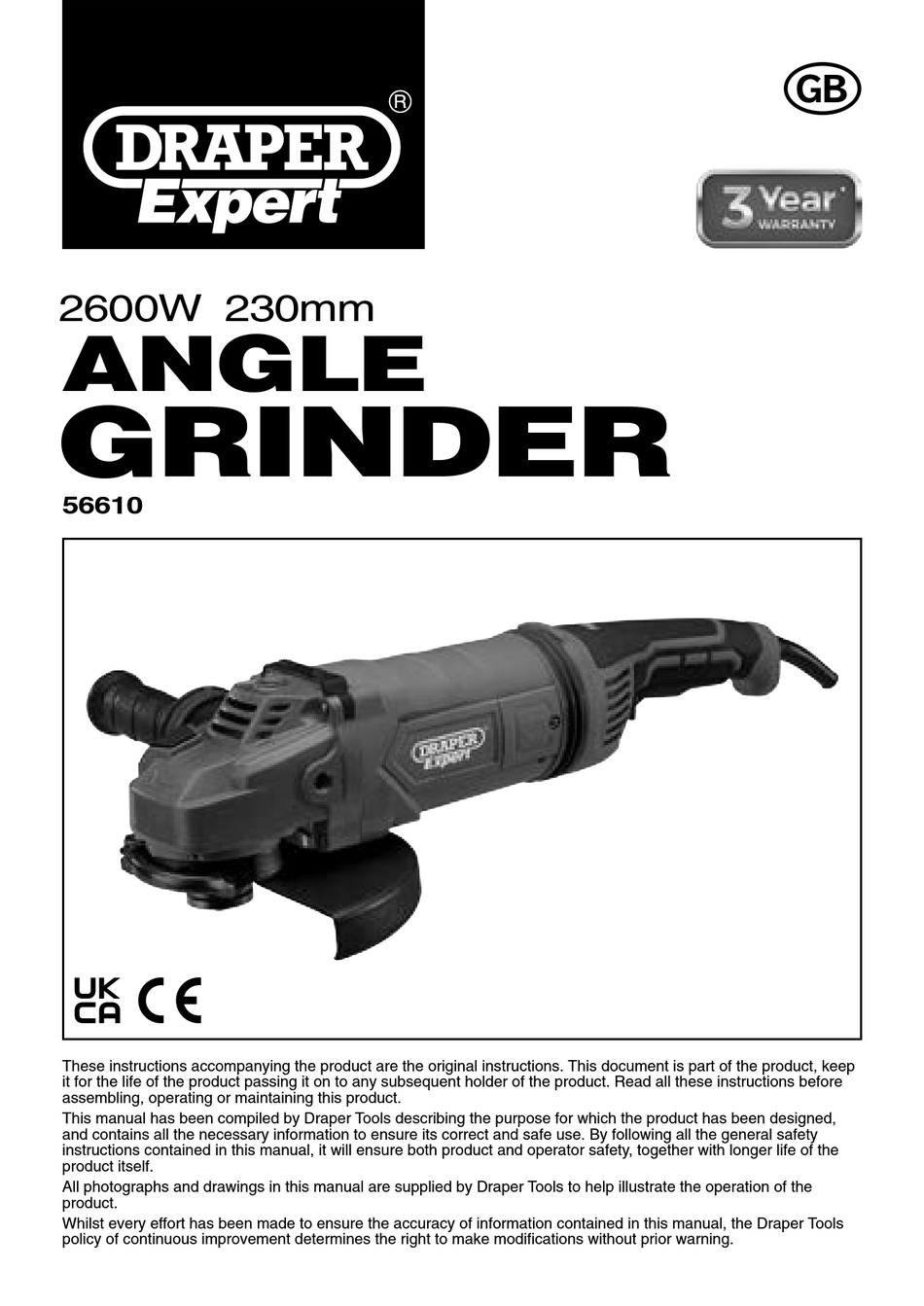

These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expert 56610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper Expert 56610

Summary of Contents for Draper Expert 56610

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    *To register your warranty, visit: drapertools.com/warranty-registration By registering your product you will be given the option to become a Draper Club Member where you will have the option to receive news of our new products, offers, deals, competitions and more! Registration can only be completed online.

  • Page 5: Introduction

    INTRODUCTION SCOPE This hand held power tool uses abrasive discs to grind/cut metals or masonry. This product is intended for trade use and has the quality and features to meet and exceed the expectations of the most demanding user. Any application other than that it was intended for, is considered misuse.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Specific Safety Instructions For Grinder Use

    HEALTH AND SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 8 HEALTH AND SAFETY INFORMATION f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
  • Page 9 HEALTH AND SAFETY INFORMATION b) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. c) Do not attach a toothed saw blade.

  • Page 10: Safety Recommendations For The Correct Use Of Abrasive Products

    HEALTH AND SAFETY INFORMATION f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Safety Warnings Specific for Wire Brushing Operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation.

  • Page 11: Safety Recommendations For The Correct Use Of Superabrasives

    HEALTH AND SAFETY INFORMATION SAFETY RECOMMENDATIONS FOR THE CORRECT USE OF SUPERABRASIVES General. Superabrasives are breakable and shall therefore be handled with utmost care! The use of damaged or improperly mounted or used superabrasives is dangerous and can cause serious injuries.

  • Page 12: Connection To The Power Supply

    HEALTH AND SAFETY INFORMATION CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock. Do not open. This appliance is supplied with an approved plug and cable for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.

  • Page 13: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (1) On/Off trigger switch. (2) Rear hand grip. (3) Spindle lock button. (4) Locking flange. (5) Safety guard. (6) Auxiliary handle. – 13 –...

  • Page 14: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 15: Preparing The Angle Grinder

    PREPARING THE ANGLE GRINDER FITTING AUXILIARY HANDLES – FIG. 1 Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. − Screw the handle (6) clockwise, into one of the three threaded apertures best suited to the application and user comfort.

  • Page 16: Fitting/Replacing Accessories

    Important information: B, C, D (FIG.4): – For cutting applications, and to comply to current legislation, it is necessary to replace the “grinding” guard supplied with this machine with a “cutting” guard (Draper Stock No.53190). FIG. – 16 –...

  • Page 17: Fitting Grinding Discs

    PREPARING THE ANGLE GRINDER FITTING GRINDING DISCS – FIGS. 5 – 8 − Press and hold the spindle lock button (3). Loosen the locking flange (4) anti-clockwise using the pin spanner (7) supplied. − The spindle may rotate slightly before the spindle lock fully engages.

  • Page 18: Basic Angle Grinder Operations

    BASIC ANGLE GRINDER OPERATIONS ON/OFF SWITCH – FIG. 9 Warning! Before connecting the product to the mains electricity supply, always check that the ON/ OFF trigger switch (1) is functioning properly and reverts to the OFF position when it’s released. This product has a trigger switch safety lock mechanism (1.1) that prevents accidental starting of the machine.

  • Page 19: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.

  • Page 20: Disposal

    11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 21: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Net product weight. Read the instruction manual. Class II construction Wear face mask and safety (Double insulated). glasses. WEEE – Waste Electrical & Electronic Equipment. Wear ear defenders. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 22 NOTES – 22 –...
  • Page 23 NOTES – 23 –...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
