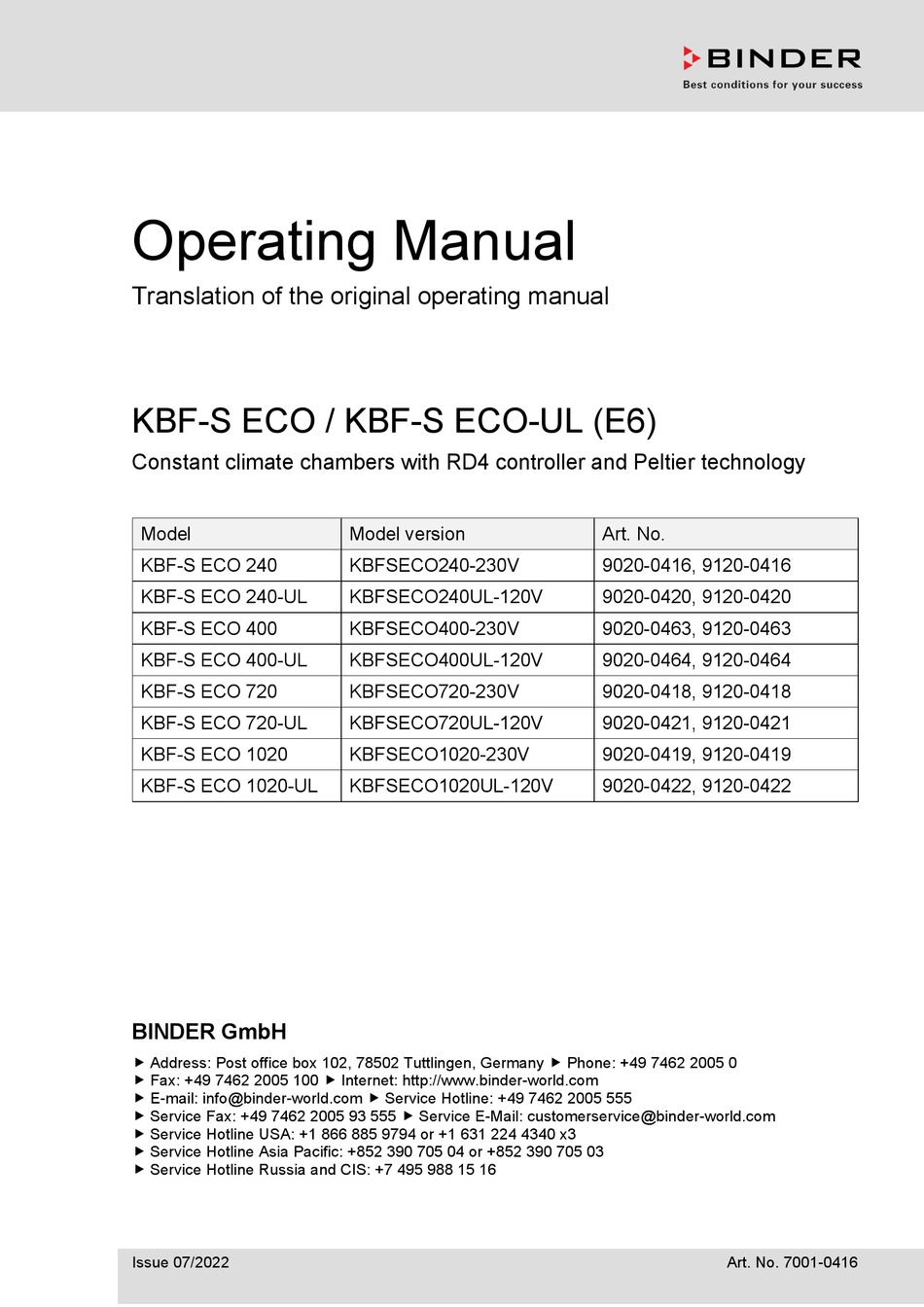

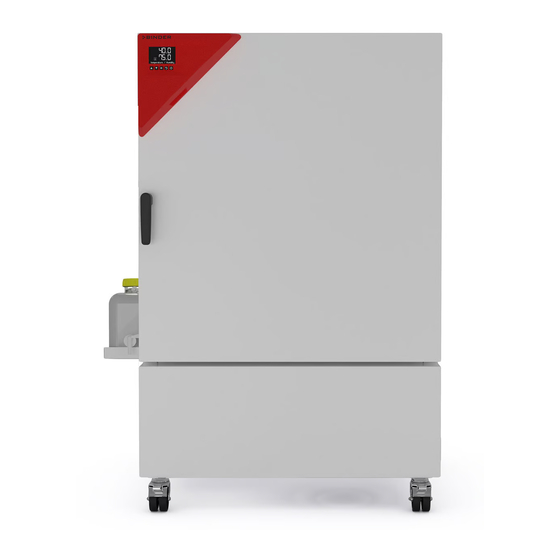

Operating Manual
Translation of the original operating manual
KBF-S ECO / KBF-S ECO-UL (E6)
Constant climate chambers with RD4 controller and Peltier technology
Model
KBF-S ECO 240
KBF-S ECO 240-UL
KBF-S ECO 400
KBF-S ECO 400-UL
KBF-S ECO 720
KBF-S ECO 720-UL
KBF-S ECO 1020
KBF-S ECO 1020-UL
BINDER GmbH
Address: Post office box 102, 78502 Tuttlingen, Germany Phone: +49 7462 2005 0
Fax: +49 7462 2005 100 Internet: http://www.binder-world.com
E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555
Service Fax: +49 7462 2005 93 555 Service E-Mail: customerservice@binder-world.com
Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3
Service Hotline Asia Pacific: +852 390 705 04 or +852 390 705 03
Service Hotline Russia and CIS: +7 495 988 15 16
Issue 07/2022
Model version
KBFSECO240-230V
KBFSECO240UL-120V
KBFSECO400-230V
KBFSECO400UL-120V
KBFSECO720-230V
KBFSECO720UL-120V
KBFSECO1020-230V
KBFSECO1020UL-120V
Art. No.
9020-0416, 9120-0416
9020-0420, 9120-0420
9020-0463, 9120-0463
9020-0464, 9120-0464
9020-0418, 9120-0418
9020-0421, 9120-0421
9020-0419, 9120-0419
9020-0422, 9120-0422
Art. No. 7001-0416
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Binder KBF-S ECO 400
Summarization of Contents
1. Safety
1.1 Personnel Qualification
Defines the qualifications for personnel operating the chamber.
1.4 Safety Instructions Structure
Explains the structure and symbols used in safety instructions.
1.8 General Safety Instructions
Provides general safety guidelines for installation and operation.
1.13 Measures to Prevent Accidents
Outlines manufacturer's measures and operator precautions to prevent accidents.
2. Chamber Description
2.1 Chamber Overview
Provides a visual overview of the constant climate chamber's main components.
3. Completeness of Delivery, Transportation, Storage, and Installation
3.2 Safe Lifting and Transportation
Guidelines for safely moving and transporting the chamber.
4. Installation and Connections
4.3 Water Supply
Details on how to connect and supply freshwater to the chamber's humidifying system.
4.5 Electrical Connection
Guidelines for properly connecting the chamber to the electrical power supply.
5. Functional Overview of the RD4 Chamber Controller
5.1 Menu Structure and Access Levels
Explains the controller's menu hierarchy and user access levels.
7. Temperature and Humidity Set-point Entry
7.1 Temperature Set-point Entry
Instructions for setting the desired temperature value using the controller.
9. Password
9.1 Password Request
Explains the process for requesting and entering passwords to access restricted menus.
9.2 Assign and Modify Password
Procedures for setting and changing user and administrator passwords.
10. Temperature Safety Devices
10.2 Overtemperature Safety Controller Class 3.1
Details the electronic safety controller for preventing overtemperature conditions.
11. General Controller Settings
11.1 Selecting Controller's Menu Language
How to change the language displayed on the controller's menus.
11.2 Selecting the Temperature Unit
Process for switching between Celsius and Fahrenheit temperature units.
12. Tolerance Range Settings
12.1 Setting Delay Time for Tolerance Range Alarm
Configures the delay before a tolerance range alarm is triggered.
12.2 Setting the Temperature Tolerance Range
Defines the acceptable deviation for temperature set-points before an alarm.
13. Notification and Alarm Functions
13.2 Alarm Messages
Lists potential alarm messages, their causes, and how to confirm them.
14. Program Start/Stop Function
14.1 Start Time Program
Instructions for initiating a time-based program on the controller.
15. Ethernet Network Settings
15.1 Showing Network Settings
How to view current network configuration details like IP address and MAC address.
15.2 Changing Network Configuration
Procedures for configuring IP address, subnet mask, and gateway settings.
16. Data Recorder
16.1 Recorded Data
Describes the types of data saved by the internal data recorder.
17. USB Menu: Data Transfer via USB Interface
17.3 Export Functions
Options for exporting configuration, recorder data, and service data via USB.
18. Self-Test Function
18.1 Activating the Self-Test Function
Steps to initiate the automated self-test for chamber functionality.
19. Humidification / Dehumidification System
19.1 Function of Humidifying and Dehumidifying System
Explains the operation of the chamber's humidity control systems.
21. Options
21.1 APT-COM 4 Multi Management Software
Information about the optional software for chamber control and monitoring.
22. Cleaning and Decontamination
22.1 Cleaning
Procedures and recommended agents for cleaning the chamber's interior and exterior.
23. Maintenance and Service, Troubleshooting, Repair, Testing
23.4 Simple Troubleshooting
Guide for identifying and resolving common chamber faults and errors.
24. Disposal
24.3 Disposal of Chamber in Federal Republic of Germany
Regulations and procedures for disposing of the chamber in Germany.
25. Technical Description
25.4 Technical Data
Comprehensive table of technical specifications for different chamber sizes.
26. Certificates and Declarations of Conformity
26.1 EU Declaration of Conformity
Formal statement confirming the chamber's compliance with EU directives.
26.2 UKCA Declaration of Conformity
Formal statement confirming the chamber's compliance with UK regulations.
27. Contamination Clearance Certificate
27.1 For Chambers Located Outside USA and Canada
Form and instructions for clearing contamination for chambers outside North America.
