Summary of Contents for Parweld XTM 201i

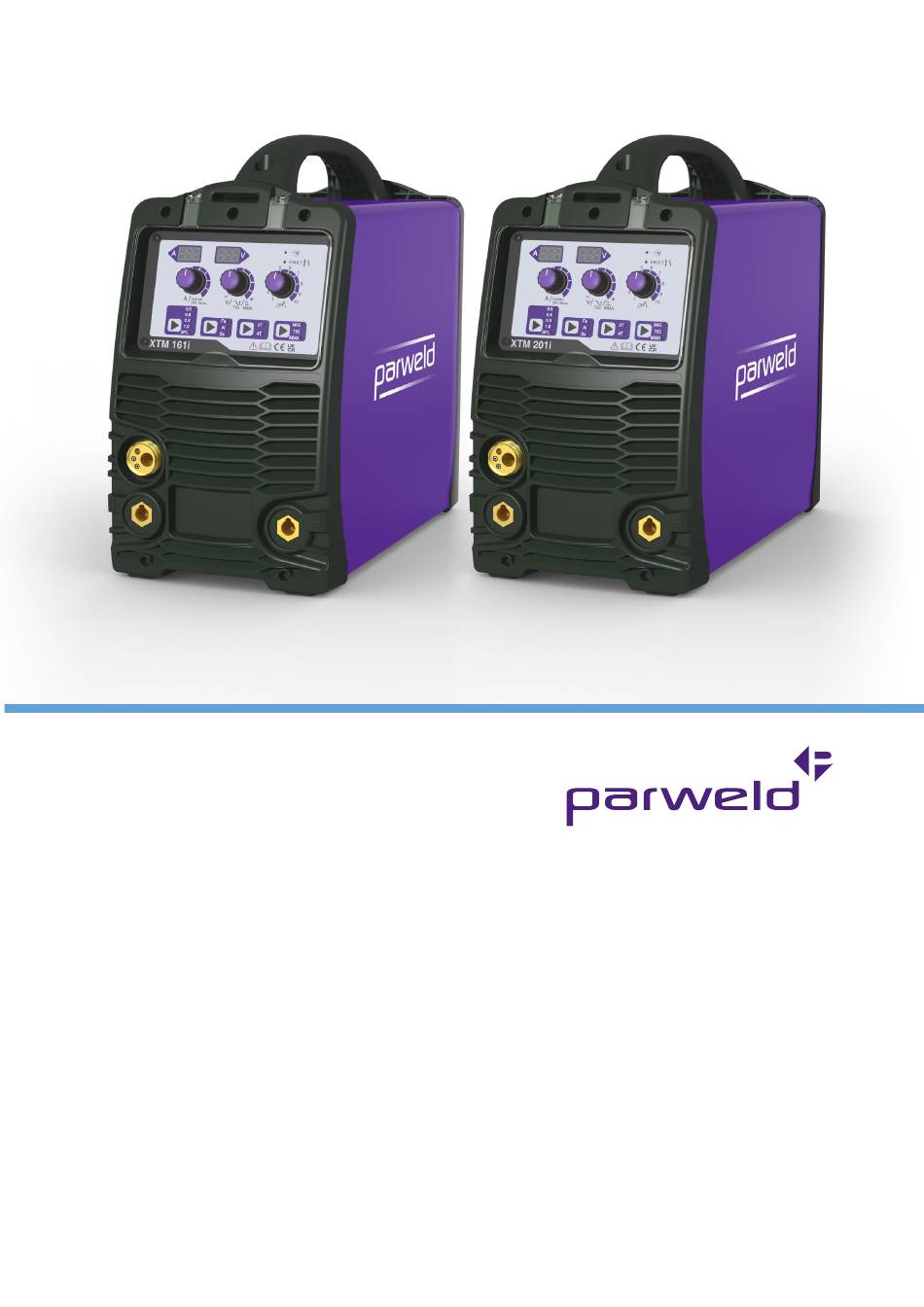

- Page 1 XTM 161i XTM 201i OPERATOR MANUAL ISSUE 2...
- Page 2 Thank you and congratulations on choosing Parweld. This Owner’s Manual is designed to help you get the most out of your Parweld products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards in the workplace. With proper maintenance this equipment should provide years of reliable service.
-
Page 3: Table Of Contents
7.0 Fault Finding 10-12 8.0 Accessories 8.1 Feed Rolls 8.2 Torch Spares 8.3 Gas Equipment 8.4 Flow Meters 9.0 Torch Schematic ECO-GRIP MAX 150A 10.0 EC Declaration of Conformity 10.1 RoHS Compliance Declaration 10.2 WEEE Statement 10.3 Statement of Warranty www.parweld.co.uk... -
Page 4: Safety Precautions
Be alert that welding sparks and hot materials from welding can Insulate work clamp when not connected to work piece to prevent easily go through small cracks and openings to adjacent areas. contact with any metal object. Watch for fire, and keep a fire extinguisher nearby. Be aware that www.parweld.co.uk... -
Page 5: Product Description
BUILDUP OF GAS can injure or kill. Model XTM 161i XTM 201i Shut off shielding gas supply when not in use. Always ventilate confined spaces or use approved air-supplied respirator. -
Page 6: Description Of Controls
MIG or MMA welding. This is the 50mm Twist lock connection socket. 11. Process Selector MIG, TIG, or MMA. 12. Inductance control, this hardens or softens the arc in MIG welding. 13. Fault Light. 14. Power Indicator shows when the machine is turned on. www.parweld.co.uk... -
Page 7: Installation
The XTM161i and XTM201i machine should only be used on 230V supply. Refer to the specifications table for voltage tolerances. Your Parweld MIG/MAG Welding Torch has been supplied ready to weld. It has been supplied with the standard consumables denoted in the product brochure. -
Page 8: Work Return Lead Connection
Press the gas purge button and check the gas flow is adequate for your application. (12) Inductance adjustment knob controls the smoothness of the arc An inexpensive flow meter is available from Parweld reference 806001. Using primarily the Voltage and the Current (wire speed) knobs, adjust until you reach a stable arc condition. -
Page 9: Optimising Weld Parameters (Manual)
This allows for continuous welding without the need the keep the trigger depressed. To stop welding, depress the trigger this activates the Down Slope function, releasing the trigger will stop the Fig.3 operation. www.parweld.co.uk... -
Page 10: Fault Finding
(b) Reduce (c) Surface impurities welding (f) Use electrodes such as oil, grease, current designed for position paint, etc in which welding (c) Clean is done, otherwise joint before proper control of welding slag is difficult. www.parweld.co.uk... - Page 11 Poor weld finish Inadequate shielding Increase gas flow or welding connection to the check gas line for work piece gas flow problems www.parweld.co.uk...
-
Page 12: Accessories
706100 Flow Meter Mixed Gas 15 lpm DR2V1012 Plain V 1.0 - 1.2 Fe, Ss DR2K0809 Knurled V 0.8 - 0.9 DR2K1012 Knurled V 1.0 - 1.2 DR2U0809 Plain U 0.8 - 0.9 DR2U1012 Plain U 1.0 - 1.2 www.parweld.co.uk... -
Page 13: Torch Schematic Eco-Grip Max 150A
9.0 Torch Schematic - ECO-GRIP MAX 150A ® Air Cooled MIG Welding Torch Rating: 140A CO 140A mixed gas, @ 60% duty cycle. EN60974-7 .023”-.040”/0.6-1.0mm wires parweld.com @ParweldLtd ParweldTV parweld_uk Model Components Stock Code Description Stock Code Model Description * Denotes Standard Build... -
Page 14: Ec Declaration Of Conformity
10.0 EC Declaration of Conformity Hereby we declare that the machines as stated below Type: XTM 161i XTM 201i Conform to the Low Voltage Directive: 2014/35/EEC EMC Directive 2014/35/EEC European standard: EN/IEC 60974-1 This is to certify that the tested sample is in conformity with all provisions of the above detailed EU directives and product standards. -
Page 15: Weee Statement
WEE compliance outside the UK please contact your supplier/Importer Parweld is registered with a compliance scheme Official registration number is WEE/FD0255QV When your equipment reaches the end of its service life you should return it to Parweld where it will be reconditioned or processed for recycling. - Page 16 Parweld Limited Bewdley Business Park Long Bank Bewdley Worcestershire England DY12 2TZ tel. +44 1299 266800 fax. +44 1299 266900 www.parweld.co.uk info@parweld.co.uk...
