- Page 2 The symbol opposite means that according to United Kingdom and European Union member countries laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities.
-
Page 3: Planning The Installation

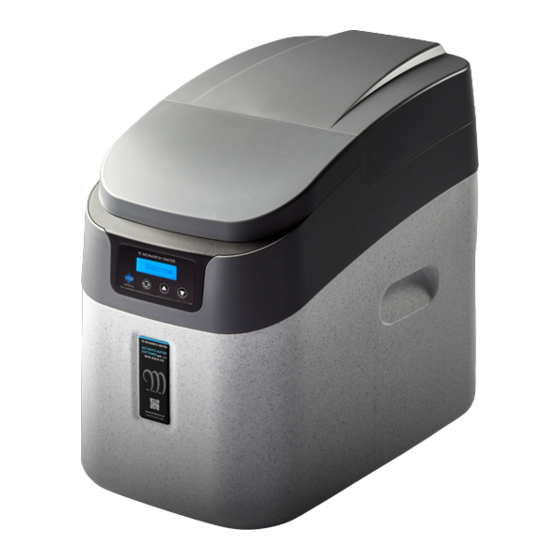

/ MONARCH ULTIMATE ELECTRIC WATER SOFTENER PROGRAMMING AND INSTALLATION INSTRUCTIONS Thank you for choosing our water softener. Please read the following carefully, which if followed correctly, should ensure the installation is trouble free. / A. PLANNING THE INSTALLATION • Always observe the water byelaws. •... - Page 4 / RAPID-FIT BYPASS INSTALLATION INSTRUCTIONS Direction arrows are embossed on the bypass as follows; SUPPLY IN - is hard water supply in from mains SUPPLY OUT - is soft water supply back to property TO UNIT - is mains hard water from bypass to softener inlet via flexi hose FROM UNIT - is soft water from the softener outlet back to bypass via flexi hose Every Rapid-Fit bypass comes with the following;...
-
Page 5: Water Pressure Test
/ F. WATER PRESSURE TEST • It is IMPORTANT that a pressure check is carried out. • Low and high pressure can result in either damage to, or failure of the unit. • If daytime static water pressure* exceeds 3.5 bar (50psi) a 5 bar (70psi) pressure limiter should be fitted. -
Page 6: Inlet & Outlet Connections
/ H. INLET & OUTLET CONNECTIONS - See Fig 2 • Remove both salt lid and main cover to access inlet and outlet connections. • Remove grey retaining clips and also BSP connection DRAIN ELBOW points. Connect hoses to male BSP connection points, tighten to seal, then reinsert BSP connection points back into valve body. -
Page 7: Electrical Connection
/ L. ELECTRICAL CONNECTION FIG 3 With the power off, connect the transformer – supplied – to a continuous electrical supply. Push the flying lead from the transformer into the adaptor on the lead coming from the controller. / M. OBTAIN YOUR WATER HARDNESS •... -
Page 8: Set Time Of Day
/ O. SET TIME OF DAY • Wait until display says Time of Day. If Time of Day is correct, skip to P. SET HARDNESS. • Press Up button to show flashing Hours. Please note it is a 24hr clock. •... -
Page 9: Blending Control
/ SALT FILL LEVEL FILL LEVEL / R. EXTRA REGENERATIONS • To start an automatic regeneration, press the left hand button and release, the display will count down from 15 to zero. If at any time you wish to cancel the count down, simply press again. -
Page 10: Going On Holiday
/ GOING ON HOLIDAY? • Fig 4 shows the Rapid-Fit bypass in the Service position. This is the normal operating position. • We highly recommend you bypass your softener and turn off the electrics when going away on holiday. • Simply press the central plunger from Service to Bypass as (See Fig 3) shown by the arrows on the unit and confirmed by the diagrams below. - Page 11 / HINTS AND TIPS ABOUT YOUR NEW WATER SOFTENER 1. Make sure the electricity supply is not turned off, unless on holiday mode. 2. Please ensure that any appliances (washing machine etc.) used during ‘Economy 7’ time, do not begin their cycle between 11pm and 5am. 3.
-
Page 12: Service Care
/ MONARCH WATER DOMESTIC WATER SOFTENER WARRANTY Effective June 2020 This water softener is fully covered by 7 year parts and 2 years ‘at home’ labour warranty for installation within the hard water regions of mainland England and Wales as detailed on Monarch’s National Service Coverage Area, from date of original purchase. - Page 13 / MONARCH NATIONAL SERVICE COVERAGE AREAS All postcodes within England and Wales are automatically covered by a parts and labour warranty as set out in the relevant brochure for the individual model/range. / IMPORTANT Water softeners sold outside of England and Wales are to be strictly covered by a parts only ‘exchange’...
