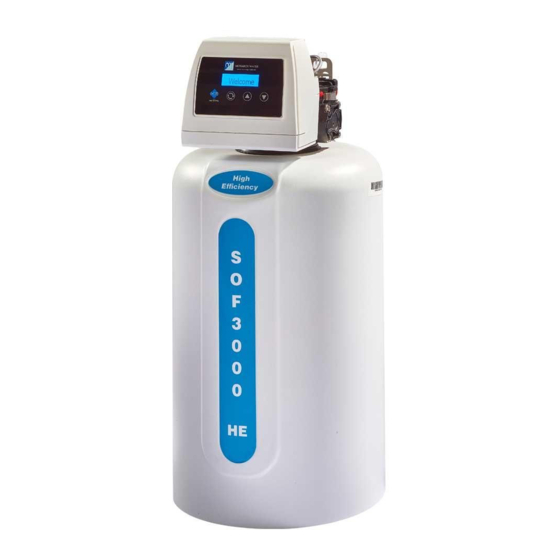

SOF3000 HE
INSTALLER AND USER
GUIDE
Effective 1st September 2020
'NEVER KNOWINGLY BETTERED'
MONARCHWATER.CO.UK
01986 784759
INFO@MONARCHWATER.CO.UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOF3000 HE and is the answer not in the manual?

Questions and answers

Summary of Contents for Monarch Water SOF3000 HE

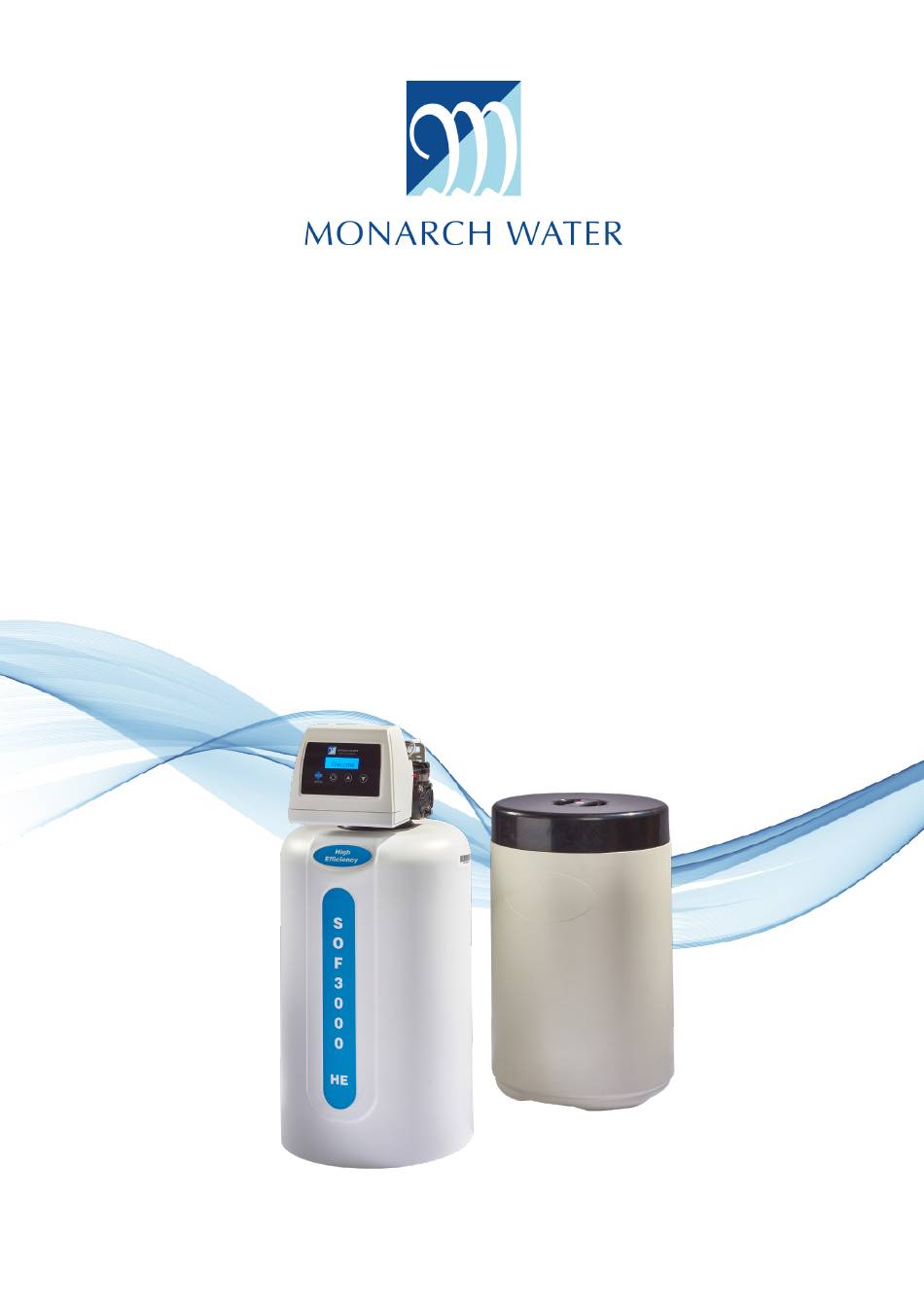

  • Page 1 SOF3000 HE INSTALLER AND USER GUIDE Effective 1st September 2020 ‘NEVER KNOWINGLY BETTERED’ MONARCHWATER.CO.UK 01986 784759 INFO@MONARCHWATER.CO.UK...
  • Page 2: Planning The Installation

    MONARCH FREEFLOW SERIES WATER SOFTENER PROGRAMMING & INSTALLATION INSTRUCTIONS Thank you for choosing our water softener. Please read the following carefully, which if followed correctly, should ensure the installation is trouble free. A. PLANNING THE INSTALLATION - Always observe the water byelaws. - Ensure there is only one rising main.
  • Page 3 G. INSTALL RAPID-FIT BYPASS Form an installation as per Fig 1 below Power Fig 1. CHECKLIST Water pressure 1.5 - 5 bar (20 - 70psi) Access to drain Access to incoming water supply Installation preferably on an outside wall for the overflow Access to 3 pin socket Easy access to fill unit with salt MONARCHWATER.CO.UK...
  • Page 4: Inlet & Outlet Connections

    H. INLET & OUTLET CONNECTIONS - Remove grey retaining clips and also BSP connection points. Connect hoses to male BSP connection points, tighten to seal, then reinsert BSP connection points back into valve body. Fit grey clips. The connection points are designed to rotate once inserted in valve body. This removes any stress/pressure placed upon the angle/direction of hoses when connecting same to Rapid-Fit bypass.
  • Page 5: Electrical Connection

    K. TEST INSTALLATION FOR LEAKS - Place Rapid-Fit bypass in Bypass position by pushing plunger as per directional arrow - see Fig 3. - Open mains stopcock slowly to flush the new pipe work. This can be done using a ‘soft’ mains tap, i.e.
  • Page 6: Set Water Hardness

    P. SET WATER HARDNESS - Wait until display changes to Hardness. - Press Up Button to show Set Hardness with no flashing. - Use Up Button to set number as determined by your water hardness test. - Press to confirm setting. Up to 30 drops advance electronic display to 30 (rec min setting) 31-35 drops...
  • Page 7: Further Information

    R. EXTRA REGENERATIONS - To start an automatic regeneration, press the left hand button and release, the display will count down from 15 to zero. If at any time you wish to cancel the count down, simply press again. - An automatic regeneration will start shortly. S.
  • Page 8: Going On Holiday

    GOING ON HOLIDAY? - Fig 5 shows the Rapid-Fit bypass in the Service position. This is the normal operating position. - We highly recommend you bypass your softener and turn off the electrics when going away on holiday. - Simply press the central plunger from Service to Bypass as (See Fig 4) shown by the arrows on the unit and confirmed by the pics adjacent.
  • Page 9 Hints and Tips about your new water softener ... 1. Make sure the electricity supply is not turned off, unless on holiday mode. 2. Please ensure that any appliances (washing machine etc.) used during ‘Economy 7’ time, do not begin their cycle between 11pm and 5am.
  • Page 10: Service Care

    MONARCH WATER DOMESTIC WATER SOFTENER GUARANTEE Effective 1st January 2020 This water softener is fully covered by 7 year parts and 2 years ‘at home’ labour guarantee for installation within the hard water regions of England & Wales, as detailed on Monarch’s National Service Coverage Area, from date of original purchase.
  • Page 11 Monarch National Service Coverage Areas - Effective 1st September 2020 Your Monarch HE water softener is fully covered by a 7 year parts and 2 year labour guarantee in all hard water areas of England & Wales. IMPORTANT Water softeners sold outside these areas, are strictly covered by a parts only ‘exchange’ guarantee as determined by the model/range of softeners i.e.
  • Page 12 (our Platinum service), simply call our main number below and select Option 2 for Service. We will then forward details of all our service plans for your consideration. Once again thank you for supporting Monarch Water. Yours faithfully, MONARCH WATER LTD Effective 1st September 2020 MONARCHWATER.CO.UK...
