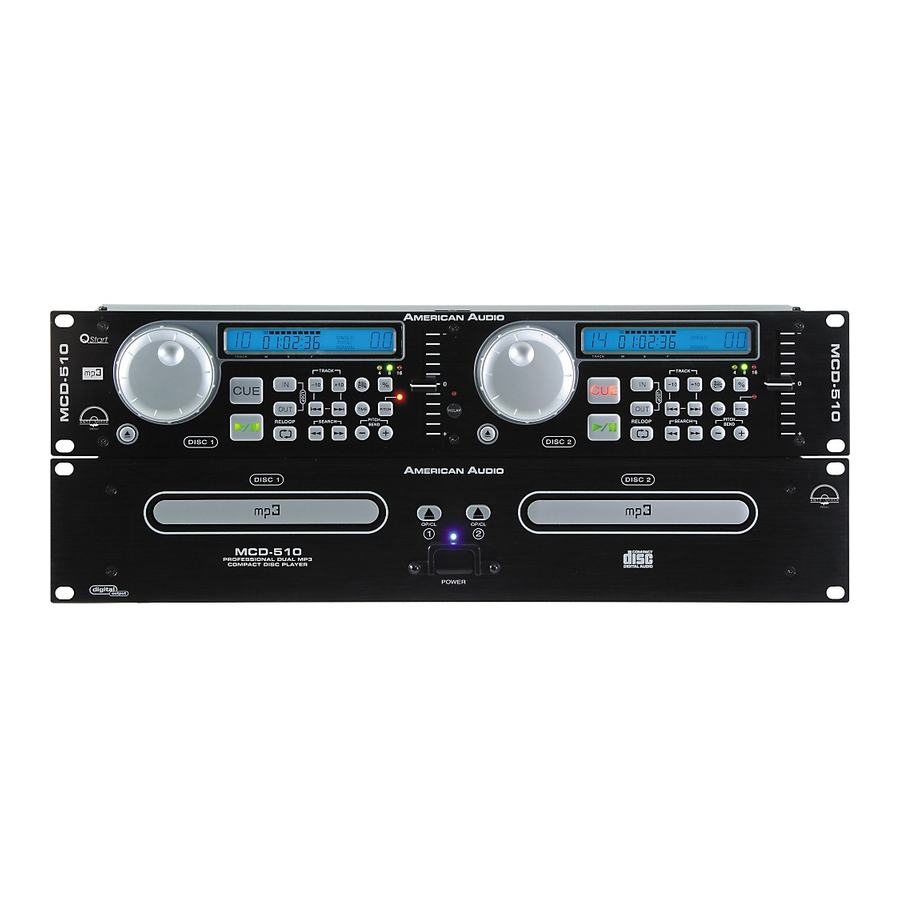

American Audio MCD-510 Operating Instructions Manual

Professional dual mp3 compact disc player
Hide thumbs Also See for MCD-510:
Table of Contents

Advertisement

Quick Links

See also: User Manual

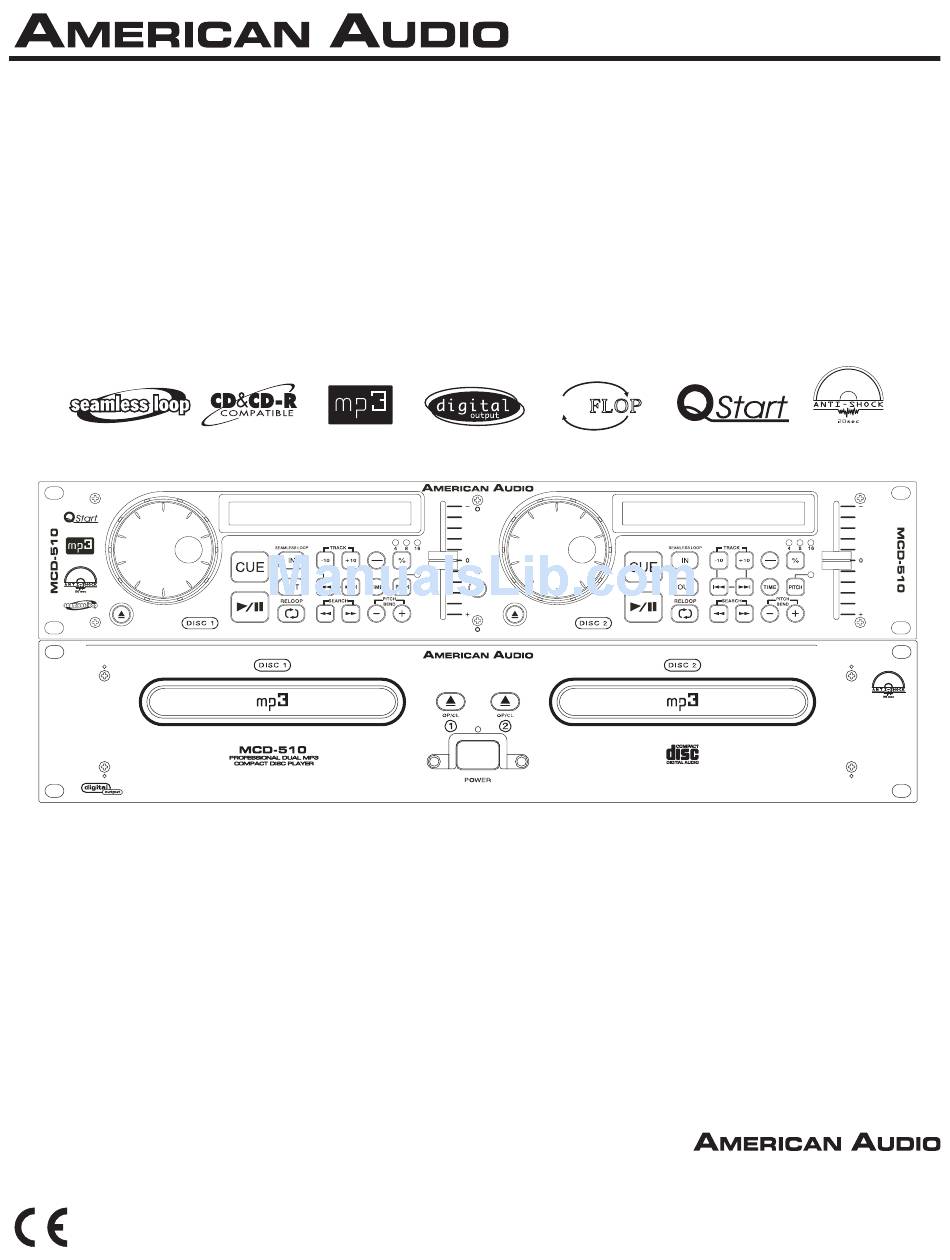

MCD-510
Professional Dual Mp3
Compact Disc Player
S G L
C T N
SINGLE
TOTAL
REMAIN
TRACK
M
S
F

Operating Instructions

FLIPFLOP
S G L
C T N
4295 Charter Street
Los Angeles Ca. 90058
www.americanaudio.us
Rev. 8/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD-510 and is the answer not in the manual?

Questions and answers

Related Manuals for American Audio MCD-510

Summary of Contents for American Audio MCD-510

  • Page 1: Operating Instructions

    Operating Instructions MCD-510 Professional Dual Mp3 Compact Disc Player FLIPFLOP S G L S G L C T N C T N SINGLE TOTAL REMAIN TRACK 4295 Charter Street Los Angeles Ca. 90058 www.americanaudio.us Rev. 8/06...

  • Page 2: Table Of Contents

    SHUT DOWN PROCEDURES......................20 HANDLING COMPACT DISC.......................20 WARRANTY............................21 SPECIFICATIONS..........................22 CHECK THE AMERICAN AUDIO WEBSITE FOR DOWNLOADABLE USER SOFTWARE UPDATES. FOR BEST CD-R DISC PLAYBACK RESULTS IN THIS CD PLAYER PLEASE FOLLOW THESE GUIDELINES: 1. High quality CD-R Audio discs (should conform to the standards of the Orange Book 2).

  • Page 3: Safety Precautions

    BE ADJUSTED OR REPAIRED BY ANYONE receiver is connected. EXCEPT PROPERLY QUALIFIED SERVICE – Consult the dealer or an experienced radio/ PERSONNEL. TV technician for help. American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 3 © ®...

  • Page 4: Important Safety Instructions

    (NEC SECTION 810-21) used for a long period of time. EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 4 © ®...

  • Page 5: Product Information

    Use a soft cloth to WARRANTY INFORMATION wipe any residual cleaner. Never use volatile The MCD-510™ carries a ONE year (365 days) cleaners such as benzene, solvent, or thinner limited warranty. This warranty covers parts to clean your unit, these cleaners will damage and labor.

  • Page 6: Customer Support

    Be sure main power is connected last to prevent any electrical damage. AUDIO CONNECTIONS: Use the included RCA cable to connect the MCD-510™ outputs to the line inputs of a mixer. Never connect a CD player's output to a mixers "phono" inputs.

  • Page 7: Features

    Start” control. Connect your MCD-510 as described in the set-up section of this manual. After set-up is completed, insert CD's in to both drives. By moving the mixer’s crossfader from left to right you can start and pause your MCD-510 playback functions.

  • Page 8: Remote Unit

    6. The LCD icons will be described in the next section. 3. PITCH SLIDER - This slider is used to adjust the playback pitch percentage when the PITCH (12) American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 8 © ®...
  • Page 9 16%. 13. PITCH BEND BUTTONS - (-) PITCH BEND - The (-) pitch bend function creates a momentary “Slow Down” in the CD’s pitch American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 9 © ®...
  • Page 10 CD unit to the CONTROL out jack of a compatible American Audio or American DJ ® ® mixer. This will enable the CD "Q-Start" function. This feature is only available on American Audio ® or American DJ “Q” series mixers.

  • Page 11: Player Unit

    27. DRIVE 1 AUDIO OUT R & L - These jacks send a left and right analog mono output signal. Use these jacks to send standard audio to a mixer or receiver. The red colored jack represents the right American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 11 © ®...
  • Page 12 33. DRIVE 2 DIGITAL OUT - This jack sends a digital stereo out signal. Use this connection to cre- ate near perfect copies of your disc to a Mini disc, CD-R, or any other recording device with a digital input. American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 12 © ®...

  • Page 13: Liquid Crystal Display

    42. TRACK INDICATOR - This double digit indicator details a current track. The number displayed in the track indicator is a direct reference to a track being selected for programming or a track in play, pause, or cue mode. American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 13 © ®...

  • Page 14: Basic Operation

    2. LOADING DISCS 3 in. / 8cm disc The MCD-510 can play both 3 inch (8 cm) and 5 inch (12 cm) compact discs (CD’s). Odd shaped and oval CD’s are not compatible. When loading a CD into the unit always hold the disc by its' edges and place it in the disc tray. Never touch the signal surface (the glossy side).

  • Page 15: Adjusting Time Display

    To use the PITCH SLIDER (3) slide the slider up and down. Down will increase the pitch and up will decrease the pitch. SINGLE TOTAL REMAIN Figure 12 TRACK American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 15 © ®...

  • Page 16: Pitch Bending

    TOTAL REMAIN will slow your track pitch. The speed you rotate the TRACK JOG WHEEL (1) will determine pitch bend percentage (%). Figure 15 American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 16 © ® SINGLE TOTAL REMAIN TRACK...

  • Page 17: Creating And Playing A Loop

    4) Press the RELOOP BUTTON (15) to reactivate the Seamless loop. Press the OUT BUTTON (10) S G L to deactivate the loop. C T N SINGLE TOTAL REMAIN TRACK Figure 19 American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 17 © ®...

  • Page 18: Relay (Flip-Flop)

    This feature is a kind of “auto pilot. " “Flip-Flop™” mode can only function with the both drives of the MCD-510. The "Flip-Flop" function can work with the player connected to a mixer, but it will only work with an American Audio® or American DJ® “Q” Start mixer. Also, the "Flip-Flop" function can work with the cd player connected directly to speakers, without the mixer.
  • Page 19 MADE IN CHINA BOOTH TRIM OUTPUT SINGLE TOTAL REMAIN TRACK AUX/IN "FLIP-FLOP" (RELAY) CONNECTED DIRECT TO SPEAKERS S G L S G L C T N C T N American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 19 © ®...

  • Page 20: Shut Down Procedures

    Areas exposed to direct sunlight for a considerable time. b) Areas subject to accumulation of dust or high humidity. c) Areas affected by heat from indoor heaters, etc. American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 20 © ®...

  • Page 21: Warranty

    ® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American Audio under ® this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American Audio .

  • Page 22: Specifications

    ITEM NOMINAL LIMIT CONDITION Interruption 0.7m TCD-725 Black dot 0.6mm TCD-725 Finger prints 75um 65um TCD-725 Eccentricity 140um 140um TCD-712, W/O TRACK JUMP Vertical deviation 0.5mm TCD-731R PICK-UP American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 22 © ®...
  • Page 23 System Object lens drive system optical pick-up Object lens drive system 2 dimensional parallel drive Tracking detection 3 spot beam detection Optical source Semiconductor laser Wave length 780nm American Audio - www.AmericanAudio.us - MCD-510™ Instruction Manual Page 23 © ®...
  • Page 24 ©American Audio® A Division of the American DJ® Group of Companies American Audio® World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americanaudio.us E-mail: info@americanaudio.us...
