Summary of Contents for Growatt MIC 1500TL-X
- Page 1 Installation & Growatt New Energy Operation Manual Download Manual Shenzhen Growatt New Energy Co., Ltd 4-13/F,Building A,Sino-German(Europe) Industrial Park, Hangcheng Ave,Bao’an District, Shenzhen, China +86 0755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-196 A-03...
- Page 2 Index Notes on this manual 1.1 Validity 1.2 Target Group 1.3 Additional information 1.4 Symbols in this document 1.5 Glossary 2 Safety 2.1 Intended Use 2.2 Qualification of skilled person 2.3 Safety instruction 2.4 Assembly Warnings 2.5 Electrical Connection Warnings 2.6 Operation Warnings 3 Product Introduction 3.1 TL-X Overview...
- Page 3 6 Electrical connection Trouble shooting 11.1 Error Messages displayed on 6.1 Safety OLED 6.2 Wiring AC Output 11.2 System fault 6.3 Connecting the second protective 11.3 Inverter warning conductor 11.4 Inverter fault 6.4 Connecting the PV Array(DC input) 6.5 Connecting signal cable 6.6 Grounding the inverter 6.7 Active power control with smart meter , CT or ripple control signal...
-
Page 4: Notes On This Manual
Alternating Current (AC) destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. Read the manual... -
Page 5: Intended Use
Principle of a PV plant with this MIC TL-X single-phase inverter precautions must be observed when installing and operating this inverter. Read and follow all instructions, cautions and warnings in this installation manual. If questions arise, please contact Growatt's technical services at +86 (0)755 2747 1942. -
Page 6: Assembly Warnings
Persons with limited physical or mental abilities may only work time. Ø with the Growatt inverter following proper instruction and under constant supervision. Children are forbidden to play with the Growatt inverter. Must keep the Growatt inverter away from children. -

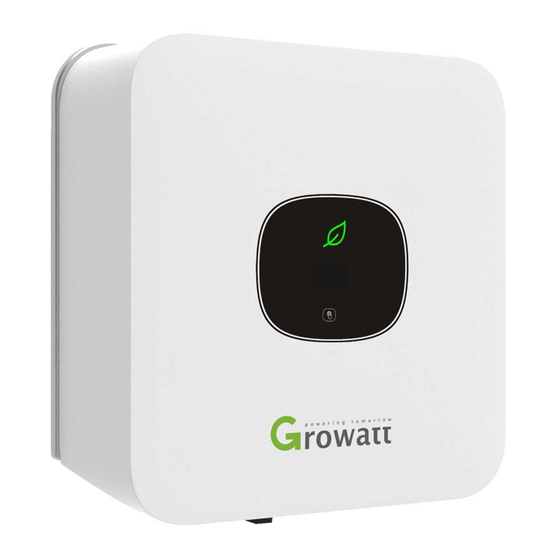

Page 7: Product Description
3 Product description 3.1 MIC TL-X Overview Symbol on the inverter Symbol Description Explanation Touch button.We can switch the OLED Touch symbol display and set parameter by touching. Indicates inverter operation status: Red:Fault. Inverter status Green:Nomal. symbol Red leaf flash:Warning or DSP Programming. Green leaf flash:M3 Programming. -
Page 8: Size And Weight
If there are a batch of inverters need to be stored, the maximum layers for original Ø carton is ten. MPP voltage range 65V~550V After long term storage, local installer or service department of GROWATT should Ø AC nominal voltage 230V perform a comprehensive test before installation. -
Page 9: Unpacking And Inspection
Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary. Ø Growatt assumes no responsibility for compliance to EMC regulations for the complete system Ø All electrical installations shall be done in accordance with the local and national electrical codes. -
Page 10: Selecting The Installation Location
5.2 Selecting the installation location Ø This is guidance for installer to choose a suitable installation location, to avoid potential damages to device and operators. Ø The installation location must be suitable for the inverter's weight and dimensions for a long period time. Select the installation location so that the status display can be easily viewed. -
Page 11: Fixed The Inverter On The Wall
5.3.2 Fixed the inverter on the wall Ø Please make sure the inverter is installed at the right place.The inverter can't install close to trunk. Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking. -
Page 12: Electrical Connection
We suggest you choice the AC breaker rating current in this table: MIC 600TL-X 5A/230V MIC 750TL-X 5A/230V 10A/230V MIC 1000TL-X MIC 1500TL-X 10A/230V MIC 2000TL-X 16A/230V MIC 2500TL-X 16A/230V MIC 3000TL-X... - Page 13 Unlock the housing Lock the housing Wire suggestion length Max. cable length Conductor cross section MIC 1500TL-X MIC 600TL-X MIC 750TL-X MIC 1000TL-X Lock the housing 2 mm² 14AWG 3.3 mm² 12AWG 150m 120m Max. cable length Conductor cross section...
-
Page 14: Connecting The Second Protective Conductor
6.3 Connecting the second protective conductor In some installation countries, a second protective conductor is required to prevent a touch current in the event of a malfunction in the original protective conductor.For installation countries falling within the scope of validity of the IEC standard 62109, you must install the protective conductor on the AC terminal with a conductor cross-section of at least 10 mm²Cu.Or Install a second protective conductor on the earth terminal with the same cross-section as the original protective conductor on the AC terminal. -
Page 15: Connecting Signal Cable
Connection of PV terminal Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal. 6.5 Connecting signal cable Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the inverter. This series inverter has one 8 Pin signal connector. -
Page 16: Grounding The Inverter
Step 2 Insert the H type tool and pull it out from the socket. Active power control with a Radio Ripple Control Receiver(RRCR). 6.8 Inverter demand response modes (DRMS) 6.6 Grounding the inverter This series inverter has the function of demand response modes, We use RJ45 terminal as The inverter must be connected to the AC grounding conductor of the power distribution inverter DRED connection. - Page 17 6.8.2 Method of asserting demand response modes 6.8.3.2The inverter is preconfigured to the following RRCR power levels: Socket Asserted DRMs DRMs DRMs DRMs Active power Cos( ) φ Function Mode by shorting pins Connector Pin1 Connector Pin2 Connector Pin3 Connector Pin4 DRM 0 Operate the disconnection device Short circuit...
-
Page 18: Start The Inverter
Commissioning 7 The inverter has large electrical potential differences between its conductors. Arc flashes can occur through air when high-voltage current flows. Do not work on the product during operation. Do not disconnect the DC connectors under load. When the inverter error 200, please follow the steps: DANGER 6.9.3 Operation step Improper operation during the wiring process can cause fatal... -
Page 19: General Setting
Growatt Set Country Set parameter PV inverter XXXX If we touch the touch button to scroll through the different countries the screen will constantly change.For example,if you want to choose Newzealand,touch the touch General button until the OLED panel shows "Newzealand" as below:... -
Page 20: Advanced Setting
7.3 Advanced setting General Password Set parameter 7.3.1 Reset Country Advanced Single touch to switch display or make the number +1. Double touch to confirm you setting. The password of advanced setting is 123. General Password Set parameter Advanced Reset factory Set OK 7.4 Communications Set Country... -
Page 21: Start-Up And Shut Down The Inverter
•2011/65/EU RoHS Directive and its amendment (EU)2015/863 1. Connect the AC breaker of the inverter. Shenzhen Growatt New Energy Technology Co. Ltd confirms that the Growatt inverters 2.Turn on the dc switch, and the inverter will start automatically when the input voltage and accessories described in this document are in compliance with the above mentioned is higher than 70 V. -
Page 22: Troubleshooting
An error message will be displayed on the OLED screen when a fault occurs. The faults properly. consist of system fault and inverter fault. 3. Check if the DC breaker gets You may be advised to contact Growatt in some situation, please provide the following wet. PV Isolation Low information. -
Page 23: Inverter Warning
2.If error message still exists,contact DC SPD function abnormal Error: 200 AFCI fault 2.Restart inverter. manufacturer. 3.If error message still exists,contact Growatt. Check the PV panel polarity. Restart inverter, if problem still exist, Error: 402 Output High DCI Restart the inverter. If the warning Contact Growatt. -
Page 24: Manufacturer Warranty
12 Manufacturer Warranty Technical Data 14 14.1 Specification Please refer to the warranty card. Model 600TL-X 750TL-X 1000TL-X 1500TL-X Specifications Input data(DC) 13 Decommissioning Max. recommended PV 840W 1050W 1400W 2100W power(for module STC) 13.1 Dismantling the Inverter 500V Max. DC voltage 1. - Page 25 Display Adjustable power factor 0.8leading… 0.8lagging OLED+LED Integrated THDi <3% RS485/USB Optional AC grid connection type Single phase WIFI/GPRS/4G/LAN/ RF AC overvoltage category Category III Warranty:5/10 years Yes/ Optional Efficiency Max. efficiency 96.5% 97.4% 97.4% 97.4% Euro-eta 96.0% 96.5% 96.5% 97.0% Model 3300TL-X...
- Page 26 Noise emission (typical) ≤ 25 dB(A) Max output fault current Altitude 4000m Max output overload protection Internal consumption at night <0.5W Backfeed current Topology transformerless P o w e r f a c t o r ( @ n o m i n a l Cooling Natural convection >0.99...
-
Page 27: Compliance Certificates
Shine LAN-X LAN monitor with USB interface Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age. The warranty shall not cover transportation costs in connection with the return of defective modules .
