We greatly appreciate your purchase of the unit
Be sure to take maximum advantage of all the unit has to offer, read these
instructions carefully and use the set properly. Be sure to keep this manual
for future reference, should any questions or problems arise.

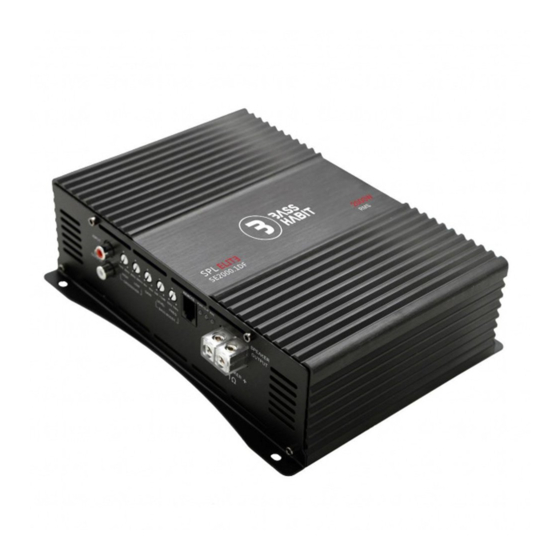

SE600.1DF
SE1000.1DF
SE2000.1DF
SE3000.1DF
Advertisement
Table of Contents
Related Manuals for Bass Habit SE1000.1DF
Summarization of Contents
POWER/SPEAKER CONNECTION
Ground Connection (GND)
Connect the amplifier's Ground (GND) terminal to a solid point on the vehicle's metal chassis.
Power Connection (+12V)
Connect a wire directly to the vehicle's positive battery terminal, install an appropriate fuse and holder.
Remote Connection (REM)
Connect the amplifier's Remote (REM) terminal to the source unit's remote turn-on lead.
Speaker connections (SPEAKER OUTPUT)
Connect speaker wires using minimum 1.25 mm2/16 gauge wire; minimum impedance load is 1 ohm.
FRONT PANEL CONTROLS
Line Input
Connect the line outputs from your source unit to the Line L and R inputs.
Line Output
Equipped with full-range output for connecting additional amplifiers.
Input Level Control (GAIN)
Adjustable GAIN control (0.2V-6V) for optimal input sensitivity and sound.
Bass Boost Control
Adjustable Bass Boost (0-12 dB, 35-70 Hz) for enhancing bass frequencies.
LPF Crossover (LPF)
Low Pass Filter adjustable (80Hz - 20KHz) for subwoofer frequency selection.
HPF Crossover (HPF)
High Pass Filter adjustable (15Hz–80Hz/1KHz) for setting crossover points.
Remote Level Control (REMOTE)
Subwoofer remote volume control for adjusting level from listening position.
SPECIFICATIONS
SE600.1DF Specifications
Detailed technical specifications for the SE600.1DF amplifier model.
SE1000.1DF Specifications
Detailed technical specifications for the SE1000.1DF amplifier model.
SE2000.1DF Specifications
Detailed technical specifications for the SE2000.1DF amplifier model.
SE3000.1DF Specifications
Detailed technical specifications for the SE3000.1DF amplifier model.
