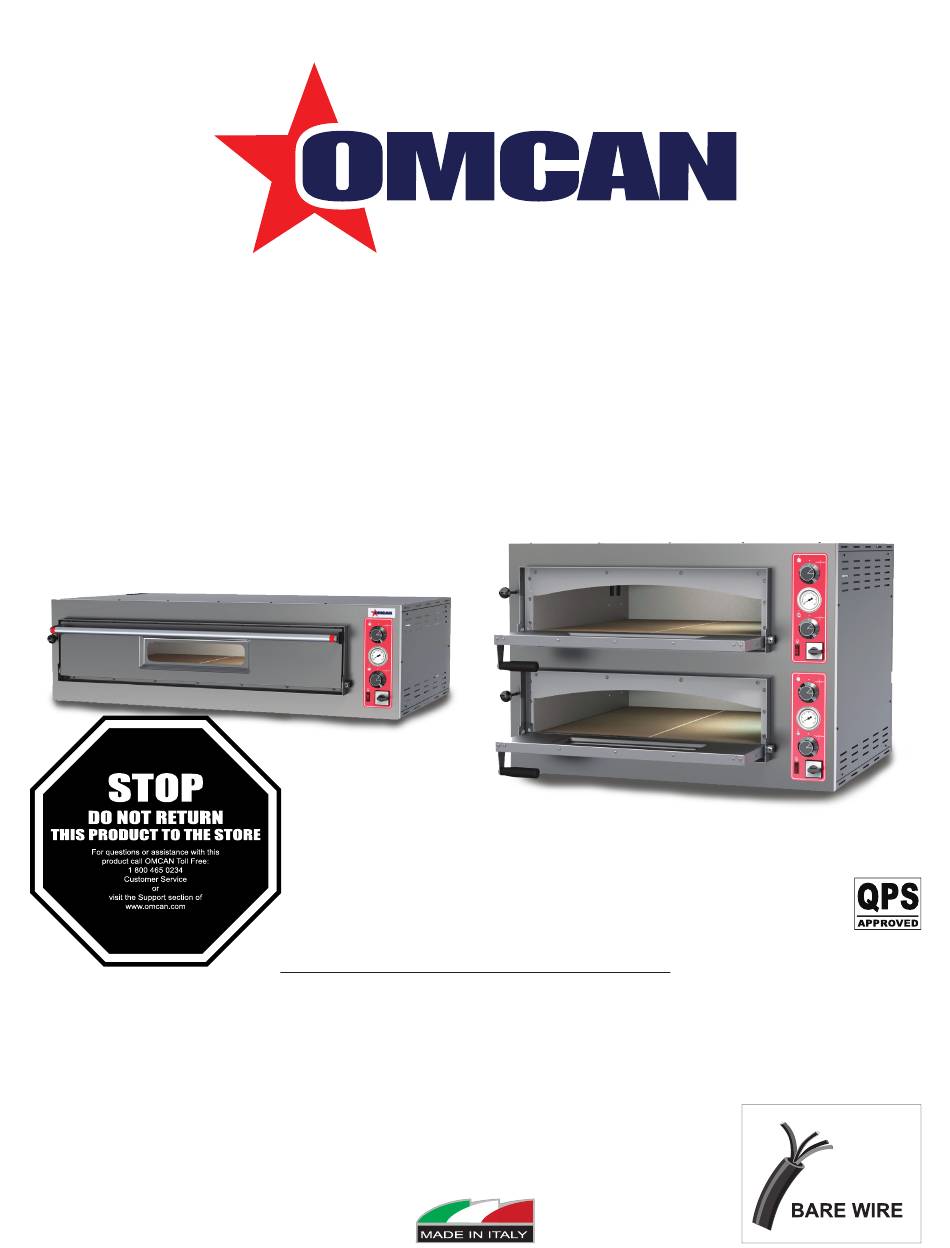

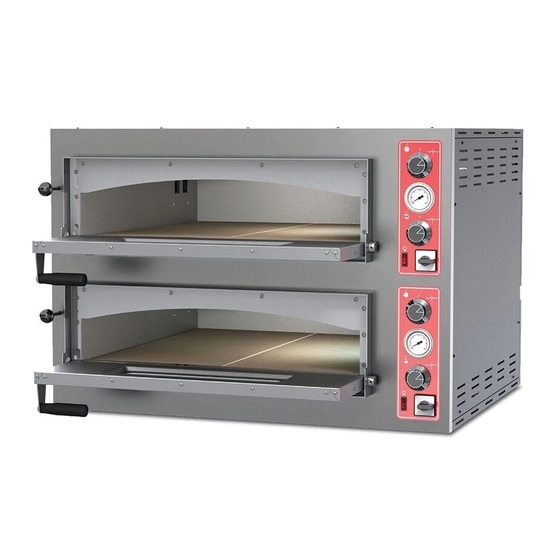

- Page 1 Pizza Ovens Models PE-IT-0019-S, 0038-D Items 40635, 40636 Instruction Manual Revised - 12/13/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PE-IT-0019-S / Model PE-IT-0038-D Section Page General Information ----------------------------------------------------------------------------------------- 3 - 4 Safety and Warranty ---------------------------------------------------------------------------------------- 4 - 6 Technical Specifications ---------------------------------------------------------------------------------------- 6 Installation ---------------------------------------------------------------------------------------------------------- 7 Operation ------------------------------------------------------------------------------------------------------ 7 - 8 Maintenance -------------------------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Disconnect electrical power before intervening on electrical or electronic parts and connectors. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model PE-IT-0019-S PE-IT-0038-D Maximum Temperature 450°C / 842°F Electrical 220V / 60Hz / 3Ph Power... -
Page 7: Installation
Installation Installation must be executed by qualified personnel in compliance with local regulations. EQUIPMENT HOOK-UP The oven is not provided with power supply cable. When connecting the appliance electrically, an automatic RCD must be interposed with an opening distance between contacts of at least 3 mm. To connect the appliance electrically it is essential to proceed in the following way: •... -
Page 8: Operation
Operation FIRST LIGHTING OF THE OVEN At the first use of the appliance it is advisable to heat the empty oven to eliminate bad smells caused by the refractory stones evaporation and the inner metallic parts. Procedure: • Fully open the exhauster valve. •... -
Page 9: Troubleshooting
Maintenance ORDINARY MAINTENANCE FOR THE USER As any equipment also our ovens requires simple, frequent and careful cleaning to ensure efficient, regular functioning. It is recommended to never use chemical products which are not specific for food preparation areas, abrasives or corrosives for any reason. Avoid by all means using water jets, tools, rough or abrasive instruments, such as steel wool, brillo sponges or any other item which could damage the surface of the machine, and especially those that could compromise health safety. - Page 10 Description Number Pizza Oven Entry Max Series 40635 PE-IT-0019-S Single Chamber 27.5” x 27.5” x 5.9” ENTRY MAX 4 220/60/3 cQPSus Pizza Oven Entry Max Series 40636 PE-IT-0038-D Double Chamber 27.5” x 27.5” x 5.9” ENTRY MAX 8 220/60/3 cQPSus...
-
Page 11: Parts Breakdown
Parts Breakdown Model PE-IT-0019-S 40635 Model PE-IT-0038-D 40636... - Page 12 Parts Breakdown Model PE-IT-0019-S 40635 Model PE-IT-0038-D 40636...
- Page 13 Parts Breakdown Model PE-IT-0019-S 40635 Model PE-IT-0038-D 40636...
- Page 14 76650 AC198 MAX 4 ENTRY MAX 4 Resistor 2800 W 230 V Prime for ENTRY Red Single-Pole Switch for ENTRY 76612 42048 MAX 4 MAX 4 Model PE-IT-0038-D 40636 Item No. Description Position Item No. Description Position Item No. Description...
-
Page 15: Electrical Schematics
Electrical Schematics Model PE-IT-0019-S 40635... - Page 16 Electrical Schematics Model PE-IT-0038-D 40636...
-
Page 17: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 18 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
