Installation

1. Power off the computer and all drives, enclosures, and system components. Remove
the power cord from the computer.
2. Remove the chassis cover and access the PCI Express add-in card slots. See your
server chassis documentation for instructions.
3. Align the controller's connector with a x8 or x16 PCI Express* slot on the server
board.
4. Press down gently but firmly to ensure that the card is properly seated in the slot, as
shown in

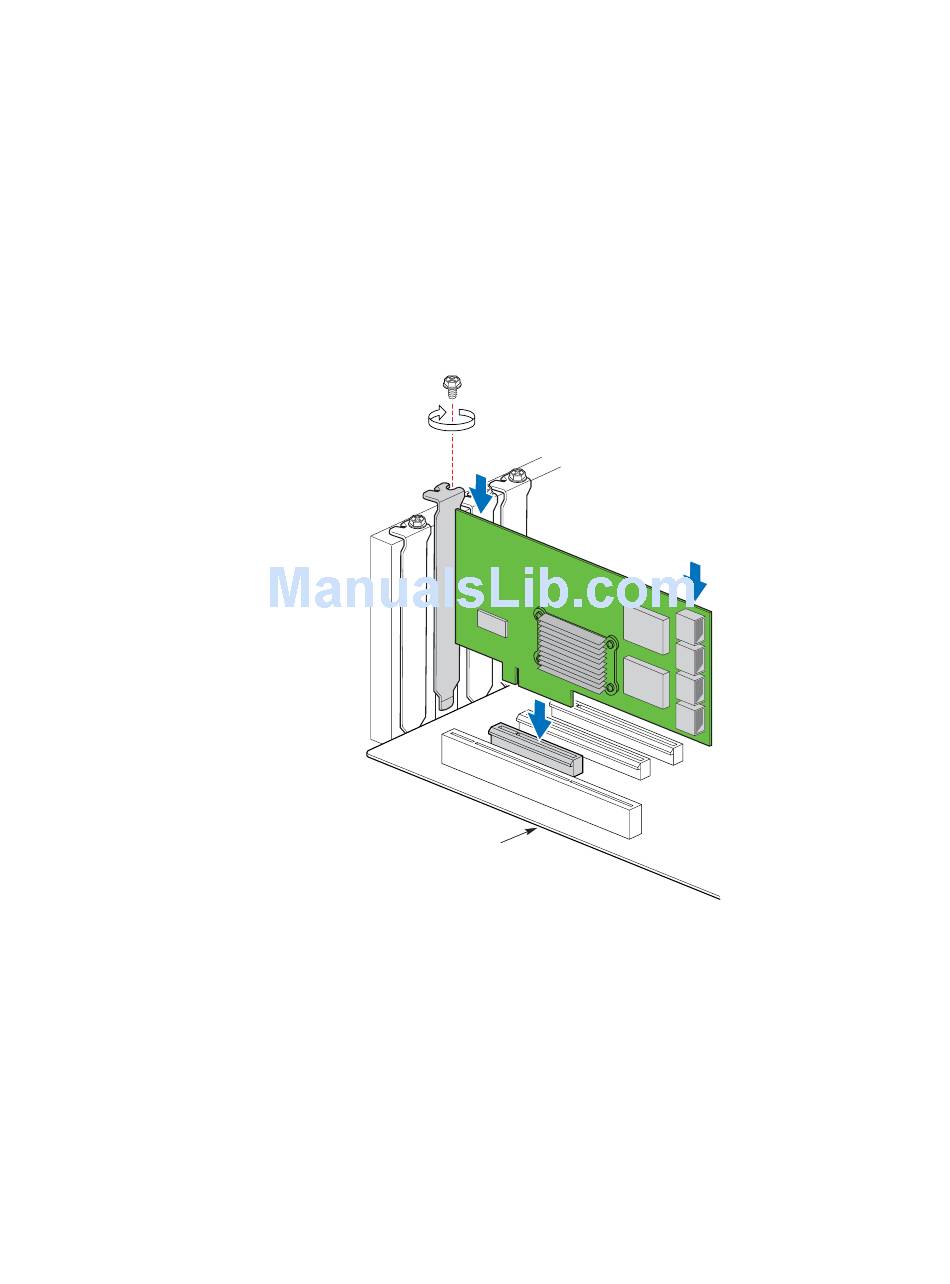

Figure 1. Inserting the Intel
5. Connect the provided internal cables into the adapter using the 4-port combined end.
Make sure the controller and cables are properly attached.
Intel® RAID Controller SRCSASPH16I Hardware Guide
Figure 1. Secure the bracket to the computer chassis.
Bracket Screw
P r e
Edge of
Main Board
PCI Express* Slot
s s
H e r
e
®
RAID Controller SRCSASPH16I into a
P r e
s s
H e r
e
AF002644
