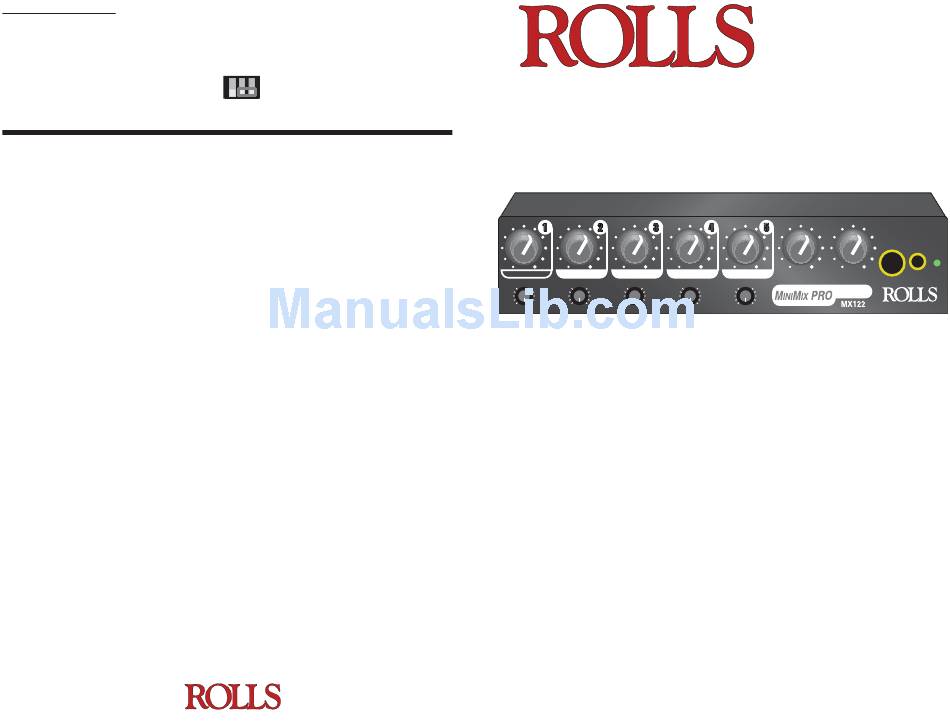

Rolls MINIMIX MX122 Quick Start Manual

PHANTOM POWER

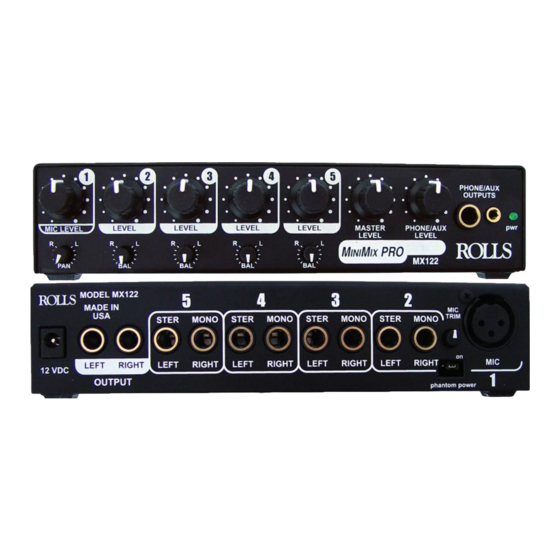

The MX122 Phantom Power is applied to the XLR input when the jumper con-
nects the right two pins as you face the rear of the unit. Shown is an example of
the Phantom Power connected.
on
phantom power
ROLLS CORPORATION
SALT LAKE CITY, UTAH
MiniMix Pro Mixer
LEVEL
MIC LEVEL
R L R L
PAN BAL
SPECIFICATIONS
Input Impedance:
Phantom Power Voltage:
Output Impedance:
Max Input Level:
Phase Shift:
Connectors:
Max Gain:
Mic CMRR:
S/N Ratio:
THD
IMD (SMPTE)
Self Noise:
Power
Size:
Weight:
12/10
MX122
LEVEL LEVEL LEVEL MASTER
LEVEL
R L R L R L
BAL BAL BAL
Line: 10 K Ohms unbal.
Mic: 10 K Ohms bal.
+12 VDC
50 Ohms bal
+24 dBV line, -8 dBV microphone
< 10 deg. 20 Hz - 20 kHz
8: 1/4" TS Inputs, 1: XLR Mic Input
3: 1/4" TRS, 1: 1/8" (3.5mm) Outputs
26 dB Line
26 dB Aux
80 dB Mic
95 dB
>90 dB
< .004%
< .004%
< - 82 dB
12 VDC
8.4" x 1.7" x 5"
(21.3 x 4.3 x 13 cm)
2.5 lbs (1.14 kg)
PHONE/AUX
OUTPUTS
pwr
PHONE/AUX
LEVEL

Quick Start Guide
