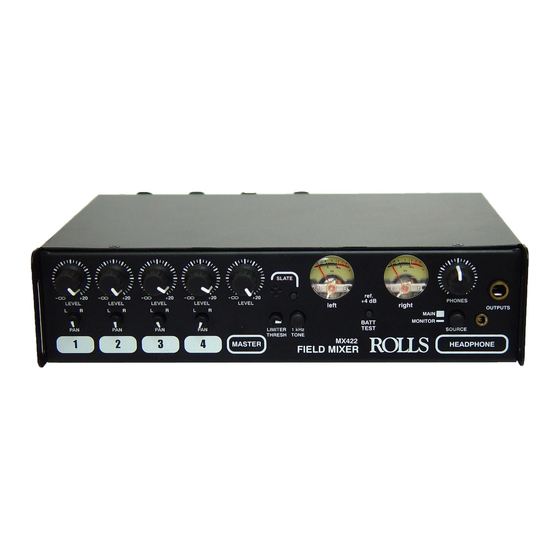

MX422
Field Mixer
12 VDC
+
-
MONITOR
LEFT
RIGHT
AUX
INPUT
OUTPUT
OUTPUT
INPUT
- 30 dB
POWER
phan
LINE
MODEL MX422
SERIAL NUMBER
BATTERY
SELECT
NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF AUDIO ELEC-
TRONICS, BALANCED AND UNBALANCED CONNECTIONS, AND PROPER SIGNAL LEVEL
SETTINGS.
PUSH
PUSH
PUSH
PUSH
trim
trim
trim
INPUT
INPUT
INPUT
INPUT
low cut
phan
low cut
phan
low cut
phan
4
3
2

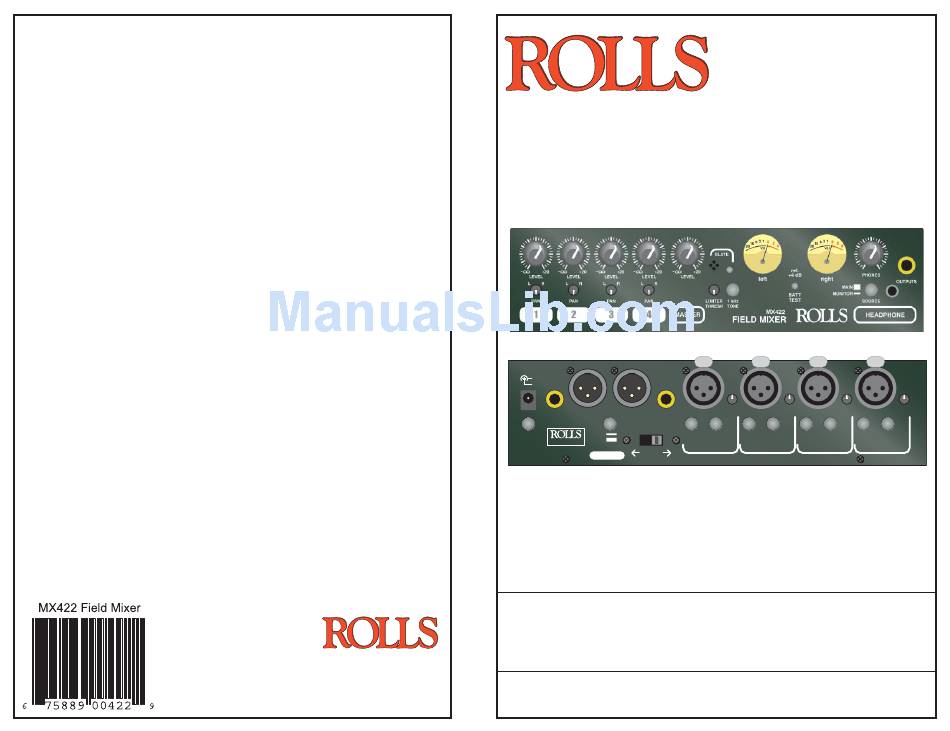

Quick Start Guide
trim
low cut
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX422 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rolls MX422

Summary of Contents for Rolls MX422

  • Page 1 LINE MODEL MX422 SERIAL NUMBER BATTERY SELECT NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF AUDIO ELEC- TRONICS, BALANCED AND UNBALANCED CONNECTIONS, AND PROPER SIGNAL LEVEL SETTINGS. ROLLS CORPORATION SALT LAKE CITY, UTAH Quick Start Guide 4/12...

  • Page 2: Table Of Contents

    INTRODUCTION SCHEMATIC Thank your for your purchase of the Rolls MX422 Field Mixer; Professional ENG mixer. Please read and review this manual carefully as it contains important information regarding the proper use and care of the MX422. INSPECTION 1. Unpack and inspect the MX422 box and package.

  • Page 3: Features

    BATT TEST button. Connectors: 4 ea. Female XLR, 2 ea. Male XLR, 3 ea. 1/4”, For AC power, Rolls provides the model # PS27s VDC supply to power the MX422. 1 ea. 1/8” (3.5mm), 1 Center Negative power jack. Power: VDC / 200 mA min.

  • Page 4: Quick Start Guide

    +/- 0.1 dB between the left and right output in on that later. this position. 2. Or, connect external DC power (the Rolls PS27s) VDC to the MX422 DC Input connector. 3. Press in the POWER button. LIMITER 4.

  • Page 5: Description

    For several audio ap- plications engaging the Low-Cut fi lter is benefi cial since little usable audio information exists below 100 Hz - especially for speech recording. www.rolls.com www.rolls.com...

  • Page 6: Rear Panel

    BATTERY SELECT XLR cables. For monitoring external signal VDC : Power input connector. Connects to the optional Rolls PS27s Power Adapter. sources, connect a stereo POWER: Button - turns the MX422 on and off . (Tip-Ring-Sleeve) plug to the Monitor Input MONITOR INPUT: 1/4”...
