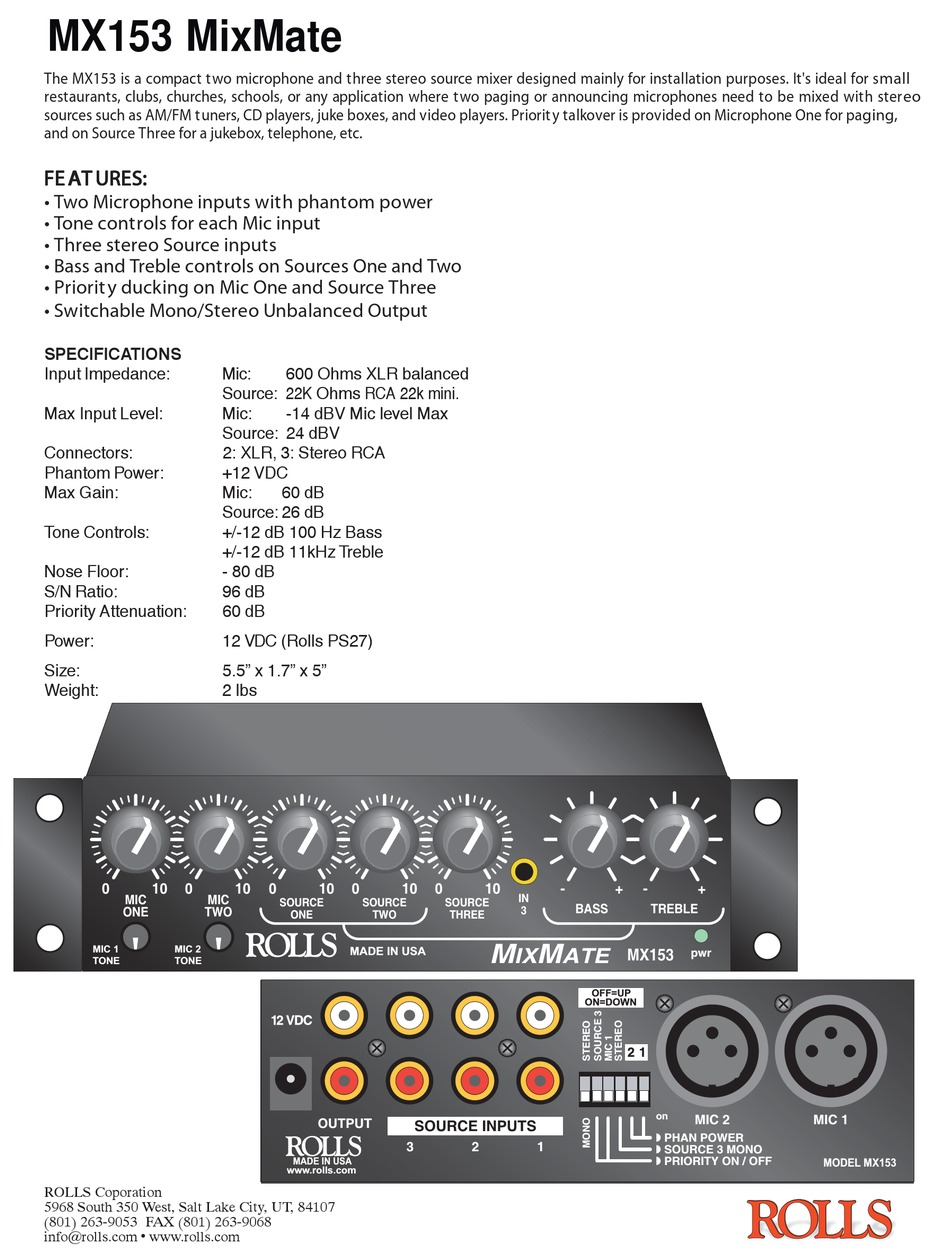

MX153 MixMate
The MX153 is a compact two microphone and three stereo source mixer designed mainly for installation purposes. It's ideal for small
restaurants, clubs, churches, schools, or any application where two paging or announcing microphones need to be mixed with stereo
sources such as AM/FM tuners, CD players, juke boxes, and video players. Priorit y talkover is provided on Microphone One for paging,
and on Source Three for a jukebox, telephone, etc.
FE FE FE FE FE A A A A A T T T T T URES: URES: URES: URES: URES:
• Two Microphone inputs with phantom power
• Tone controls for each Mic input
• Three stereo Source inputs
• Bass and Treble controls on Sources One and Two
• Priorit y ducking on Mic One and Source Three
• Switchable Mono/Stereo Unbalanced Output
SPECIFICATIONS
Input Impedance: Mic:
Source: 22K Ohms RCA 22k mini.
Max Input Level: Mic:
Source: 24 dBV
Connectors:
Phantom Power: +12 VDC
Max Gain: Mic:
Source: 26 dB
Tone Controls: +/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
Nose Floor: - 80 dB
S/N Ratio: 96 dB
Priority Attenuation: 60 dB
Power: 12 VDC (Rolls PS27)
Size: 5.5" x 1.7" x 5"
Weight: 2 lbs
0 10 0
MIC MIC
ONE TWO
MIC 1 MIC 2
TONE TONE
ROLLS Coporation
5968 South 350 West, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
info@rolls.com • www.rolls.com
600 Ohms XLR balanced
-14 dBV Mic level Max
2: XLR, 3: Stereo RCA
60 dB
10 0 10 0 10
SOURCE SOURCE
ONE TWO
MADE IN USA
12 VAC
600mA
OUTPUT
OUTPUT
MADE IN USA
MADE IN USA
www.rolls.com
0 10 -
IN
SOURCE
BASS
3
THREE
M M
IX ATE
ON=DOWN
on
SOURCE INPUTS
SOURCE INPUTS
1 2 3
3 2 1
+ - +
TREBLE
MX153 pwr
OFF=UP
MIC 2
on
MIC 2
PHAN POWER
◗ PHAN POWER
SOURCE 3 MONO
◗ SOURCE 3 MONO
PRIORITY ON / OFF
◗ PRIORITY ON / OFF
MIC 1
MIC 1
MODEL MX152
MODEL MX153
