Summary of Contents for Alloy AS2024-P
- Page 1 Fast Ethernet and Gigabit Ethernet PoE+ Unmanaged Switches AS1008-P AS1026-P AS2008-P AS2024-P User Manual Version 1.0.0.1 – Sep 2017...
-
Page 2: Table Of Contents
AS1000 & AS2000 User Manual Contents Compliances and Safety Statements ............. 3 1. AS1000 Series Product Introduction ..........6 2. AS2000 Series Product Introduction ..........7 3. Checklist ................... 7 4. Installation ..................8 4.1 Installation Method ................ 8 4.2 Desktop or Shelf Installation ............8 4.3 Rack Installation ................ -
Page 3: Compliances And Safety Statements
- Surge immunity test according to IEC 61000-4-5:2005 - Immunity to conducted disturbances, Induced by radio-frequency fields: IEC 61000-4-6:2008 - Power frequency magnetic field immunity test according to IEC 61000-4-8:2009 - Voltage dips, short interruptions and voltage variations immunity test Alloy Computer Products Pty Ltd Copyright ©2017... - Page 4 • This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions. Alloy Computer Products Pty Ltd Copyright ©2017...
- Page 5 Please follow the instructions in the user manual/quick install guide carefully to connect the device to your PC or other electronic product. Any invalid connection may cause a power or fire risk. Do not place this device on an unstable surface or support. Alloy Computer Products Pty Ltd Copyright ©2017...
-
Page 6: As1000 Series Product Introduction
The AS1000 Series is the ideal solution for adding low cost Gigabit PoE capability to your newly deployed IP PBX and IP Phone infrastructure. Features •... -
Page 7: As2000 Series Product Introduction
The AS1008-P / AS1026-P / AS2008-P / AS2024-P – POE Switch • Rack Mount kit with appropriate mounting screws • Power Cable • • Warranty Card Please notify your supplier immediately if any of the aforementioned items are missing or damaged. Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 8: Installation
First install the provided rack mount brackets onto each side of the switch using the screws provided. Using the screws provided with your rack mount the switch into your equipment rack. Alloy Computer Products Pty Ltd Copyright ©2017... - Page 9 AS1000 & AS2000 User Manual Fig. 2 Rack Mount kit installation Alloy Computer Products Pty Ltd Copyright ©2017...
-
Page 10: Powering On The Switch
Connect the female connector of the power cord here, and the male connector to the AC power outlet. Make sure the voltage of the power supply meets the requirement of the input voltage. USE ONLY WITH 250V FUSE Fig. 4 Rear of the Switch Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 11: Led Description

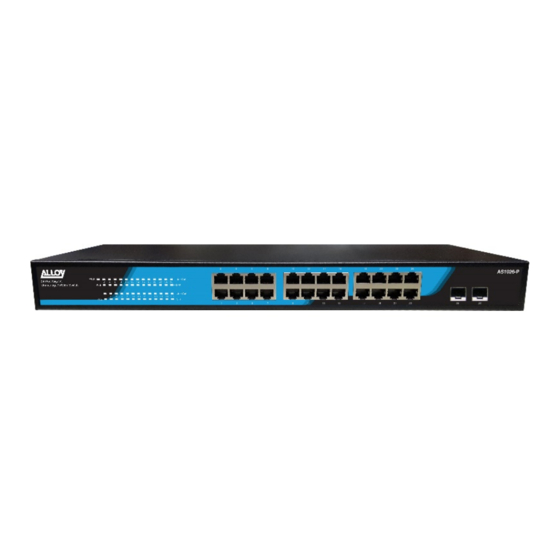

Traffic is present on port No link established Green: PD PoE device has successfully connected to the port. No POE device connected Fig. 5 Front panel of the AS1008-P Fig. 5.1 Front panel of the AS1026-P Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 12: Network Connection
Fig. 5.3 Front panel of the AS2024-P 7. Network Connection These switches are designed to be connected to (AS1000 Series - 10, 100 or 1000Mbps) or (AS2000 Series - 10 or 100Mbps) network cards in PCs and Servers, as well as to other switches and hubs. -
Page 13: As1000 Technical Specifications
Operating Temperature: 0°C - 40°C Storage Temperature: -10°C - 70°C Environment Operating Humidity: 20%~85% non-condensing Storage humidity: 5%~90% non-condensing Power Supply AC 100V ~ 240V 50/60Hz (Internal Power Supply) Certification RCM, CE, FCC, RoHS Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 14: As2000 Technical Specifications
Operating Temperature: 0°C - 40°C Storage Temperature: -10°C - 70°C Environment Operating Humidity: 20%~85% non-condensing Storage humidity: 5%~90% non-condensing Power Supply AC 100V ~ 240V 50/60Hz (Internal Power Supply) Certification RCM, CE, FCC, RoHS Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 15: Appendix A. Troubleshooting
However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet. If you still cannot isolate the problem, the internal power supply may be defective. Alloy Computer Products Pty Ltd Copyright ©2017... -
Page 16: Appendix A. Rj-45 Connections
Below is a diagram of a typical straight through and cross-over cable connection: Fig. 7 Straight Through Cable connection Fig. 8 Cross-Over Cable connection Alloy Computer Products Pty Ltd Copyright ©2017...
