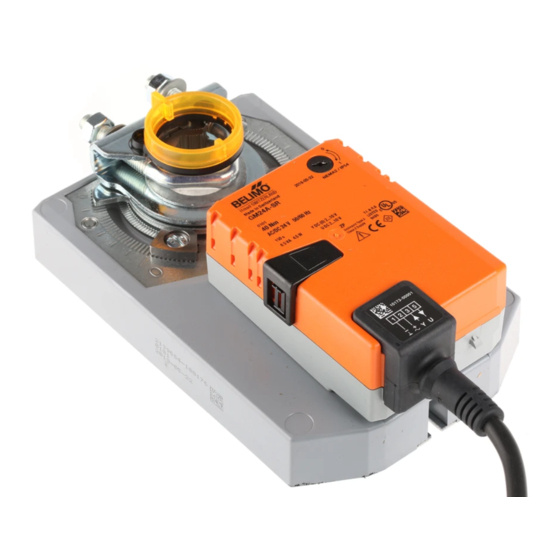

Belimo GMB24-MFT Manual

GM Series Direct Coupled Actuator
Minimum 360 in-lb Torque
●
For damper areas up to 90 sq-ft*
A A ctuators in
bold have BDCM
GM Series - At A Glance
Basic Product
Flexible Product
Torque 360 in-lb [40 Nm]
Angle of Rotation 95 degrees
Power Supply 24 VAC/DC
100 to 240 VAC
Control Input On/Off, Floating Point
2 to 10 VDC (4 to 20mA)
Multi-Function Technology
0 to 135 Ohm
0 to 20V Phasecut
LonWORKS
Feedback None
2 to 10 VDC
Variable (0 to 10 VDC)
Running Time 150 seconds
Adj. 75 to 280 seconds
Wiring Plenum Rated Cable
Appliance Rated Cable
Conduit Fitting
Auxiliary Switch Add-On
Installation and Operations...(page 269).
*Based on 4 in-lb/ft 2 damper torque loading. Parallel blade. No edge seals.
