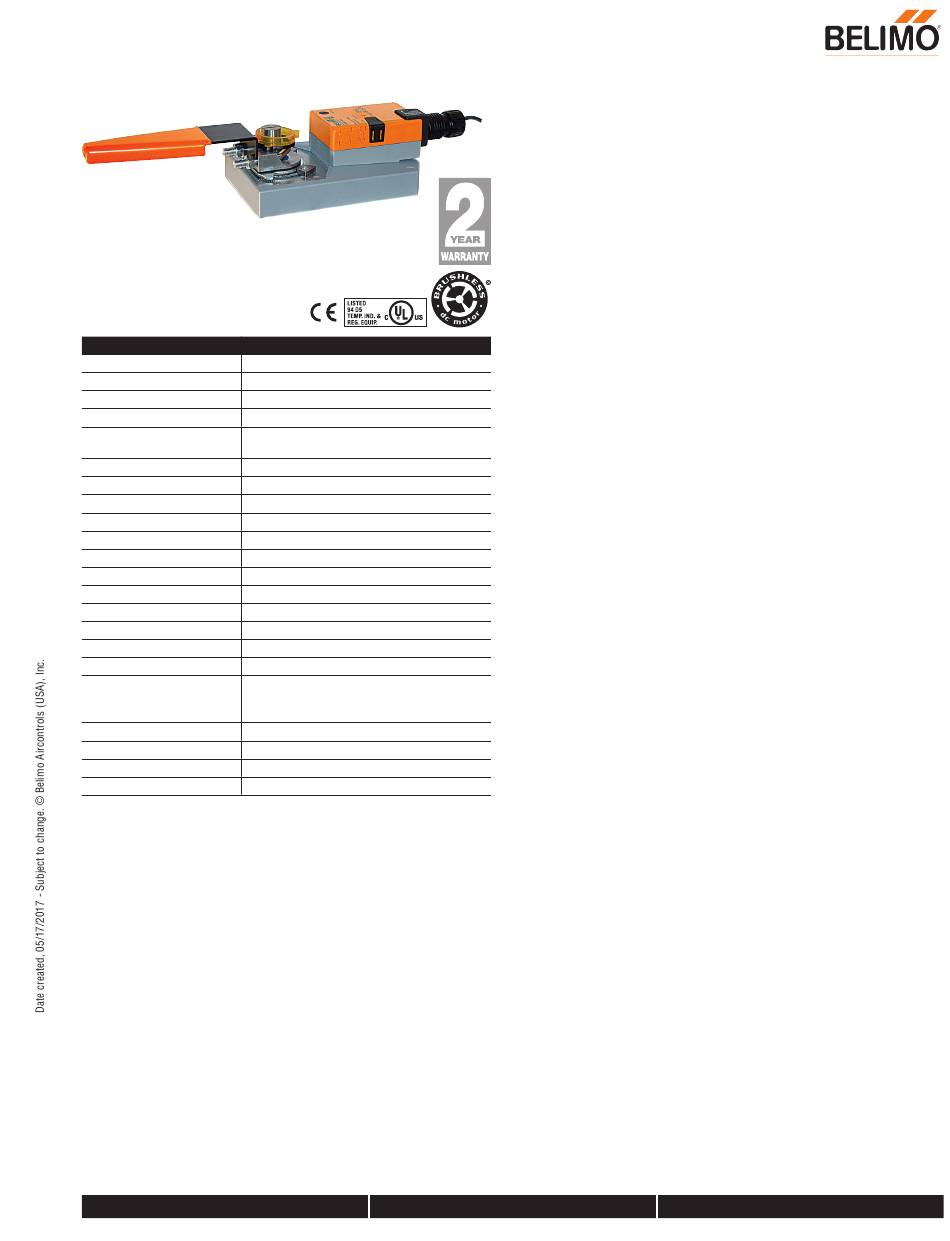

Belimo GMX24-3-X1 Manual

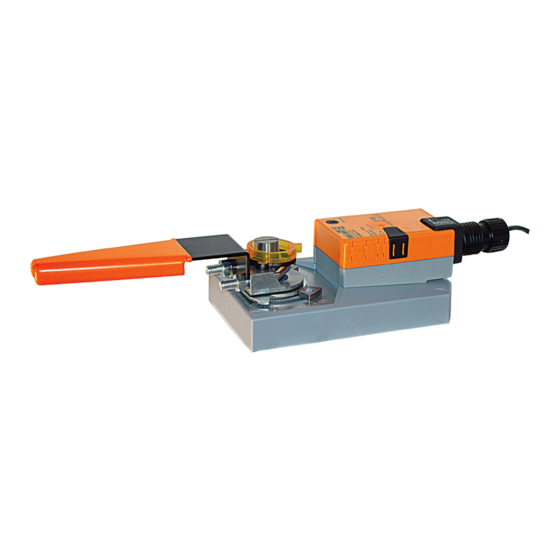

GMX24-3-X1
On/Off, Floating Point, Non-Spring Return, 24 V
Technical Data
Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running 4 W
Power Consumption Holding 2 W
Transformer Sizing 6 VA (class 2 power source)
Electrical Connection 3ft [1m], 18 GA plenum rated cable with 1/2"
conduit connector protected NEMA 2 (IP54)
Overload Protection electronic throughout 0° to 95° rotation
Input Impedance 600 Ω
Angle of Rotation Max. 95°, adjustable with mechanical stop
Torque 360 in-lbs [40 Nm] minimum
Direction of Rotation (Motor) reversible with built-in switch
Position Indication reflective visual indicator (snap on)
Manual Override external push button
Running Time (Motor) 150 sec constant, independent of load
Ambient Humidity 5 to 95% RH non-condensing
Ambient Temperature Range -22°F to 122°F [-30°C to 50°C]
Storage Temperature Range -40°F to 176°F [-40°C to 80°C]
Housing NEMA 2, IP54, UL enclosure type 2
Agency Listings† cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC and
2006/95/EC
Noise Level (Motor) <45 dB (A)
Servicing maintenance free
Quality Standard ISO 9001
Weight 3.5 lb [1.6 kg]
†Rated Impulse Voltage 800V, Type action 1, Control Pollution Degree 3.
