Defining a Server Mapping

The debugger relies on these mappings to communicate the correct file paths of all
files with breakpoints to the ColdFusion server. You create these mappings in the
Mappings pane of the Remote Development Settings dialog box.
To define a server mapping:
1. Open the Options > Settings > Browse pane.
2. Check either Microsoft Internet Explorer or Netscape's Mozilla NGLayout as the
internal browser.
3. Click the Development Mappings button to open the Mapping tab on the Remote
Development Settings dialog box.
4. Select a server from the drop-down list of configured servers. If a server is not on
the list, add it using the procedure described above.
5. Enter the Studio, ColdFusion, and Browser path information. For page browsing on
localhost, only the Studio and Browser paths are required.
6. Click the Add button to save the mapping, then click OK.

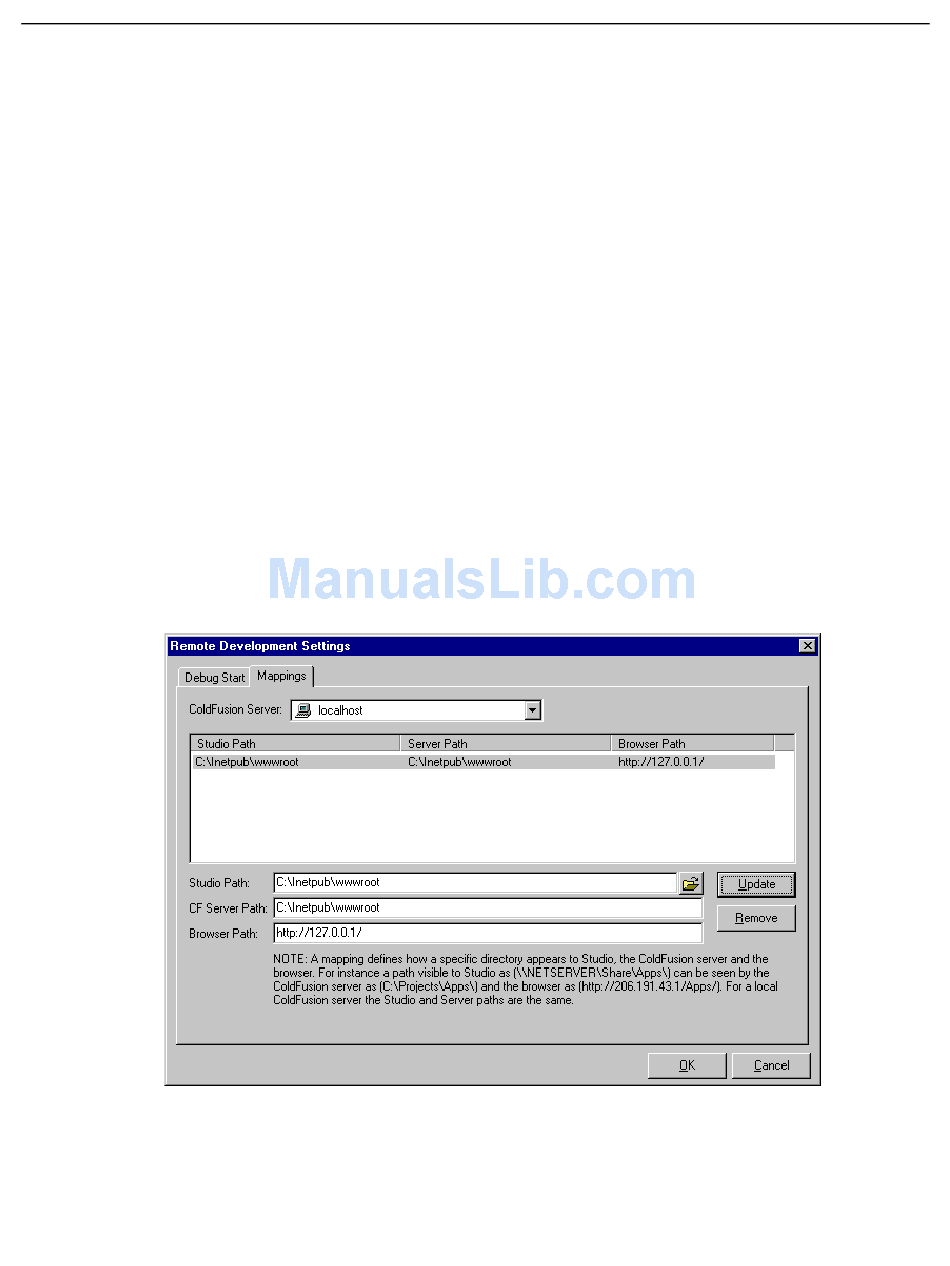

In the illustration below, ColdFusion and Studio are both installed locally.
You can now browse your documents in the internal (F12) or external (F11) browser. To
edit mapping settings, select a mapping from the list and click the Update button after
making changes in the appropriate fields.
