Russound COMPOINT SYSTEM Instruction Manual page 7

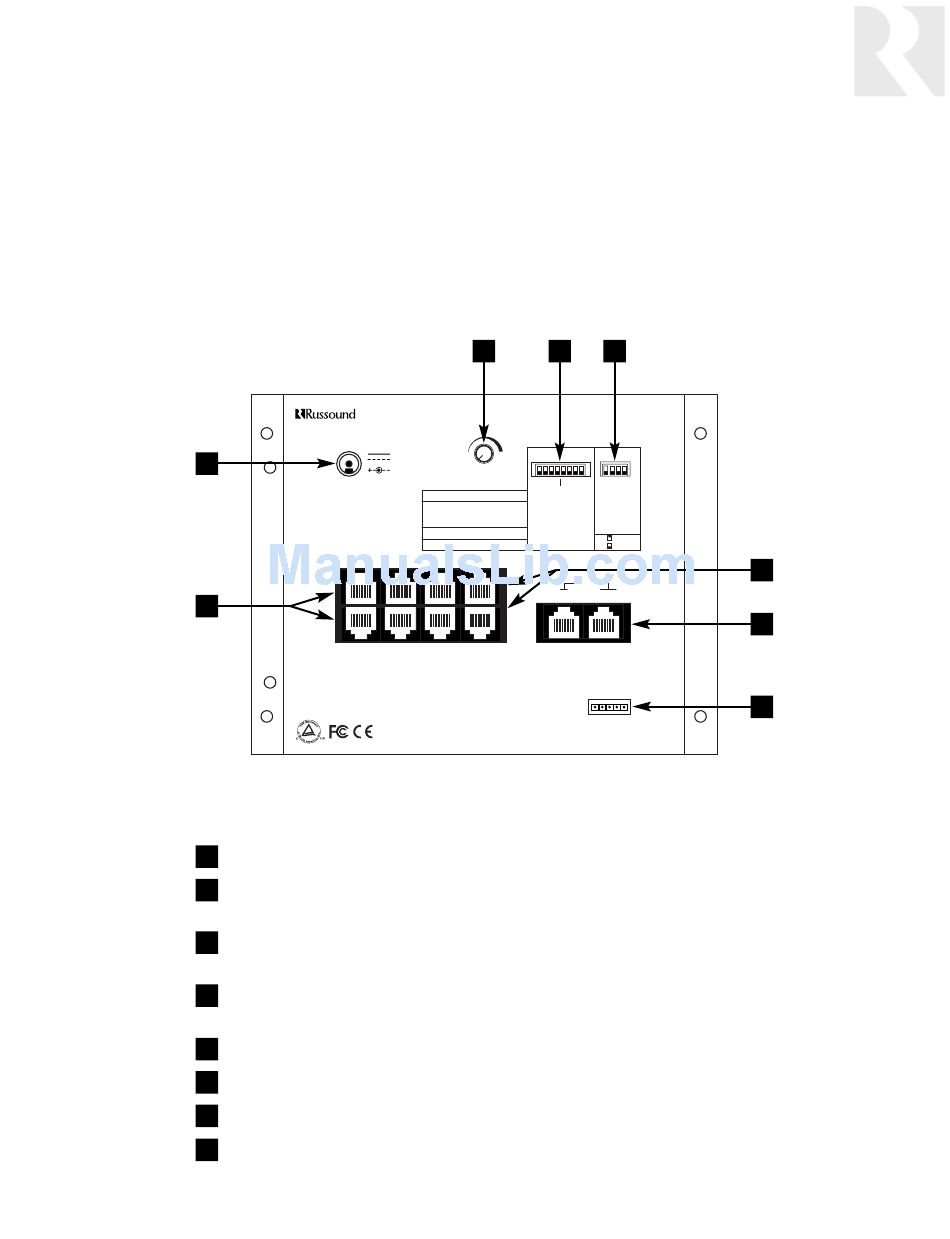

ISH1 Hub
As the heart of the system, the hub keeps track of the zones and routes communications
appropriately. It also provides your choice of chime sounds for the built-in doorbell
feature, which plays chimes through the speakers in each room.
1
8
1 POWER INPUT – For connecting a Russound ISPS power supply, 15 VDC 3.5 A
DOORBELL CHIME GAIN CONTROL – For adjusting the overall volume of the
2
doorbell chimes
3 DOORBELL CHIME SWITCHES – For selecting individual chime tones for one or
two door stations
4 HUB ID SWITCHES – For assigning the hub a unique ID number in a multiple-hub
system
5 DOOR STATION PORTS – For connecting ISK3 Door Stations
6 LINK PORTS – For connecting multiple hubs together
7
FIRMWARE UPDATE PORT – For updating system firmware from a computer
8 ZONE KEYPAD PORTS – For connecting ISK1 Basic or ISK2 Advanced Keypads
DOORBELL CHIME
NEWMARKET, NH USA
GAIN
15VDC
ISH1
MIN
3.5A MAX
1-3 = DOOR 1 CHIME
SWITCH 4 = CHIME VOLUME
UP = 50% MAX KEYPAD OUTPUT
DOWN = KEYPAD ADJUSTABLE
5-7 = DOOR 2 CHIME
8 = NOT USED
1 3 5 DOOR 1
2 4 6 DOOR 2
ISH1 Hub
2 3 4
PROGRAM OPTIONS
0=DOWN / 1=UP
DOOR BELL CHIME HUB ID
MAX
DS1 DS2
SWITCH 1-3
HUB 1 = 000
NONE = 000
HUB 2 = 001
CHIME 1 = 001
HUB 3 = 010
CHIME 2 = 010
HUB 4 = 011
CHIME 3 = 011
HUB 5 = 100
CHIME 4 = 100
HUB 6 = 101
CHIME 5 = 101
CHIME 6 = 110 4
#
RUN
CHIME 7 = 111
UPDATE
LINK
IN OUT
FIRMWARE
UPDATE PORT
MADE IN CHINA
USER SECTION
System Components
5
6
7
