Assigning zone labels

To assign zone labels, follow these steps (or the
ISK2 Keypad Zone Name Procedure flow chart
on page 26):
1. Remove the wall plate if it's installed. Press and
release the Setup button on the right edge of the
keypad to enter the main menu. The display
shows ZName (ZONE NAME).
2. Press the Talk key to enter the Zone Name proce-
dure. The display shows Zn#? to prompt you to
select a zone number.
3. Press the Talk key again for the next sequential
zone to be assigned or use the Volume Up or
Volume Down key to select a specific zone. You
can press and hold the key to scroll through the
list of zones with a half-second delay between
items. Stop at the desired zone number.
4. Press and release the Talk key. The display shows
Name? to prompt you to assign a zone label.
5. Use the Volume Up or Volume Down key to select
a label from the list of zone labels. You can press
and hold the key to scroll through the list of zone
labels with a half-second delay between items.
Stop at the desired label.
24

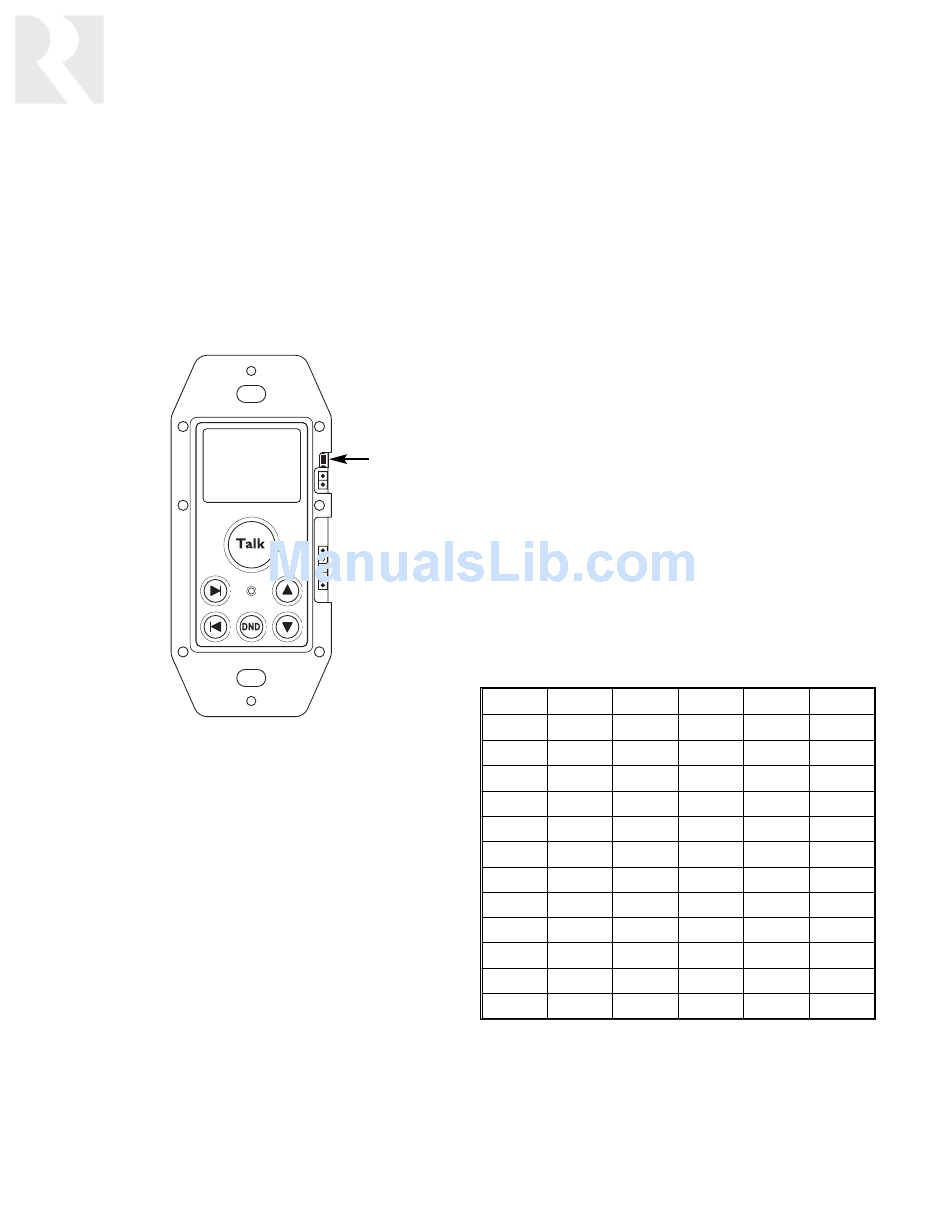

ISK2 Setup Button
6. Press and release the Talk key to save the selec-
tion. The display shows Zn#? to prompt you to
select the next zone.
7. Repeat steps 3 through 6 for the remaining zones.
Press and release the Setup button to exit the
procedure. You can then go to the Door Name
Procedure by pressing the Next key or press
the Setup button again to exit the main menu.
Note: If you aren't sure which zone an ISK2
keypad is connected to, observe the keypad's
display when powering up the system. When a
hub is powered up, each keypad connected to
that hub briefly indicates Page, then the port
and hub number to which it is connected. For
example, an indication of P4:H2 shows the
keypad is connected to port 4 on hub 2. This
indication remains for 3 seconds, then reverts
to Page.
Zones are numbered sequentially starting with
hub 1, port 1. The table below shows zone
numbers and port assignments.
Zone Port Zone
1 P1:H1 13
2 P2:H1 14
3 P3:H1 15
4 P4:H1 16
5 P5:H1 17
6 P6:H1 18
7 P1:H2 19
8 P2:H2 20
9 P3:H2 21
10 P4:H2 22
11 P5:H2 23
12 P6:H2 24
Zone port assignments
Port Zone Port
P1:H3 25 P1:H5
P2:H3 26 P2:H5
P3:H3 27 P3:H5
P4:H3 28 P4:H5
P5:H3 29 P5:H5
P6:H3 30 P6:H5
P1:H4 31 P1:H6
P2:H4 32 P2:H6
P3:H4 33 P3:H6
P4:H4 34 P4:H6
P5:H4 35 P5:H6
P6:H4 36 P6:H6
