User's Manual

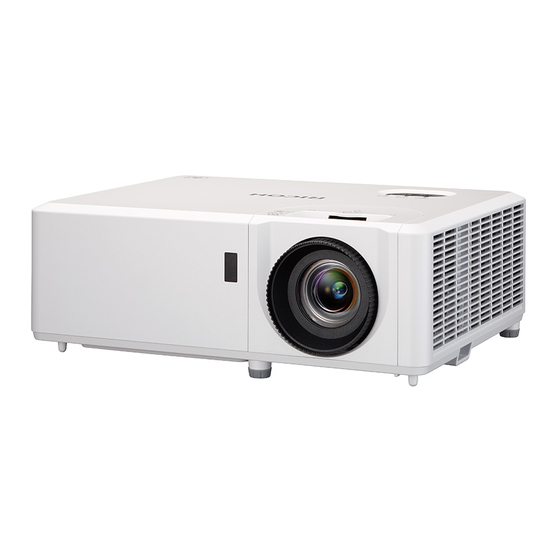

RICOH PJ WXL5860 / WUL5860
1. Usage Notice
2. Introduction
3. Basic Operations
4. User Settings
5. LAN Control
6. Troubleshooting
7. Appendices
Read this manual carefully before you use this machine and keep it
handy for future reference. For safe and correct use, be sure to read the
Precautions in this manual before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ WUL5860 and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ WUL5860

Summary of Contents for Ricoh PJ WUL5860

  • Page 1 RICOH PJ WXL5860 / WUL5860 User's Manual 1. Usage Notice 2. Introduction 3. Basic Operations 4. User Settings 5. LAN Control 6. Troubleshooting 7. Appendices Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ......1 AUDIO ..........53 OPTIONS ..........54 Usage Notice ........2 3D ............58 Precautions .........2 LAN Control ........60 Safety Labels of This Machine ..11 Controlling this Device with Web Regulation & Safety Notices .....13 Browser ..........60 Other Information ......18 Connecting to the device ......

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if Warning- instructions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice ■ Warning- It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock. ■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following: ■...
  • Page 6 Usage Notice your service representative and report the problem. Do not use the machine. Doing so could result in fi re or electric shock. ■ Warning- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals.
  • Page 7 Usage Notice Contact your sales or service representative if you want to install the projector on a wall or ceiling. f) For sales or service representatives: - Use brackets that are strong enough to support the projector. WXL5860/ WUL5860 Series weights less than 5.0 kg.
  • Page 8 Usage Notice ■ Caution- Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the machine or an accident. ■ Caution- Do not obstruct the machine’s vents. Doing so risks fi...
  • Page 9 Failing to take these precautions could result in fi re or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product. ■ Caution- Unplug this product from the wall outlet and take the product to qualifi...
  • Page 10 Usage Notice ■ Caution- Leave more than 30 cm of space between the intake vent and the partition or more than 60 cm of space betweenthe exhaust vent and the partition. Partition ≥ 10 cm ≥ 10 cm (≥ 3.9”) (≥...
  • Page 11 Usage Notice ABOUT THE LASER LIGHT SOURCE ■ Warning- Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children. ■ Caution- Never allow children to stare into the projector beam at any distance from the projector.
  • Page 12 Usage Notice REMOTE CONTROL BATTERY Warning • Never throw batteries into a fi re. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fl uid off immediately with clean water and consult a doctor.

  • Page 13: Safety Labels Of This Machine

    Usage Notice Safety Labels of This Machine 1. Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyesight. 2. Do not place anything in front of the lens while the projector is operating.
  • Page 14 Usage Notice For USA and Canada only WARNING: MOUNT ABOVE THE HEADS OF CHILDREN. ATTENTION: Montez au-dessus dela tête des enfants. Power Switch Symbols The meaning of the symbols for the switches on this machine as follows: : On/Standby (Off) English...

  • Page 15: Regulation & Safety Notices

    Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ WXL5860/WUL5860 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ WXL5860/WUL5860 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules.
  • Page 16 Usage Notice RESPONSIBLE PARTY: Ricoh USA Inc. 300 Eagleview Boulevard, Suite 200 Exton, PA 19341, U.S.A. Telephone number: 610-296-8000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
  • Page 17 Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: RICOH Europe SCM B.V. Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands User Information on Electrical and Electronic Equipment Users in the countries where this symbol shown in this section has been specifi...
  • Page 18 Usage Notice The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling.
  • Page 19 Usage Notice Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.

  • Page 20: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 21: Introduction

    Introduction Product Features Outstanding features include: Native resolution WXGA (1280x800), WUXGA (1920x1200) ■ Maximum resolution HDMI 1920x1200 @ 60Hz ■ Light weight 11.02 lbs (5 kg) ■ Manual focus projection 1:1.36 (WXL5860) or 1:1.3 ■ (WUL5860) zoom lens Built-in full screen NTSC / PAL / SECAM video ■...

  • Page 22: Package Overview

    Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. AV Mute Autoset Input Aspect Picture Enter Menu Keystone Freeze HDMI Video Digital Computer Status...

  • Page 23: Product Overview

    Introduction Product Overview 2 3 4 1. Ventilation (outlet) 9. Adjustable feet 2. Focus ring 10. Remote receiver 3. Zoom lever 11. Speaker 4. Lens shift dial 12. Anti-theft lock hole 5. Control panel (Kensington™ lock) 6. Ventilation (inlet) 13. AC In socket 7.

  • Page 24: Connection Ports

    Introduction Connection Ports 3 4 5 1. HDMI 1 In terminal 7. Audio In terminal Compatible with  2. Service terminal 8. Microphone In terminal MHL version 2.0, 3. HDMI 2/MHL terminal 9. Audio Out terminal the charging current 5V@0.9A. (supports HDMI / 10.

  • Page 25: Control Panel

    Introduction Control Panel Power Lamp Temp Power Menu Enter AV Mute Input Power indicator Indicate the projector’s power status. Lamp indicator Indicate the projector’s laser status. Temp indicator Indicate the inside of the projector’s temperature status. Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu.

  • Page 26: Remote Control

    Introduction Remote Control AV Mute Autoset Input Aspect Picture Enter Keystone Freeze Menu Digital Computer HDMI Video Status Magnify Volume ID Set Indicator Blinks when remote code is sent. Power Refer to the “Power On/Off the Projector” section. (See pages 32~33) Input Press “Input”...
  • Page 27 Introduction Freeze Pause the screen image. Press again to resume the screen image. Video Choose a signal from Video terminal. Digital This function is not supported. Number (0~9) Input numbers. Volume +/- Increase or decrease speaker volume. Press “MHL” to control your MHL device.

  • Page 28: Remote Control Id Setup

    Introduction Remote Control ID Setup The IR remote allows individual addressing of projectors. The projector can be set with a specifi c number from “1” to “99” as its address, and it only responds to the IR remote set to the same ID code.

  • Page 29: Remote Control Battery Installation

    Introduction Remote Control Battery Installation Push the clip to Install new batteries (AAA/ Close the battery cover release the battery R03). Ensure that you have and press it down until it cover. the batteries’ polarity (+/–) clicks into place. Do not mix aligned correctly.

  • Page 30: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 7m (23.0feet) and ±30° in front of the projector. 7m (23.0feet) ±30° English...

  • Page 31: Installing The Projector

    Introduction Installing the Projector When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines: Position the projector on a fl...

  • Page 32: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook Notebook Make sure that the  power plug is fully inserted into both the projector AC inlet and the wall outlet. The AC outlet must  be near this equipment and must be easily Powered accessible.

  • Page 33: Connect To Av Equipment

    Basic Operations Connect to AV Equipment Audio Output DVD Player Make sure that the  HDTV receiver power plug is fully inserted into both the projector AC inlet and the wall outlet. The AC outlet must  be near this equipment and must be easily accessible.

  • Page 34: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Remove the lens cap (if applicable). If you connect  3. Turn on the projector by pressing the “Power” button on multiple sources at the control panel or the button on the remote control.

  • Page 35: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the button and you will see a message as below on the on-screen display. Power Off? Press power key again. 2. Press the button to turn off the projector. If you do not press the button again, the warning message will disappear after 5 seconds.
  • Page 36 Basic Operations When the “Temp” indicator fl ashes red (0.5 sec on, 0.5 sec  off) and the “Power” indicator lights blue and the message below displays, it indicates the cooling fan failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center.

  • Page 37: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with rear and front adjustable feet to raise and lower the image to fi ll the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 38: Adjusting The Projector Zoom, Focus, And Lens Shift

    Focus Distances (lens to wall): RICOH PJ WXL5860 (WXGA): from 1.0m to 7.2m (from 3.28  feet to 23.62 feet) RICOH PJ WUL5860 (WUXGA): from 1.0m to 7.9m (from ...

  • Page 39: Adjusting Projection Image Size

    Basic Operations Adjusting Projection Image Size Projection Image Size (Diagonal) for: WXGA (WXL5860):  <Tele>: 30” to 219” (0.76m to 5.56m) <Wide>: 42” to 300” (1.07m to 7.62m) WUXGA (WUL5860):  <Tele>: 29” to 231” (0.74m to 5.87m) <Wide>: 38” to 303” (0.97m to 7.70m) Top View Screen Screen (W)
  • Page 40 Basic Operations RICOH PJ WXL5860 (WXGA) Screen Size WxH Projection Distance Off set (Hd) Diagonal Length (inch) (feet) (inch) Size of (16:10) Width Height Width Height Wide Tele Wide Tele Screen 0.65 0.40 25.4 15.9 0.98 0.00 0.05 0.90 0.57 35.6...

  • Page 41: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 42: Picture

    User Settings Picture Picture Mode Standard Brightness Contrast Saturation Sharpness Gamma Color Temperature PICTURE Advanced Select Enter Exit Picture Mode There are factory presets optimized for various types of images. The available options: Bright Standard Vivid sRGB DICOM SIM. Picture Mode Bright: Mode for emphasizing brightness.
  • Page 43 User Settings Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Contrast Press the key to decrease the contrast. ...
  • Page 44 User Settings Color Temperature Use this function to select the preset color temperature. The available options: 5500/ 6500 / 7500 / Native. Color Temperature Native NCE (Natural Color Enhancer) Use this function to enhance color and reproduce vivid colors.  On: Enable NCE.
  • Page 45 User Settings NCE Settings: Confi gure the image color settings.  NCE Settings Color Saturation Gain Reset Select Enter Exit - Color: Use the key to select the red, green, blue, cyan, yellow, magenta, and white. When Red / Green / Blue / Cyan / Yellow / Magenta is selected in Color: - Hue: Use the key to adjust the color balance.

  • Page 46: Screen

    User Settings Screen Aspect Ratio Auto Phase Clock H. Position V. Position Keystone Projection Mode Normal SCREEN Advanced Select Enter Exit Aspect Ratio Use this function to choose your desired aspect ratio. Aspect Ratio Auto Auto: Automatically selects the appropriate display format. ...
  • Page 47 User Settings H. Position (Horizontal Position) Shift the projected image position horizontally. “H. Position” and  H. Position “V. Position” functions are only Press the key to move the image left.  supported under Computer Signal Press the key to move the image right. ...
  • Page 48 User Settings H. Keystone: Adjust the horizontal keystone.  H. Keystone Four Corner: Compensate for image distortion by adjusting one  corner at a time. Four Corner Select Enter Exit Reset: Return the keystone settings to the factory default values. ...
  • Page 49 User Settings Advanced Confi gure the advanced screen settings. Advanced Magnify RGB Input Range Auto Start-up Screen Logo Background Color Logo Test Pattern Select Enter Exit Magnify: Use the key to zoom in or zoom out the image.  “RGB Input ...
  • Page 50 User Settings Test Pattern: Use this function to choose your desired test  pattern between grid and white. Choose “Off” to disable this function. Test Pattern Grid White English...

  • Page 51: Settings

    User Settings Settings Language English Auto Power Off (Min.) Monitor Out (Standby) Network (Standby) Network Security Reset SETTINGS Select Enter Exit Language Choose the multilingual OSD. Press “Enter” to open the sub menu and then use the key to select your preferred language.
  • Page 52 User Settings Auto Power Off (Min.) Set the countdown timer interval (in minutes). The countdown timer will start, when there is no signal being sent to the projector. Default value  The projector will automatically power off when the countdown of “Auto Power Off (Min)”...
  • Page 53 User Settings Status: Display the network connection status.  DHCP: Select “On” to allow the projector to obtain an IP  address automatically from your network. Select “Off” to manually assign IP, Subnet Mask and Gateway confi guration. DHCP IP Address: Set an IP address or display IP address provided ...
  • Page 54 User Settings Security Confi gure the security settings. Security The default  Security security code is “123456”. Change Password Enter Exit Select Security: Select “On” to use the security verifi cation when the  turning on the projector. Select “Off” to be able to switch on the projector without a password verifi...

  • Page 55: Audio

    User Settings Audio Mute Volume Audio Input Default AUDIO Select Enter Exit Mute Temporarily turn off the sound. Mute “Mute” function   affects both internal Choose “On” to mute the sound. and external speaker  Choose “Off” to turn mute off. volume.

  • Page 56: Options

    User Settings Options Auto Source Input Source Laser Settings High Altitude Power Settings Remote Control ID Information OPTIONS Select Enter Exit Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost. When this function is turned “Off”, it will only search a specifi...
  • Page 57 User Settings Laser Settings Use this option to view the laser diode usage status and confi gure the laser settings. Press the “Enter” key to enter the sub menu and confi gure the desired settings. Laser Settings Laser Hours Used Laser Power Mode Normal Laser Power...
  • Page 58 User Settings Power Settings Use this option to confi gure the power settings. Press the “Enter” key to enter the sub menu and confi gure the desired settings. If changes are made, they will take effect the next time the projector is powered on.
  • Page 59 User Settings Remote Control ID Adjust remote customer code after setting “ID Set” and Number (0~9) key in remote. (See page 26) The ID range is  Remote Control ID from 00~99. Information Display the projector information. Information Source Computer Resolution 1920X1200 60Hz...
  • Page 60 User Settings 3D Sync Invert 3D Format Auto Select Enter Exit 3D Sync Invert Use this option to enable/disable the 3D sync invert function. Compatible 3D  3D Sync Invert source, 3D content and Optical 3D glasses Off: Choose “Off” for default frame contents. ...
  • Page 61 User Settings Auto: Use this mode to let the system to automatically select  the appropriate 3D format content. Side by Side: Use this mode for “Side by Side” format 3D  content. Top and Bottom: Use this mode for “Top and Bottom” format ...

  • Page 62: Lan Control

    LAN Control Controlling this Device with Web Browser When you are  You can control this device from a PC by using a web browser. connecting the device to an existing network, Connecting to the device set according to the instructions of the 1.

  • Page 63: Log In

    LAN Control Log in 1. When you open the web page, you will see a screen like the one below. If you are controlling by web browser, select "Admin". When controlling by Crestron, choose "Crestron". 2. Enter the password in the "Password" fi eld. When a password is enabled, you must enter the password.

  • Page 64: System Status

    LAN Control When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen. System Status The current status of the projector is displayed. You can check projector model name, fi rmware version, current LAN confi...

  • Page 65: General Setup

    LAN Control General Setup You can change the projector name and password with this item. The projector name  set here is also used in PJLink control. Only alphanumeric  characters and symbols can be used as projector name. The maximum number of characters is You can use ...

  • Page 66: Projector Control

    LAN Control Projector Control You can control the projector with this item. The items for control are described in this section. Control button: When you click a button, the corresponding function will be performed. Power On The power of the projector turns on. To turn ON, click "Settings"...
  • Page 67 LAN Control Adjustment button: Projector can be adjusted by +/ - button. Auto Power Set the countdown timer interal in minutes. Off (Min.) Brightness Adjust brightness by +/ - button. Value will return to the initial value when you click the Reset button. Contrast Adjust contrast by +/- button.

  • Page 68: Network Setup

    LAN Control Network Setup Set the network of the projector. ► Automatically configuring the network settings from DHCP. IPV6 cannot be used  Check automatic setting and then click “Apply”. in this device. ► Configuring the network settings manually. Check manual setting, enter appropriate values in the IP address, Subnet Mask, Default Gateway (Gateway) and DNS Server fields, and then click "Apply".

  • Page 69: Alert Setup

    LAN Control Alert Setup You can send email alerts when an error occurs. Only alphanumeric  You can carry out settings for alert mail in this section. characters and symbols can be used in the password. The maximum number of characters is 32.

  • Page 70: Crestron

    LAN Control Crestron You can use the control of projectors that uses Crestron. When projector is  in standby mode, only the “Power” button will work. ► Power: Switch ON/OFF the power. ► Source List: Correspondence between the input display and input terminal of the device is as follows.

  • Page 71: Crestron Tools

    LAN Control Crestron Tools You can perform settings of the projector network and Crestron Room View. After setting the  user password, you will be able to access Crestron’s page by entering the password. After enabling the  Admin password, you will be able to access the page of Crestron tool only upon entering...

  • Page 72: Contacting The It Administrator Of Crestron

    LAN Control Contacting the IT administrator of Crestron You can contact the IT administrators who are using X-Panel. Crestron offers  Xpanel.exe. Reset to Default You can reset the network to factory settings. Press the refl ect button. English...

  • Page 73: Reboot System

    LAN Control Reboot System You can restart the system. Press the restart button. English English...

  • Page 74: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 75 Troubleshooting Problem: The screen of the Notebook computer is not displaying a presentation If you are using a Notebook PC:  Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
  • Page 76 Troubleshooting Problem: Image is reversed Select “Screen > Projection Mode” from the OSD menu to adjust  the image. Problem: Indicator lighting message POWER TEMP LAMP indicator indicator indicator STATUS (Red) (Blue) (Red) (Red) Steady light => STANDBY No light => POWER ON STANDBY LAN ON WARMING UP STATE...
  • Page 77 Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the  environmental condition. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C. Fan Error - the cooling system fan is not working.

  • Page 78: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) PC Signal V.Frequency H.Frequency Modes Resolution Clock [MHz] (Hz) (kHz) 640x480 60.0 31.5 25.2 640x480 67.0 35.0 26.8 640x480 72.0 37.9 31.5 640x480 75.0 37.5 31.5 640x480 85.0 43.3 36.0 800x600 56.0 35.1 36.0...
  • Page 79 Appendices A. VGA Analog (2) Extended Wide Timing V.Frequency H.Frequency Modes Resolution Clock [MHz] (Hz) (kHz) 1280x720 60.0 44.8 74.2 1280x800 60.0 49.6 83.5 WXGA 1366x768 60.0 47.7 84.8 1440x900 60.0 59.9 106.5 WSXGA+ 1680x1050 60.0 65.3 146.3 (3) Component Signal 480p 720x480 59.94...
  • Page 80 Appendices B. HDMI Digital (1) PC Signal V.Frequency H.Frequency Pixel CLK Modes Resolution (Hz) (kHz) [MHz] 640x480 60.0 31.5 25..2 640x480 67.0 35.0 26.8 640x480 72.0 37.9 31.5 640x480 75.0 37.5 31.5 640x480 85.0 43.3 36.0 800x600 56.0 35.1 36.0 800x600 60.0 37.9...
  • Page 81 Appendices B. HDMI Digital (3) Component Signal V.Frequency H.Frequency Pixel CLK Modes Resolution (Hz) (kHz) [MHz] 480p 720x480 59.94 31.5 27.0 576p 720x576 50.0 31.3 27.0 1280x720 60.0 45.0 74.25 720p 1280x720 50.0 37.5 74.25 1920x1080 60.0 33.8 74.25 1080i 1920x1080 28.1 74.25...

  • Page 82: Confi Gurations Of Terminals

    Appendices Confi gurations of Terminals Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out] Red (R/Cr) Input [R Output] DDC 5V [NC*] Green (G/Y) Input [G Output] Ground (Ver. sync.) Blue (B/Cb) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz.

  • Page 83: Specifi Cations

    Appendices Specifi cations ■ List of general specifi cations WXL5860 WUL5860 Item DLP chip 0.65” DMD WXGA 0.48” DMD WUXGA F# 2.51 - 2.93, f=15.99-21.42mm, 1.36x F# 1.94 - 2.23, f=12.82-16.74mm, 1.3x Projection Lens Zoom Lens Zoom Lens Projection Distance 1.0 - 7.2m (3.28 - 23.62 feet) 1.0 - 7.9m (3.28 - 25.92 feet) (focus range)

  • Page 84: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm English...
  • Page 85 Appendices Holes for ceiling mount Screw size and max. length: (3) M4-9 mm English English...

  • Page 86: Trademarks

    Appendices Trademarks • DLP is trademarks or registered trademark of Texas Instruments. • Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. • HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
