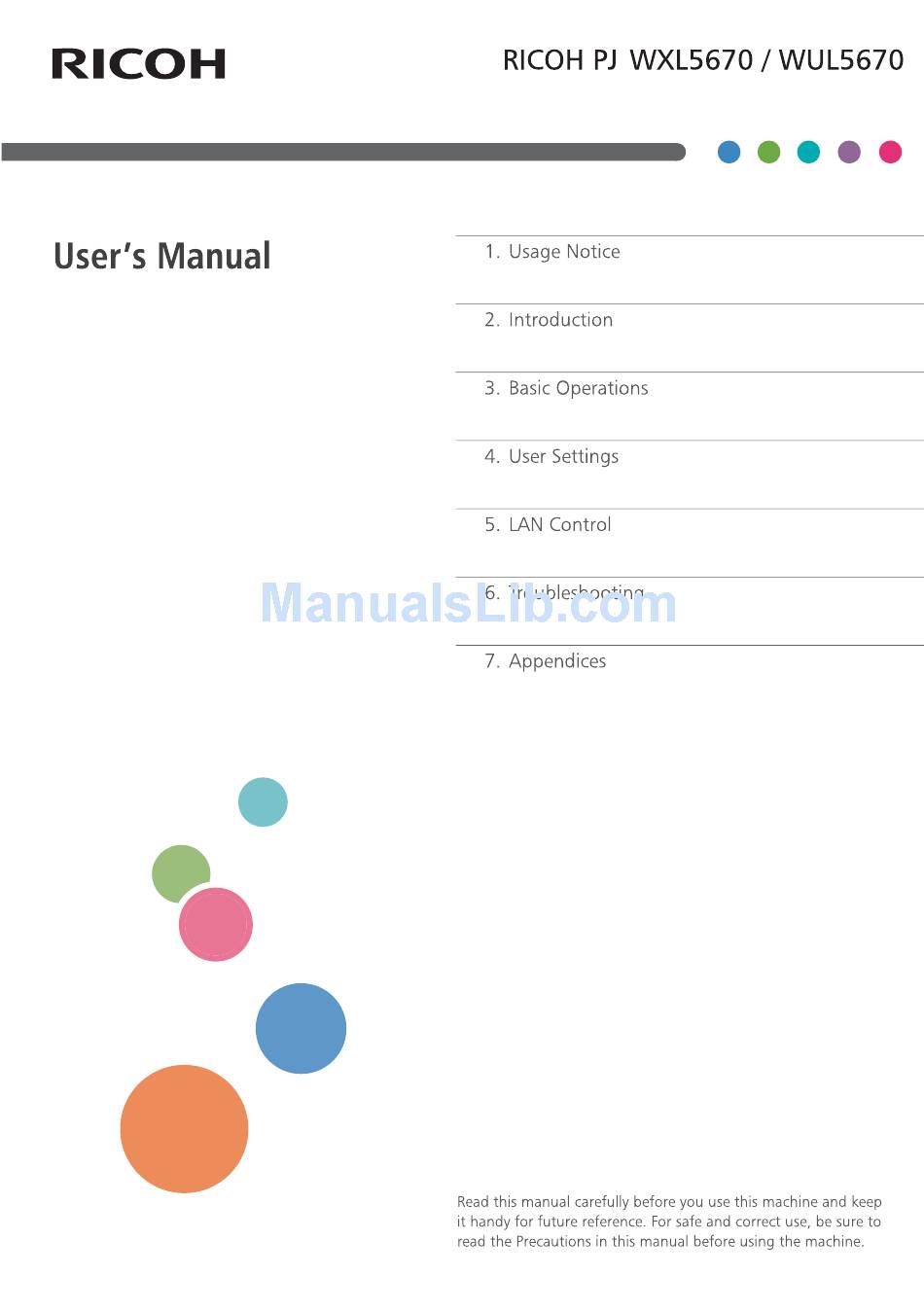

Ricoh PJ WXL5670 User Manual
  1. Manuals
  2. Brands
  3. Ricoh Manuals
  4. Projector
  5. PJ WXL5670
  6. User manual

Ricoh PJ WXL5670 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ WXL5670 and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ WXL5670

Summary of Contents for Ricoh PJ WXL5670

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ......1 OPTIONS ..........56 3D ............61 Usage Notice ........2 LAN Control ........63 Precautions .........2 Controlling this Device with Web Safety Labels of This Machine ..11 Browser ..........63 Regulation & Safety Notices .....13 Connecting to the device ...... 63 Other Information ......18 Log in............

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if Indicates a potentially hazardous situation which, if Warning- instructions are not followed, could result in death or instructions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice ■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following: ■ There are burn marks on the plug. ■ The prongs on the plug are deformed. If any of the above conditions exist, do not use the plug and consult your dealer or service representative.
  • Page 6 Usage Notice ■ Warning- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit. ■...
  • Page 7 Usage Notice f) For sales or service representatives: - Use brackets that are strong enough to support the projector. WXL5670/ WUL5670 Series weights less than 11.4kg. - The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.
  • Page 8 Usage Notice ■ Caution- Push the power plug all the way into the power outlet. Do not use a power outlet with a loose connection. Doing so may result in heat buildup. Plug the power cord in the correct direction into the base. If they are not plugged in correctly, it could result in smoke, fi...
  • Page 9 Failing to take these precautions could result in fi re or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product. ■ Caution- Unplug this product from the wall outlet and take the product to qualifi...
  • Page 10 Usage Notice ABOUT THE LASER LIGHT SOURCE ■ Warning- Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children. ■ Caution- This projector has built-in laser module. Possibly hazardous optical radiation emitted from this product.
  • Page 11 Usage Notice ≥ 30 cm (≥ 11.8”) ≥ 30 cm ≥ 30 cm (≥ 11.8”) (≥ 11.8”) ≥ 30 cm (≥ 11.8”) ■ Caution- When installing the projector on the right side (preferred), leave a space of at least 30 cm between the intake vent and the fl...

  • Page 12: Remote Control Battery

    Usage Notice REMOTE CONTROL BATTERY Warning • Never throw batteries into a fi re. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fl uid off immediately with clean water and consult a doctor.

  • Page 13: Safety Labels Of This Machine

    4. Do not look into the lens. (For USA and Canada only). 5-1. Laser aperture warning: (For USA and Canada only). • RICOH PJ WXL5670: CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE • RICOH PJ WUL5670: CLASS 2 LASER PRODUCT-AVOID DIRECT EYE EXPOSURE •...
  • Page 14 Usage Notice LASER APERTURE DO NOT LOOK INTO THE LENS 5-1: WXL5670 5-1: WUL5670 English...

  • Page 15: Regulation & Safety Notices

    Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ WXL5670/ WUL5670 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ WXL5670/ WUL5670 Tested To Comply...
  • Page 16 Usage Notice RESPONSIBLE PARTY: Ricoh USA Inc. 5 Dedrick Place, West Caldwell, NJ 07006 Phone: 973-882-2000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifi cations not expressly approved by the manufacturer could void the user’s authority,...

  • Page 17: Declaration Of Conformity For Eu Countries

    Low Voltage Directive 2014/35/EC Notice: Users in EU countries CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: Ricoh Europe PLC 20 Triton Street, London. NW1 3BF, United Kingdom...
  • Page 18 Usage Notice The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling.
  • Page 19 Usage Notice Laser source specifi cation 3.5W laser diode x38 Laser emission port Wavelength: 450-460 nm Pulse duration: 1.39 ms Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators.

  • Page 20: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 21: Introduction

    Introduction Product Features Outstanding features include: Native resolution WXGA (1280x800), WUXGA (1920x1200)  ■  Maximum resolution HDMI 1920x1200 @ 60Hz ■ Light weight <25.13 lbs (11.4 kg) ■ Manual focus projection 1:1.8 zoom lens ■ Built-in full screen NTSC / PAL / SECAM video ■...

  • Page 22: Package Overview

    Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect...

  • Page 23: Product Overview

    Introduction Product Overview 1. Ventilation (inlet) 9. Adjustable feet 2. Control panel 10. Anti-theft lock hole 3. Ventilation (outlet) (Kensington™ lock) 4. Speaker 11. AC In socket 5. Zoom lever 12. Connection ports 6. Lens 13. Lens shift (horizontal) 7. Remote receiver 14.

  • Page 24: Connection Ports

    Introduction Connection Ports 5 6 7 10 11 Compatible with MHL version 2.2, the charging current 5V@0.9A. 1. HDMI3 In terminal 9. HDMI 1 In terminal (supports HDMI / 10. Computer In terminal MHL dongle) 11. Audio In terminal 2. 5V/1.5A terminal 12.

  • Page 25: Control Panel

    Introduction Control Panel Power indicator Indicate the projector’s power status. Lamp indicator Indicate the projector’s lamp status. Temp indicator Indicate the inside of the projector’s temperature status. Power Refer to the “Power On/Off the Projector” section. (pages 32~33) Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu.
  • Page 26 Introduction 10 Auto Set Automatically optimize image. 11 IR Receiver Receives signals from the IR remote. Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector. English...

  • Page 27: Remote Control

    Introduction Remote Control AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect Freeze Status Picture Power Refer to the “Power On/Off the Projector” section. (See pages 32~33) Input Press “Input” to choose your desired input source.
  • Page 28 Introduction Dim the projector lamp which will lower power consumption and extend the lamp life. Volume +/- Increase or decrease speaker volume. Video This function is not supported. HDMI Press “HDMI” to choose signal from HDMI 1, HDMI 2, or HDMI 3 In terminal. Magnify Zoom in the projector display.

  • Page 29: Remote Control Battery Installation

    Introduction Remote Control Battery Installation Push the clip to Install new batteries (AAA/ Close the battery cover release the battery R03). Ensure that you have and press it down until it cover. the batteries’ polarity (+/–) clicks into place. Do not mix aligned correctly.

  • Page 30: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 23.0’ (7m) and ±30° (horizontally), ±20° (vertically) in front of the projector. 23.0’ (7m) ±30°...

  • Page 31: Installing The Projector

    Introduction Installing the Projector When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines: ...

  • Page 32: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook Make sure that the 3D glasses power plug is fully inserted into both the projector AC inlet and 3D emitter the wall outlet. The AC outlet must be near this equipment and must be easily Microphone accessible.

  • Page 33: Connect To Av Equipment

    Basic Operations Connect to AV Equipment DVD Player HDTV receiver Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet. The AC outlet must be near this equipment and must be easily accessible.

  • Page 34: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Turn on the projector by pressing the button on the If you connect control panel or the button on the remote control.

  • Page 35: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the button and you will see a message as below on the on-screen display. Power Off? Press power key again. 2. Press the button to turn off the projector. If you do not press the button again, the warning message will disappear after 10 seconds.

  • Page 36: Warning Indicator

    Basic Operations Warning Indicator  When the “Temp” indicator lights red, it indicates the projector has overheated. The projector will automatically shut itself down. Warning! Temperature too High Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. When the “Temp”...

  • Page 37: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with rear and front adjustable feet to raise and lower the image to fi ll the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 38: Adjusting The Projector Focus

    Basic Operations Adjusting the Projector Focus You may turn the zoom lever to zoom in or out. To focus the image, turn the focus lever to left/right until the image is clear. Focus Distances (lens to wall): WXGA (WXL5670):  <Wide>...

  • Page 39: Adjusting Lens Shift

    Basic Operations Adjusting Lens Shift Do adjust lens shift, do the following: 1. Open the front side door of the projector. 2. Unlock the lens lock, before adjusting the lens shift. 3. Turn the vertical/horizontal lens shift knob to shift the lens. 4.

  • Page 40: Adjusting Projection Image Size

    Basic Operations Adjusting Projection Image Size Projection Image Size (Diagonal) for:  - WXGA (PJ WXL5670): 30” to 300” (0.76-7.6m). - WUXGA (PJ WUL5670): 30” to 300” (0.76-7.6m). Top View Screen Screen (W) Projection Distance (D) Width Screen (H) Screen...
  • Page 41 User Settings WXGA (WXL5670) Diagonal Screen Size W x H Projection Distance (D) Offset (Hd) length (inch) (inch) (feet) (cm) (feet) size of 16:10 Width Height Width Height Wide Tele Wide Tele Screen 0.65 0.40 25.59 15.75 1.44 4.72 10.0 0.07 0.33 1.08...

  • Page 42: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 43: Picture

    User Settings Picture Picture Mode Standard Brightness Contrast Saturation Sharpness Standard Gamma Native Color Temperature PICTURE Dynamic Black Advanced Select Enter Exit Picture Mode There are factory presets optimized for various types of images. The available options: Picture Mode Bright Standard Vivid sRGB...

  • Page 44: Color Temperature

    User Settings Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Contrast Press the key to decrease the contrast. ...

  • Page 45: Dynamic Black

    User Settings NCE (Natural Color Enhancer) Use this function to enhance color and reproduce vivid colors.  On: Enable NCE. Off: Disable NCE.  Dynamic Black Use this function to enhance light and shade details of a movie scene. Dynamic Black ...
  • Page 46 User Settings NCE Settings: Confi gure the image color settings.  NCE Settings Color Saturation Gain Select Adjust Exit - Color: Use the key to adjust the red, green, blue, cyan, yellow, magenta, and white color of the image. - Hue: Use the key to adjust the color balance of red and green.

  • Page 47: Screen

    User Settings Screen Aspect Ratio Auto Phase Clock H. Position V. Position Keystone Projection Normal PIP-PBP Settings SCREEN Advanced Select Enter Exit Aspect Ratio Use this function to choose your desired aspect ratio. Aspect Ratio Auto Auto: Automatically selects the appropriate display format. ...
  • Page 48 User Settings H. Position (Horizontal Position) Shift the projected image position horizontally. “H. Position” and H. Position “V. Position” functions are only supported under Computer Signal Press the key to move the image left.  source. Press the key to move the image right. ...
  • Page 49 User Settings Four Corner: Compensate for image distortion by adjusting one  corner at a time. Four Corners Select Enter Exit Reset: Return the keystone settings to the factory default values.  Reset Exit Projection Use this function to select the projector mode, depending upon how the projector is mounted.
  • Page 50 User Settings PIP (Picture in Picture)/PBP (Picture by Picture) Settings Use this function to display two image sources at once. From the list of active inputs, choose one input as a main source and the PIP/PBP is other as a sub source. not supported PIP-PBP Settings in the following...
  • Page 51 User Settings Location: Choose your desired sub-window location.  Location Top Left Top Right Bottom Left Bottom Right Location: Choose your desired sub-window size. The available  options: Large, Medium, and Small. Size Large Medium Small Swap: Swap the sources of the main- and sub-windows. ...

  • Page 52: Settings

    User Settings Settings Language English Auto Power Off (Min.) Monitor Out (Standby) Network (Standby) Network Security Reset SETTINGS Select Enter Exit Language Choose the multilingual OSD. Press “Enter” to open the sub menu and then use the key to select your preferred language.
  • Page 53 User Settings Monitor Out (Standby) Enable/Disable the Monitor output function. Monitor Out (Standby)  On: Enable the Monitor Out function at projector standby status. Off: Disable the Monitor Out function at projector standby  status. Network (Standby) Enable/Disable the network function. Consult network Network (Standby) administrator for...
  • Page 54 User Settings DHCP Client: Select “On” to allow the projector to obtain an  IP address automatically from your network. Select “Off” to manually assign IP, Subnet Mask and Gateway confi guration. DHCP Client Exit IP Address: Set an IP address or display IP address provided ...
  • Page 55 User Settings Apply: Select “Yes“ to apply the changes made in network  confi guration settings. Apply Exit MAC Address: Display MAC address.  Security Confi gure the security settings. Security Security Change Password Select Enter Exit Security: Select “On” to use the security verifi cation when the ...
  • Page 56 User Settings Reset Return the adjustments and settings to the factory default values. Choose “Yes” to return the display parameters on all menus except Language to the factory default settings. Reset Exit English...

  • Page 57: Audio

    User Settings Audio Mute Volume Microphone Volume AUDIO Select Enter Exit Mute Temporarily turn off the sound. Mute “Mute” function  affects both internal Choose “On” to mute the sound. and external speaker  Choose “Off” to turn mute off. volume.

  • Page 58: Options

    User Settings Options Auto Source Input Source Laser Settings Filter Settings High Altitude Power Settings Advanced PIP-PBP Module OPTIONS Information Select Enter Exit Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost. When this function is turned “Off”, it will only search a specifi...
  • Page 59 User Settings Laser Settings Use this option to view the laser diode usage status and confi gure the laser settings. Press the ► key to enter the sub menu and con- fi gure the desired settings. Laser Settings Laser Hours Used Laser Power Mode Normal Select...

  • Page 60: High Altitude

    User Settings If the reminder function is enabled and the usage time reached its limit, a message will appear on the screen to remind you to clean or change the fi lter. Warning! Dust Filters The usage time of the dust fi lter is reached. Please clean the dust fi...
  • Page 61 User Settings Sleep Timer (Min.): Set the countdown timer interval. The  projector will shut down automatically after the countdown has reached 0. Sleep Timer (Min.) Advanced Use this option to confi gure advanced options. Press the ► key to enter the sub menu and confi...
  • Page 62 User Settings Signal Information: Display the main source and sub source  related information. Signal Information Main Source Computer Resolution Color Space Source Computer Resolution Color Space Exit Picture Mode: Display the currently used picture mode.  Filter Hours Used: Display the fi lter hours. ...
  • Page 63 User Settings 3D Sync DLP-Link 3D Sync Invert 3D Format Select Enter Exit 3D Sync Use this option to select the appropriate 3D function. Compatible 3D source, 3D content 3D Sync DLP-Link External and Optical 3D glasses are required for 3D DLP-Link: Choose “DLP-Link”...
  • Page 64 User Settings 3D Format Use this option to select the appropriate 3D format content. 3D Format Auto Side by Side (Half) Top and Bottom Frame Sequential Select Enter Exit Auto: Use this mode to let the system to automatically select ...

  • Page 65: Lan Control

    LAN Control Controlling this Device with Web Browser When you are  You can control this device from a PC by using a web browser. connecting the device to an existing network, Connecting to the device set according to the instructions of the 1.

  • Page 66: Log In

    LAN Control Log in 1. When you open the web page, you will see a screen like the one below. If you are controlling by web browser, select "Admin". When controlling by Crestron, choose "Crestron". 2. Enter the password in the "Password" fi eld. When a password is enabled, you must enter the password.

  • Page 67: System Status

    LAN Control When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen. System Status The current status of the projector is displayed. You can check information such as fi rmware version number of the projector and IP address.

  • Page 68: General Setup

    LAN Control General Setup You can change the projector name and password with this item. The projector name  set here is also used in PJLink control. Only alphanumeric  characters and symbols can be used as projector name. The maximum number of characters is ...

  • Page 69: Projector Control

    LAN Control Projector Control You can control the projector with this item. The items for control are described in this section. Control button: When you click a button, the corresponding function will be performed. Power On The power of the projector turns on. To turn ON, click "Settings"...
  • Page 70 LAN Control Function button: When you click a button, the corresponding function will turn ON/OFF. (Function of the time of ON is described here.) Auto Source You will be automatically switched to the next input when the input signal is lost. High Altitude The projector is switched to High Altitude mode.
  • Page 71 LAN Control V.Position Adjust vertical position by +/- button. Value will return to the initial value when you click the Reset button. Magnify Adjust magnifi cation by +/- button. Value will return to the initial value when you click the Reset button. Adjust the projector by selecting a value from the pull-down menu.

  • Page 72: Network Setup

    LAN Control Network Setup Set the network of the projector. ► Automatically configuring the network settings from DHCP. Check automatic setting and then click “Apply”. ► Configuring the network settings manually. IPV6 cannot be used  in this device. Check manual setting, enter appropriate values in the IP address, Subnet Mask, Default Gateway (Gateway) and DNS Server fields, and then click "Apply".

  • Page 73: Alert Setup

    LAN Control Alert Setup You can send email alerts when an error occurs.  Only alphanumeric You can carry out settings for alert mail in this section. characters and symbols can be used in the password. The maximum number of characters is 32.
  • Page 74 LAN Control Conditions Conditions for sending Title of e-mail [System Overtemp] Temperature of the unit Over Temperature:xxx.xxx.xxx. is high xxx* [Fan1-5 Error/ Cooling fan has stopped Fan Lock:xxx.xxx.xxx.xxx* DMD Fan Error/ PW Fan Error] [Color Wheel Fail] Color wheel function has Color Wheel: xxx.xxx.xxx.xxx* failed.

  • Page 75: Crestron

    LAN Control Crestron You can use the control of projectors that uses Crestron. When projector is in standby mode, only the “Power” button will work. ► Power: Switch ON/OFF the power. ► Source List: Correspondence between the input display and input terminal of the device is as follows.

  • Page 76: Crestron Tools

    LAN Control Crestron Tools You can perform settings of the projector network and Crestron Room View. After setting the  user password, you will be able to access Crestron’s page by entering the password. After enabling the  Admin password, you will be able to access the page of Crestron tool only upon entering...

  • Page 77: Contacting The It Administrator Of Crestron

    LAN Control Contacting the IT administrator of Crestron You can contact the IT administrators who are using X-Panel. Crestron offers the  following two types of fi les. a)RoomViewExpress _6_3_3_7.exe b)Xpanel.exe Reset to Default You can reset the network to factory settings. Press the refl ect button.

  • Page 78: Reboot System

    LAN Control Reboot System You can restart the system. Press the restart button. English...

  • Page 79: Control The Projector Via The Projector Management Utility

    LAN Control Control the Projector via the Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be  This software managed using one computer.

  • Page 80: Installing Projector Management Utility

    LAN Control Installing Projector Management Utility Projector Management Utility is included on the supplied CD-ROM. Log in to the computer with administrator privileges to install or To uninstall  uninstall utilities. Projector Management 1. Close all applications. Utility, use the 2.
  • Page 81 LAN Control -Click [Auto Search] button. -List of projectors which support PJLink are displayed in the window. Projector name is displayed as “********” until authorization if password is enable. English English...
  • Page 82 LAN Control -Select the desired projector and click [Register] button. Password authorization is required if password of the projector is set to enable. -Click [OK] button to return to the original screen. 2. Directly specifi es the IP address and registers the projector. -Enter IP address of the desired projector and click [Confi...

  • Page 83: Control The Projector With The Projector Management Utility

    LAN Control Control the projector with the projector Management Utility Click [Remote Control] tab and select the desired projector in the list. You can control the selected projector by clicking control buttons in the bottom of the window. [Power] button Turn "On/Off"...
  • Page 84 LAN Control [Mute] button Turn "On/Off " the muting of the projectors or groups selected from the Projector (/Group) List. The projector only supports Video & Audio mute. [Detail Information] button Show detail information of the selected projector. English...

  • Page 85: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 86 Troubleshooting Problem: The screen of the Notebook computer is not displaying a presentation If you are using a Notebook PC:  Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
  • Page 87 Troubleshooting Problem: Image is reversed Select “SCREEN > Projection Mode” from the OSD menu to  adjust the image. Problem: Indicator lighting message POWER TEMP LAMP indicator indicator indicator STATUS (Red) (Blue) (Red) (Red) Steady light => STANDBY No light => POWER ON STANDBY LAN ON Flashing...

  • Page 88: Environmental Condition

    Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the  environmental condition. Warning! Temperature too High Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. Fan Error - the cooling system fan is not working.

  • Page 89: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) PC Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] Established 640 x 480 31.5 25.2 Timings 1 Established 640 x 480 35.0 26.8 Timings 1 Established 640 x 480 37.9 31.5 Timings 1...
  • Page 90 Appendices A. VGA Analog (1) PC Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] 1280x1024 64.0 108.0 1280x1024 77.0 133.0 SXGA Established 1280x1024 80.0 135.0 Timings 2 Standard Timing 1280x960 60.0 101.3 Identifi cation QuadVGA 1280x960 75.2 130.0 SXGA+...
  • Page 91 Appendices A. VGA Analog (3) VGA Analog - Component Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] 1080p 1920x1080 23.98/24 27.0 74.25 1080p 1920x1080 67.5 148.5 1080p 1920x1080 56.3 148.5 English English...
  • Page 92 Appendices B. HDMI Digital (1) PC Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] Established 640x480 31.5 25..2 Timings 1 Established 640x480 35.0 26.8 Timings 1 Established 640x480 37.9 31.5 Timings 1 Established 640x480 37.5 31.5 Timings 1 640x480 43.3...
  • Page 93 Appendices B. HDMI Digital (1) PC Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] Standard Timing 1280x960 60.0 101.3 Identifi cation Quad VGA 1280x960 75.2 130.0 SXGA+ 1400x1050 65.3 121.8 Standard Timing 1600x1200 75.0 162.0 Identifi cation UXGA 1920x1080 67.5...
  • Page 94 Appendices B. HDMI Digital (3) HDMI - Video Signal V.Frequency H.Frequency Pixel CLK EDID Modes Resolution Description (Hz) (kHz) [MHz] (Native)Short Video Descriptor 720p 1280x720 37.5 74.25 of CEA EDID Timing Short Video 1080i 1920x1080 60 (30) 33.8 74.25 Descriptor of CEA EDID Timing Short Video 1080i...

  • Page 95: Confi Gurations Of Terminals

    Appendices Confi gurations of Terminals Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out] Red (R/Cr) Input [R Output] DDC 5V [NC*] Green (G/Y) Input [G Output] Ground (Ver. sync.) Blue (B/Cb) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz.

  • Page 96: 12V Trigger

    Appendices 12V Trigger TIP (12 V) GND (0 V) Wired Remote PWR. SIG. English...

  • Page 97: Specifi Cations

    Appendices Specifi cations ■ List of general specifi cations WXGA (PJ WXL5670) WUXGA (PJ WUL5670) Item DLP chip 0.65” DMD WXGA 0.67” DMD WUXGA Projection Lens F# 2.3 - 3.15, f=17.63- 31.36mm, 1.8x Zoom Lens • <Wide> 8.86~26.57 feet (2.70~8.10m) •...

  • Page 98: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm Holes for ceiling mount Screw size and max. length: (4) M4-8 mm English...

  • Page 99: Trademarks

    Appendices Trademarks • DLP is trademarks or registered trademark of Texas Instruments. • Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. • HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
