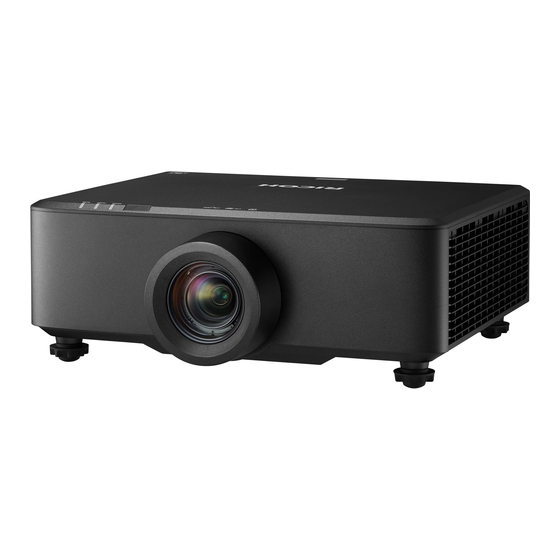

User's Manual
RICOH PJ WUL6670 / RICOH PJ WUL6680
1.
Usage Notice
2.
Introduction
3.
Basic Operations
4.
User Settings
5.
LAN Control
6.
Troubleshooting
7.
Appendices
Read this manual carefully before you use this machine and keep
it handy for future reference. For safe and correct use, be sure to
read the Precautions in this manual before using the machine.
RICOH PJ WUL6690

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ WUL6670 and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ WUL6670

Summary of Contents for Ricoh PJ WUL6670

  • Page 1 RICOH PJ WUL6670 / RICOH PJ WUL6680 RICOH PJ WUL6690 User’s Manual Usage Notice Introduction Basic Operations User Settings LAN Control Troubleshooting Appendices Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to...

  • Page 3: Table Of Contents

    Table of Contents Usage Notice ........2 Audio ..........62 Options ..........63 Precautions .........2 3D Settings ........67 Safety Labels of This Machine ..12 Controlling this Device with Web Regulation & Safety Notices .....14 Browser ..........69 Other Information ......20 LAN Control ........69 Package Overview ......21 Projector Login ........

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if Indicates a potentially hazardous situation which, if Warning- instructions are not followed, could result in death or instructions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice machine. Doing so could result in fire or electric shock. ■ Warning- It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock. ■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following: ■...
  • Page 6 Usage Notice After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock. ■...
  • Page 7 For sales or service representatives: - Use bracket or ceiling mount that is strong enough to support the projector. RICOH PJ WUL6670/ WUL6680/WUL6690 Series weight is approx. 14kg. - The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.
  • Page 8 Usage Notice ■ Caution- Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the machine or an accident. ■ Caution- Do not obstruct the machine’s vents. Doing so risks fire caused by overheated internal components.
  • Page 9 Failing to take these precautions could result in fire or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product. ■ Caution-...
  • Page 10 Usage Notice ■ Caution- Leave more than 1m of space between the intake vent and the partition or more than 1m of space between the exhaust vent and the partition. Partition ≥ 1m ≥ 1m (≥ 39.4”) (≥ 39.4”) ≥ 1m ≥...
  • Page 11 Usage Notice ABOUT THE LASER LIGHT SOURCE ■ Warning- Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children. ■ Caution- Never allow children to stare into the projector beam at any distance from the projector.
  • Page 12 Usage Notice REMOTE CONTROL BATTERY Warning • Do not touch the battery directly with bare hands if it leaks. If the liquid gets into your eyes, do not rub them. It may cause blindness. Immediately wash with clean water and consult a doctor. •...
  • Page 13 Usage Notice Notes • Be sure to use AAA (R03) size batteries. • When storing or disposing of batteries, insulate the terminals with tape or similar material. Do not mix with other batteries or metal objects. • Dispose of batteries at a designated disposal area and according to local rules.

  • Page 14: Safety Labels Of This Machine

    Usage Notice Safety Labels of This Machine 1. Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyesight. 2. Do not place anything in front of the lens while the projector is operating.
  • Page 15 Usage Notice WARNING: MOUNT ABOVE THE HEADS OF CHILDREN. ATTENTION: Montez au-dessus dela tête des enfants. Power Switch Symbols The meaning of the symbols for the switches on this machine as follows: : On/Standby (Off) English English...

  • Page 16: Regulation & Safety Notices

    Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ WUL6670/WUL6680/WUL6690 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ WUL6670/WUL6680/WUL6690 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules.
  • Page 17 Usage Notice RESPONSIBLE PARTY: PFU America, Inc. 3900 Freedom Circle, Suite 240, Santa Clara, CA 95054 Telephone number: (408)992-2900 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority,...
  • Page 18 ▀■ Low Voltage Directive 2014/35/EU Notice: Users in EU countries CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: PFU (EMEA) LIMITED Viale Monza 259, 20126 Milano (MI) Italy...
  • Page 19 Usage Notice Our Products contain high quality components and are designed to facilitate recycling. Our products or product packaging are marked with the symbol below. This product contains substances which are harmful to humans and the environment. The symbol indicates that the product must not be treated as municipal waste.
  • Page 20 Usage Notice Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Properly shielded and grounded cables and connectors must be used for connections to a host computer (and/or peripheral) in order to meet emission limits.
  • Page 21 Usage Notice Notice: Users in the EU and the UK Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.

  • Page 22: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 23: Package Overview

    Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.  Due to the difference in Projector Remote Control applications for each with Batteries, see country, some regions page 10 may have different...

  • Page 24: Product Overview

    Introduction Product Overview 1. Ventilation (outlet) 7. Speakers 2. Remote receiver 8. AC In socket/Power Switch 3. Ventilation (inlet) 9. Control panel 4. Adjustable feet 10. Anti-theft lock hole 5. Lens (Kensington™ lock) 6. Indicators 11. Connection ports English...

  • Page 25: Connection Ports

    Introduction Connection Ports 3 4 5 9 1011 1. Screen Trigger terminal 10. 3D Sync Out terminal 2. Remote In terminal 11. DC 5V/1.5A terminal 3. HDBaseT terminal 12. Audio In terminal  HDMI 1 supports v2.0 HDCP2.2 and 4. LAN terminal 13.

  • Page 26: Control Panel

    Introduction Control Panel ZOOM Adjust zoom. LENS SHIFT Adjust the lens vertical or horizontal offset setting. FOCUS Adjust focus. Four Directional , , or to select items or Select Keys make adjustments to your selection. ENTER Select or confirm settings. KEYSTONE Adjust keystone.
  • Page 27 Introduction MENU Press “MENU” to launch the on screen display (OSD), or exit the OSD menu. (See page 46) Power Refer to the “Power On/Off the Projector” section. (pages 34~35) 10 IR receiver Receive signals from the remote controller. Keep the signal path clear between the receiver and the remote controller.

  • Page 28: Remote Control

    Introduction Remote Control The meaning of the symbols for the switches on this machine are as follows: Standby : Standby Refer to the “Power On/Off the Projector” section. (See pages 34~35) English...
  • Page 29 Introduction Number (0~9) Input numbers. Change ID setting of remote control. (See page 28) Input Press “Input” to choose your desired input source. Enter Confirm your section of items in sub menu operation. Exit Press “Exit” to return to the previous screen.

  • Page 30: Remote Control Id Setup

    Introduction Auto Automatically synchronize the projector to the input source. Status Display menu “Display Status”. Power : On Refer to the “Power On/Off the Projector” section. (See pages 34~35) Remote Control ID Setup The IR remote allows individual addressing of projectors. The projector can be set with a specific number from “1”...

  • Page 31: Remote Control Battery Installation

    Introduction Remote Control Battery Installation The figure below shows the procedure for installing the battery.To remove the battery, reverse the procedure. Remove the bat- Install new batteries (AAA/ Close the battery cover and tery cover on the R03). press it down until it clicks back of the remote Ensure that you have the bat- into place.

  • Page 32: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 6m and ±30° in front and top of the projector. 6m ±30° 6m ±30° English...

  • Page 33: Installing The Projector

    Introduction Installing the Projector When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines: Position the projector on a flat surface at a right angle to the ...

  • Page 34: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook 3D glasses  Make sure that the power plug is fully DVD Player, inserted into both the Set-top Box, projector AC inlet and HDTV receiver IR receiver the wall outlet.  The AC outlet must Powered speaker be near this equipment Motorized screen...

  • Page 35: Connecting Hdbaset

    Basic Operations Connecting HDBaseT The HDBaseT connection facilitates communication of uncompressed HD multimedia contents. Using an HDBaseT transmitter (sold separately) makes it possible to connect multiple signals to the unit over an HDBaseT connection.  The illustration is RJ45 HDMI RS232 RJ45 for reference purpose HD Connect...

  • Page 36: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Turn on the projector by pressing the button on the  If you connect control panel or the button on the remote control.

  • Page 37: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the button on the control panel or the button on the remote control and you will see a message as below on the on-screen display. To turn off the power, press power key again. 2.

  • Page 38: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with rear and front adjustable feet to raise and lower the image to fill the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 39: Adjusting The Projector's Zoom And Lens Shift

    Basic Operations Adjusting the Projector’s Zoom and Lens Shift Adjusting the Projector’s Zoom / Focus is driven by electric motor, please use the remote /Keypad to adjust zoom scales, and focus until the image is clear.  Since the optical system is unstable after the power is turned on, wait around 30 minutes before adjusting.

  • Page 40: Adjusting Projection Image Shift

    Basic Operations Adjusting Projection Image Shift The projection lens can be moved up, down, right, and left with the motor-driven lens shift function. This function makes the positioning of images easy on the screen. Lens shift is generally expressed as a percentage of the image height or width, see below illustration.

  • Page 41: Lens Shift Range

    Basic Operations Lens Shift Range Lens Shift Range WUXGA ΔH ΔV ΔHo ΔVo RICOH PJ WUL6670 RICOH PJ WUL6680 RICOH PJ WUL6690 Lens optical axis The image position after lens calibration The symbols in the table and illustration have the following meaning: ΔH: The lens shift range in horizontal direction when the lens...

  • Page 42: Adjusting Projection Image Size

    Basic Operations Adjusting Projection Image Size Adjusting image size start Projection Image Size (Diagonal) for WUL6670: Aspect ratio = 16:10  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m)
  • Page 43 Basic Operations Aspect ratio = 4:3  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m) 0.81 0.61 1.17 1.47 0.34 0.34 1.02 0.76 1.47 1.85 0.42...
  • Page 44 Basic Operations Adjusting image size finish Aspect ratio = 16:9  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m) 0.89 0.50 1.06 1.34 0.30 0.30 1.11...
  • Page 45 Basic Operations Projection Image Size (Diagonal) for WUL6680/WUL6690 Aspect ratio = 16:10  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m) 0.65 0.40 0.77 1.26 0.22...
  • Page 46 Basic Operations Aspect ratio = 4:3  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m) 0.61 0.46 0.88 1.43 0.25 0.25 0.81 0.61 1.19 1.93 0.34...
  • Page 47 Basic Operations Aspect ratio = 16:9  Projection Image Size (Diagonal) Distance (D) Max. Lens shift (SV) Width Height (inch) Min (m) Max (m) Upper (m) Lower (m) H (m) V (m) 0.66 0.37 0.80 1.30 0.23 0.23 0.89 0.50 1.08 1.75 0.30...

  • Page 48: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 49: Picture

    User Settings Picture Picture Mode Bright Brightness Contrast Saturation Sharpness Gamma PICTURE Color Temperature High Contrast Mode HDR Settings Advanced Select Enter Return Picture Mode There are factory presets optimized for various types of images. The available options are: Bright: Mode for emphasizing brightness. ...
  • Page 50 User Settings Contrast Press the key to decrease the contrast.  Press the key to increase the contrast.  Saturation Adjust the color saturation of the image. Saturation Press the key to decrease the amount of color in the image. ...
  • Page 51 User Settings EOTF (Electro-Optical Transfer Function): Choose this mode  from low to high (brighter and more saturated colors). NCE (Natural Color Enhancer) Use this function to enhance color and reproduce vivid colors. On: Enable NCE.  Off: Disable NCE. ...

  • Page 52: Screen

    User Settings Screen Aspect Ratio Auto Phase Clock H. Position V. Position Distortion SCREEN Auto Ceiling Projection Normal Lens Settings PIP / PBP Advanced Select Enter Return Aspect Ratio Use this function to choose your desired aspect ratio. Auto: Automatically selects the appropriate display format. ...
  • Page 53 User Settings H. Position (Horizontal Position) Shift the projected image position horizontally. H. Position  “H. Position” and “V. Position” Press the key to move the image left.  functions are only supported under Press the key to move the image right. ...
  • Page 54 User Settings Memory: The projector allows the user to save up to five  geometry memories, including the ones set directly on the projector and the ones configured via external software tools. The available options are Load (Memory 1~5) / Save (Memory 1~5) / Clear.
  • Page 55 User Settings Main Source: Select an input source for the main image.  The available input sources are VGA (Computer) / HDMI1 / HDMI2 / HDBaseT. Sub Source: Select an input source for the sub image.  The available input sources are VGA / HDMI1 / HDMI2 / HDBaseT.
  • Page 56 User Settings Size: Change the display size of the sub source in PIP mode.  The available options are Large / Medium / Small.  Flashing lines may Swap: Swap the main source and sub source.  occur if the bandwidth of both inputs are too Advanced high, please try to...
  • Page 57 Logo: The logo, displayed during startup and when there is no  signal, is switched. - Standard: Ricoh logo is displayed. - Custom Logo: The logo registered by the customer is displayed. Custom logo can be loaded by the web page of this machine.

  • Page 58: Using Blending Function

    User Settings Using Blending function Step 1 Using the Blending function can reduce the distinct appearance of joining portions between two screens when connecting images from multiple projectors. Horizontally connecting images from two projectors positioned to the left and right, shown within the red frame, for image signals  Blending reduces described below, is explained.
  • Page 59 User Settings Step 2 Set the magnification ratio of Projector 1. In the OSD menu, select [Screen] → [Advanced] → [Magnify] → [H.Magnify] and set the magnification ratio for the horizontal direction. The magnification ratio is set with a percentage value (%), therefore the adjustment must be made to ensure “number of horizontal units x 100 - overlapped portions (%)”.
  • Page 60 User Settings Step 4 Adjust the positions of the two projectors, lens shift, and zoom to ensure that the overlapped projected image from both projectors overlaps completely and the overlap is not as visible. Once the adjustments are completed, projected images will have  In the event overlapped portions that are displayed as bright images.

  • Page 61: Settings

    User Settings Settings Language English Auto Power Off (min.) Network Settings Network Functions Remote Settings Security SETTINGS Reset Select Enter Return Language Choose language of the multilingual OSD. Press “Enter” to open the sub menu and then select your preferred language. Press “Enter”...
  • Page 62 User Settings - Subnet Mask: Set subnet mask number or display subnet mask number provided from server.  Even if not used a gateway, set an IP - Gateway: Set the default gateway of the network connected address within the to the projector or display the default gateway of the network same segment as this provided from server.
  • Page 63 User Settings Remote Settings Configure how to operate the projector remotely. Top Receiver: Enable or disable the top remote receiver.  Front Receiver: Enable or disable the front remote receiver.  HDBaseT Terminal: Enable or disable to use the remote signal ...

  • Page 64: Audio

    User Settings Audio Mute Volume AUDIO Select Enter Return Mute Temporarily turn off the sound. Mute  Choose “On” to mute the sound.  “Mute” function affects both internal  Choose “Off” to turn mute off. and external speaker Volume volume. Adjust the volume level.

  • Page 65: Options

    User Settings Options Auto Source Input Source HDMI Output HDMI 1 Network (Standby) High Altitude Laser Settings OPTIONS Power Settings Advanced Information Select Enter Return Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost. When this function is turned “Off”, it will only search a specified connection port.
  • Page 66 User Settings Laser Settings Configure light source settings. Laser Power Mode: Set the Laser power.  - Constant Power: Mode that lights up with constant power. - Constant Luminance: Mode to maintain brightness. - Eco.: Low power lighting mode, can reduce power consumption and extend laser life.
  • Page 67 User Settings - Time Zone: Set a time zone for the network clock mode. - Update Interval: Set the date and time update interval.  When Use - Apply: Apply date and time modifications. NTP Server of Clock Mode is selected, Schedule: Schedule the projector functions to operate ...
  • Page 68 User Settings User can save up to 5 records. - Load all settings: Load the previously saved user data. - Clear Memory: Clear all the projector settings as user data. Service: For service use only.  Information Display the projector information. Projector: Display total projector hours.

  • Page 69: 3D Settings

    User Settings 3D Settings 3D Sync Invert 3D Format 3D Sync External 3D Sync Output Normal External 3D Sync Frame Delay 3D Settings Select Enter Return 3D Sync Invert Use this option to enable/disable the 3D sync invert function. Off: Choose “Off” for default frame contents. ...
  • Page 70 User Settings 3D Sync Select a proper 3D technology according to how the 3D sync signal is processed. DLP-Link: Select DLP-Link when the 3D sync signal is  generated by the DLP Link technology built into the projector. DLP Link works only with the glasses that are compatible with DLP 3D technology and the 3D function is enabled.

  • Page 71: Controlling This Device With Web Browser

    LAN Control Controlling this Device with Web Browser You can control this device from a PC by using a web browser. System Requirements  Make sure Web To use the web control panel, make sure your devices and server is enabled. software meet the minimum system requirements.
  • Page 72 LAN Control LAN Cable English...
  • Page 73 LAN Control 1. Assign IP address to the projector: • From the OSD menu, select Settings > Network Settings > LAN Settings > DHCP. LAN Settings DHCP IP Address Subnet Mask Gateway Apply MAC Address Select Enter Return • Turn off DHCP, and manually set the projector’s IP Address, Subnet Mask, and Gateway.
  • Page 74 LAN Control 3. Enable Web Server service: • From the OSD menu, select Settings > Network Functions > Web Server. Network Functions Extron PJLink PJLink Notification PJLink Setup Apply Telnet Web Server Reset Select Enter Return • Select “On” to enable the Web Server. Using the web control panel 4.
  • Page 75 LAN Control Web page of this projector The web page described below is displayed when a user logs onto the unit as the administrator. The menu is displayed on the left side. The menu displays only Operation and Settings, Display  Details of such Status and Software License when a user logs onto the unit as a operations may...

  • Page 76: Projector Login

    LAN Control Menu Description Network Accounts are set up for controlling the unit with  There are a web browser. There are two types of accounts, Account two types of namely the administrator (Administrator) and the accounts for this user (User) accounts. web page, namely Network settings can be changed.

  • Page 77: Operation & Settings

    LAN Control Operation & Settings On this page, you can enable or disable direct keys, configure the PIP-PBP settings, configure screen settings, enable or disable Network standby, and select Logo.  Logo replacement is only supported for images with the specified resolutions(1920x1200) and file format(png).

  • Page 78: Date And Time

    LAN Control Date and Time On this page, configure date and time settings. English...

  • Page 79: Schedule

    LAN Control Schedule On this page, configure schedule settings from Monday to Sunday. English English...

  • Page 80: Display Status

    LAN Control Display Status On this page, view the projector information about its status and settings.  The projector information is read only. Upgrade On this page, upgrade the system. Select “Upgrade” to upgrade to the latest Firmware version by selecting upload file in the computer.

  • Page 81: Software License

    LAN Control Software License On this page, view software license. Account On this page, setup password for Admin and User. English English...

  • Page 82: Network Settings

    LAN Control Network Settings On this page, setup LAN interface and configure LAN settings on the projector. Network Functions On this page, configure network functions and reset control settings. Setup LAN function on the projector: From the web control panel, select “Network Functions to enable LAN function from Extron /  The default PJLink / AMX / Telnet / Web Server.

  • Page 83: Controlling The Projector With The Projector Management Utility

    The Projector Management Utility can be downloaded from our  Although the unit web site. supports the PJLink https://support.ricoh.com/bbv2/html/dr_ut_d/projector/ Class 2, the software supports Class 1. Note Log onto the unit with an administrator authority to install or that the utility does uninstall the utility.
  • Page 84 LAN Control Register projectors 1.  R egisters the projectors with Auto search - Click [Register Projector] button. - Click [Auto Search] button. English...
  • Page 85 LAN Control - List of projectors which support PJLink are displayed in the window. Projector name is displayed as “********“ until authorization if password is enable. - Select the desired projector and click [Register] button. Password authorization is required if password of the projector is set to enable.
  • Page 86 LAN Control 2. Directly specifies the IP address and registers the projector. - Enter IP address of the desired projector and click [Confirm] button then the projector name will be displayed. After confirming the projector name, click [Register] button. Control the projector with the projector Management Utility Click [Remote Control] tab and select the desired projector in the list.
  • Page 87 LAN Control [Mute] button Turn “On/Off “ the muting of the projectors or groups selected from the Projector (/Group) List. The projector only supports Video & Audio mute. [Detail Information] button Show detail information of the selected projector. English English...

  • Page 88: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 89 Troubleshooting Problem: The image is stretched when displaying DVD Select “Screen > Aspect Ratio” from the OSD menu to show  image with proper aspect ratio. Problem: Image is too small or too large ” ” Press the “Zoom or “Zoom on the remote control or the ...
  • Page 90 Troubleshooting Problem: Turns off during use The power will automatically turn off after 20 minutes of no  signal by factory settings. Select “Settings > No Signal Power Off” to adjust the time. Check if the ambient temperature is too high. ...
  • Page 91 Troubleshooting Status Temp Power indicator STATUS indicator indicator LED status (Red) (Red) (Green) (Red) Flashing FAN 3 LOCK (3 sec off/ 3 sec on) Flashing Indicator lighting message 2/2 FAN 4 LOCK (3 sec off/ 3 sec on) Flashing FAN 5 LOCK (1 sec off/  Fan4 to 8 only 1sec on)
  • Page 92 Troubleshooting Problem: Message Reminders  Temperature Error - When the “Temp” indicator lights red, Operating the  it indicates the projector has overheated. The projector will projector while having automatically shut itself down. dust and dirt at the ventilation inlet cause Warning! TEMPERATURE TOO HIGH of the laser units failed Please:...

  • Page 93: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) PC Signal Modes Resolution Aspect Ratio V Sync (Hz) YPbPr 640 x 350 1.83 64:35 640 x 400 16:10 640 x 480 1.33 720 x 400 SVGA 800 x 600 1.33 832 x 624 848 x 480 1.77...
  • Page 94 Appendices A. VGA Analog SXGA 1280 x 960 1.33 1280 x 1024 1.25 Modes Resolution Aspect Ratio V Sync (Hz) YPbPr WXGA 1360 x 768 1.78 16:9 1366 x 768 SXGA+ 1400 x 1050 1.33 WXGA+ 1440 x 900 16:10 WXGA++ 1600 x 900 1.78...
  • Page 95 Appendices A. VGA Analog EDTV (576p) 720 x 576 1.25 HDTV (1080i) 1920 x 1080 1.78 16:9 59.94 HDTV (720p) 1280 x 720 59.94 HDTV (1080p) 1920 x 1080 23.98 29.97 59.94 ”V” video format is supported. ”X” video format is not supported. English English...
  • Page 96 Appendices B. HDMI Digital (1) PC Signal Modes Resolu- Aspect Ratio V Sync YCbCr 4:4:4 YCbCr tion (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 640 x 350 64:35 640 x 400 16:10 640 x 480 1.33...
  • Page 97 Appendices B. HDMI Digital Modes Resolu- Aspect Ratio V Sync YCbCr 4:4:4 YCbCr tion (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit SXGA 1280 x 960 1.33 1280 x 1.25 1024 WXGA 1360 x 768 1.78 16:9...
  • Page 98 Appendices B. HDMI Digital EDTV 720 x 576 1.25 (576p) HDTV 1920 x 1.78 16:9 (1080i) 1080 59.94 HDTV 1280 x 720 (720p) 59.94 Modes Resolu- Aspect Ratio V Sync YCbCr 4:4:4 YCbCr tion (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit HDTV 1920 x...
  • Page 99 Appendices B. HDMI Digital (4) Frame Sequential 3D Signal SVGA 800 x 600 1.33 1024 x 768 HDTV 1280 x 720 1.78 16:9 WXGA 1280 x 800 1.60 1080p 1920 x 1.78 1080 WUXGA 1920 x 16:10 1200 Modes Resolu- Aspect Ratio V Sync YCbCr 4:4:4...
  • Page 100 Appendices C. HDBaseT Digital (1) PC Signal Modes Resolution Aspect Ratio V Sync YCbCr 4:4:4 YCbCr (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 640 x 350 64:35 640 x 400 16:10 640 x 480 1.33 720 x 400...
  • Page 101 Appendices C. HDBaseT Digital Modes Resolution Aspect Ratio V Sync YCbCr 4:4:4 YCbCr (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit SXGA 1280 x 960 1.33 1280 x 1024 1.25 WXGA 1360 x 768 1.78 16:9 1366 x 768...
  • Page 102 Appendices C. HDBaseT Digital EDTV 720 x 576 1.25 (576p) HDTV 1920 x 1080 1.78 16:9 (1080i) 59.94 HDTV 1280 x 720 (720p) 59.94 Modes Resolution Aspect Ratio V Sync YCbCr 4:4:4 YCbCr (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit HDTV 1920 x 1080...
  • Page 103 Appendices C. HDBaseT Digital (4) Frame Sequential 3D Signal SVGA 800 x 600 1.33 1024 x 768 HDTV 1280 x 720 1.78 16:9 WXGA 1280 x 800 1.60 16:10 1080p 1920 x 1080 1.78 16:9 WUXGA 1920 x 1200 16:10 ”V”...

  • Page 104: Configurations Of Terminals

    Appendices Configurations of Terminals Terminal: Computer In (D-sub 15 pin) Red (R) Input [R Output] DDC 5V [NC*] Green (G) Input [G Output] Ground (Ver. sync.) Blue (B) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz. sync. Input [Output] (Composite H/V sync.

  • Page 105: Terminal: Audio In/ Audio Out

    Appendices PC Control Terminal Setting Items Method Communication Method Asynchronous Communication Baud Rate 9600 Data Bits 8 bits Parity None Stop Bits Flow Control None PC Control Terminal Signals Connection Computer COM Port Projector PC Control Terminal (D-Sub 9-pin connector) (D-Sub 9-pin connector) D-sub 9p shell is ...

  • Page 106: Specifications

    Appendices Specifications ■ List of general specifications WUL6670 WUL6680 WUL6690 Item Type (Resolution) (WUXGA) ® Dimension (WxDxH) 486 x 376 x 150 mm (W/O feet) Weight (projector) Approx. 12kg Approx. 13.5kg • HDMI 1 v2.0 HDCP2.2 • HDMI 2 v1.4 HDCP1.4 •...

  • Page 107: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm RICOH PJ WUL6670 English English...
  • Page 108 Appendices Unit: mm RICOH PJ WUL6680/WUL6690 English...

  • Page 109: Ceiling Mount Installation

    Appendices Ceiling Mount Installation Unit: mm 1. To prevent damage to your projector, please use the RICOH ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure Mounting holes for  the screws used to attach a mount to the projector meet the ceiling mount.

  • Page 110: Copyrights

    Appendices Copyrights This projector uses open source and/or third party software. To check the information about software copyrights, see “Software License” in the web control panel. You can also view and download the source code from: http://www. support-download.com/bb/html/dr_ut_e/oss/index.htm Trademarks • DLP is trademarks or registered trademark of Texas Instruments.
  • Page 111 © 2023  Y0GL 6221 © 2023  Y0GL 6221...
