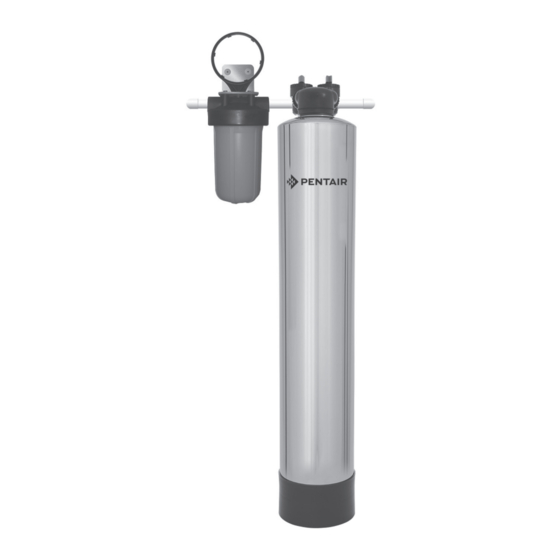

- Page 1 WHOLE HOUSE WATER FILTER SYSTEM PC600-P | PC1000-P pentair.com/homewater...
-
Page 2: Table Of Contents
“jumper wire” to bridge the equipment and re- establish the contiguous conductive nature of the plumbing before using this Pentair system. Failure to do so can result in errant electricity from improperly grounded appliances or potential galvanic activity in the plumbing system, which could increase the risk of fire or injury while using your home appliances. -
Page 3: Product Operation And Specifications
COMPLETE PARTS LIST Note The parts supplied are intended to accommodate a variety of water supply lines. Additional fittings may be needed to fit to your plumbing. Visit pentair.com to view our full line of installation kits. Part Description Qty. -
Page 4: Installation Overview
INSTALLATION OVERVIEW Wall Wall Wall Wall Incoming Outgoing Water Water to Supply House Incoming Outgoing Water Sediment Filter Water to Supply House Sediment Filter Top View Top View Carbon Water Filter System Carbon Water Filter System Bypass Bypass Water to Home Shut Off Valves Water to Home Shut Off Valves... -
Page 5: Pre-Installation
PRE-INSTALLATION Note Head may come loose in transit. Please check head by tightening clock wise, hand tighten only, no more than turn. Head may not move at all or less than turn. Bypass Valve Installation Red Arrow Quick Connect Nut Top View Water Filter Head Carbon Water Filter System... -
Page 6: Media Soak
MEDIA SOAK Wall Wall Incoming Outgoing Water Water to Supply House Sediment Filter Top View Carbon Water Filter System Bypass Carbon Soak/Rinse Note Steps 1-3 should be done prior to installation 1. Locate the carbon filter tank and the hose bib attachment. 2. Attach the hose bib attachment to “Inlet” side of the carbon filter. Attach garden hose to the hose bib and turn water slowly until water flows out of the outlet of the tank (a stream of water about the size of a pencil). Allow this water to flow out for 15 minutes. Water to Home Shut Off Valves Note Sediment Filter The first few gallons of water could look black and cloudy due to the carbon fines, this is a normal occurrence. -
Page 7: Sediment Filter Installation
SEDIMENT FILTER INSTALLATION Note Sediment filter position is at the discretion of your professional installer. As a general guideline, the sediment pre filter is typically installed in the "pre" position (as shown above) for well-water applications. For city water applications, the sediment filter is typically installed in the "post"... -
Page 8: Carbon Water Filter System Tank Installation
2. Determine the size and material of your incoming water supply line and choose the appropriate plumbing required to adapt Bypass to the 1” male NPT Assembly. Note Visit Pentair.com/homewater to view our full line of installation kits. CAUTION Water to Home Do not over-tighten any of the fittings during installation. -
Page 9: Bypass Valve Operations
2. Peel off the protective plastic wrap from the stainless steel tank jacket(s) 3. Add the Pentair logo sticker(s) in the desired location on the tank. 4. Wax stainless steel tank jacket(s) with wax provided (or any other non-abrasive auto wax) a minimum of 1-2 times per year or as needed based on the installed environment. -
Page 10: Maintenance
MAINTENANCE Media Replacement Your Pentair® PC600-P / PC1000-P Premium Whole House Water Filter requires care and cleaning after a period of 5 years. Replacement media and instructions can be ordered on-line at Pentair.com/homewater or by calling 877-842-1635. Model numbers for replacement media are PC600-R or PC1000-R. -
Page 11: Troubleshooting
Rotate the white retainer cap to expose the check valve. Clean o-ring, inner housing and Replace. Note If you have experienced a Boil Alert or require your system to be sanitized, please go to pentair.com/assets/pwsboilalert for product sanitization instructions. 12 •... -
Page 12: Product Warranty And Registration Form
PRODUCT WARRANTY AND REGISTRATION FORM For details on your Pentair product warranty, please visit Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit pentair.com/register-warranty to complete the warranty registration form online. Date Item(s) were Received:... -
Page 13: Product Certification
PRODUCT CERTIFICATION Certified By IAPMO R&T to NSF/ANSI Standard 42 for the reduction of Chlorine Taste & Odor, structural integrity & NSF/ANSI 61 for material safety. HOUSE WATER FILTER SYSTEM • 13... - Page 14 PERFORMANCE DATA SHEET Performance Data - Pentair Whole House Filters Model Replacement Max Operating Rated Capacity Operating Rated Rated Pressure Drop Pressure Temp Range Flow (At Rated Flow) PC600-P PC600-R 25-80 PSI 662,400 gallons 36°F – 120°F 8 GPM 13 PSI...
- Page 15 WHOLE HOUSE WATER FILTER SYSTEM • 15...
- Page 16 2361 Mason Ave | Suite 100 | Daytona Beach, FL 32117 | United States P: 877.842.1635 | Technical Services: 877.842.1635 | pentair.com/homewater © 2021 Pentair. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
