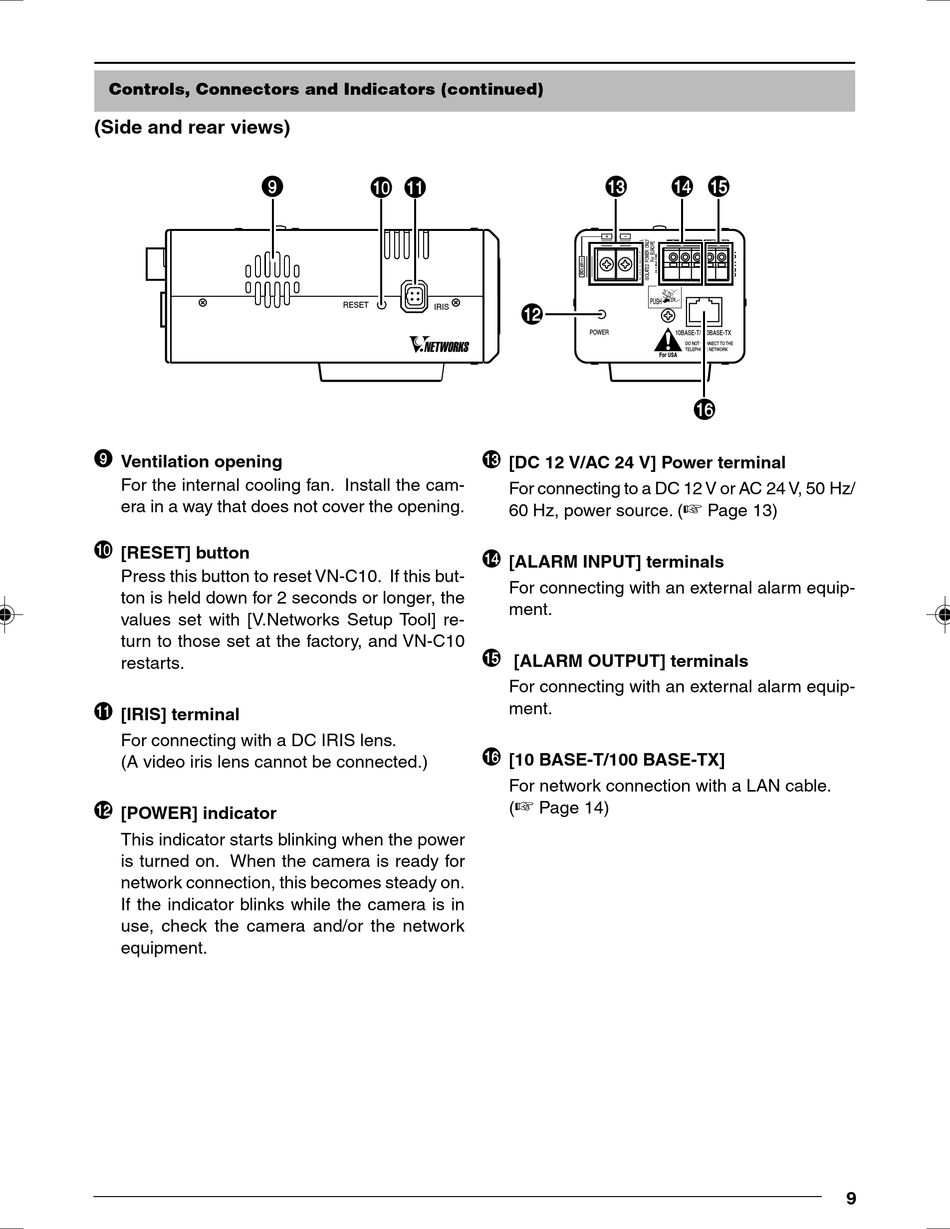

Controls, Connectors and Indicators (continued)
(Side and rear views)
9
Ventilation opening
For the internal cooling fan. Install the cam-
era in a way that does not cover the opening.
0
[RESET] button
Press this button to reset VN-C10. If this but-
ton is held down for 2 seconds or longer, the
values set with [V.Networks Setup Tool] re-
turn to those set at the factory, and VN-C10
restarts.
!
[IRIS] terminal
For connecting with a DC IRIS lens.
(A video iris lens cannot be connected.)
@
[POWER] indicator
This indicator starts blinking when the power
is turned on. When the camera is ready for
network connection, this becomes steady on.
If the indicator blinks while the camera is in
use, check the camera and/or the network
equipment.
9
!
0
RESET
IRIS @
POWER
#
[DC 12 V/AC 24 V] Power terminal
For connecting to a DC 12 V or AC 24 V, 50 Hz/
60 Hz, power source. (
$
[ALARM INPUT] terminals
For connecting with an external alarm equip-
ment.
%
[ALARM OUTPUT] terminals
For connecting with an external alarm equip-
ment.
^
[10 BASE-T/100 BASE-TX]
For network connection with a LAN cable.
☞
( Page 14)
# $ %
1 OUT COM
1 2 G 2
ALARM
PUSH
10BASE-T/100BASE-TX
DO NOT CONNECT TO THE
TELEPHONE NETWORK
