Preparations (Step 1 Connection and Installation)

Connecting a LAN Cable

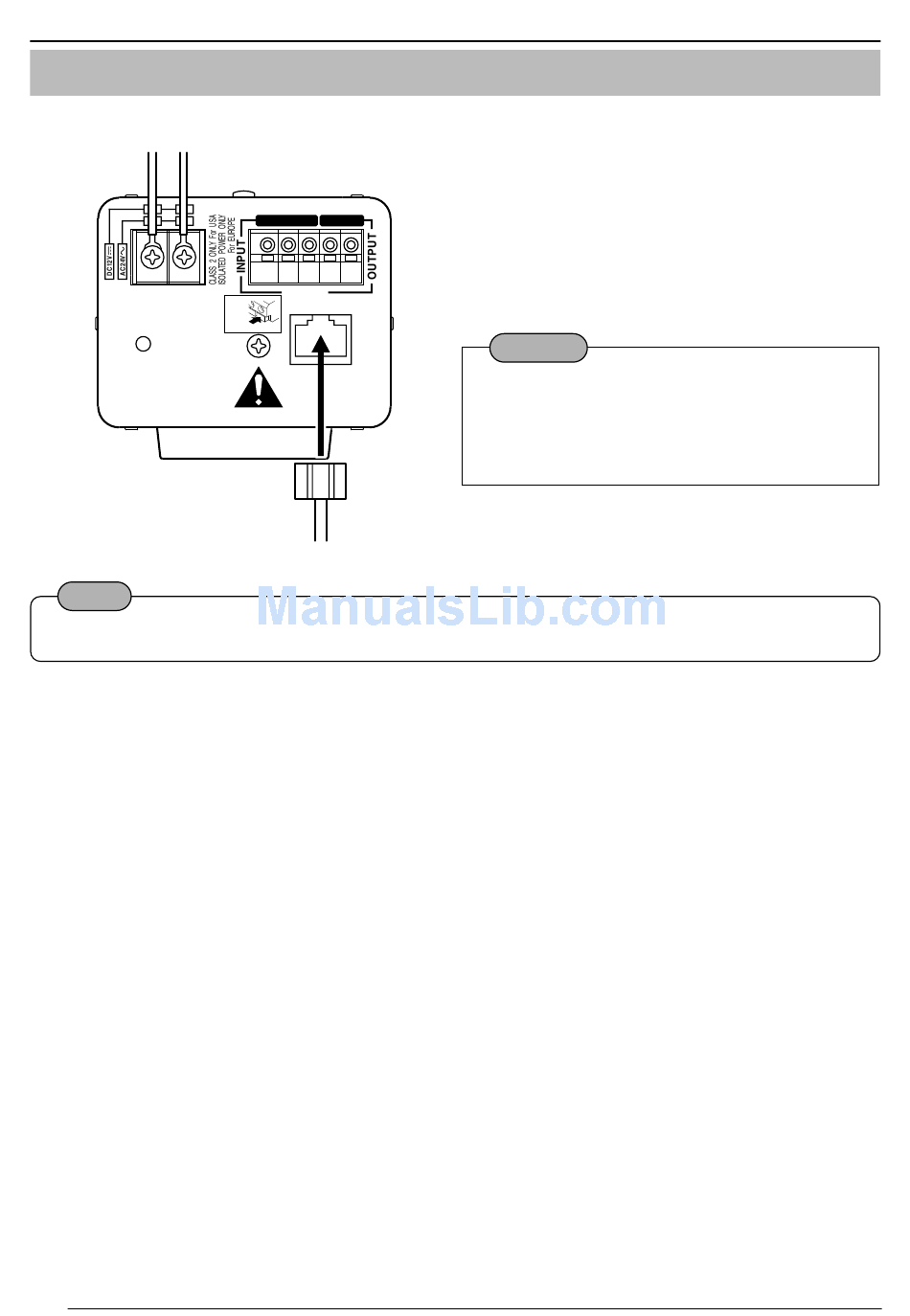

Connect the camera to a hub or a PC by using a LAN cable.
1 2
POWER
Note
For 100 BASE-TX, use a CAT-5 cable.
14
G 2 1 OUT COM
ALARM
PUSH
10BASE-T/100BASE-TX
DO NOT CONNECT TO THE
TELEPHONE NETWORK
For USA
• For hub connection
Use a straight cable.
• For PC connection
Use a cross-over cable.
Caution
There are a few types of LAN board for
which a cross-over cable cannot be used.
Check the specifications of the LAN board
to be used before performing connection.
