SP10

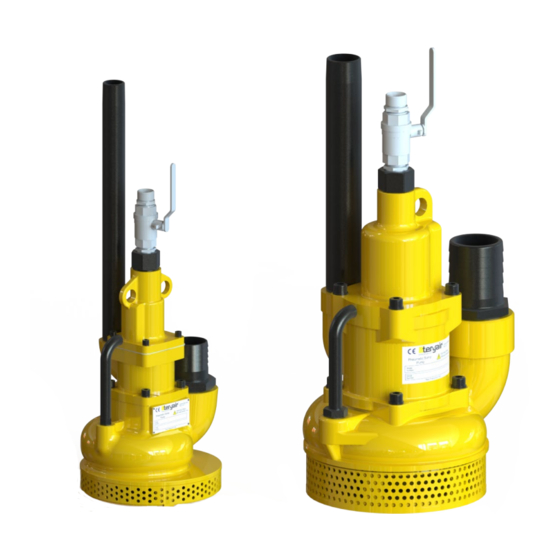

Pneumatic Submersible Pump 2"
SP25
Pneumatic Submersible Pump 2-½"
Read this manual carefully before installing, operating or servicing this equipment. It's the responsi-
bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
This document is issued with Product Serial No
Operation and Maintenance Guide
S P - 10
S P - 25
IMPA Number
59 16 35
59 16 36
Advertisement
Table of Contents
Related Manuals for Teryair SP25
Summary of Contents for Teryair SP25
- Page 1 Operation and Maintenance Guide S P - 25 S P - 10 Models Descriptions IMPA Number SP10 Pneumatic Submersible Pump 2" 59 16 35 SP25 Pneumatic Submersible Pump 2-½" 59 16 36 Read this manual carefully before installing, operating or servicing this equipment. It’s the responsi- bility of the employer to ensure this manual is read by the operator.
-
Page 2: Table Of Contents
Operation and Maintenance Guide Sump Pump Page 2 Table of Contents Introduction Technical Data Safety Instructions Operating Instructions Suggested Lubricants Troubleshooting Diassembly and Re-assembly of SP10 Bill of Materials for SP-10 Exploded View for SP 10 Pump Exploded View Detail A for SP-10 Pump Exploded View Detail B & Detail C for SP-10 Pump Diassembly and Re-assembly of SP25 Exploded View for SP 25 Pump Exploded View Detail A for SP-25 Pump Exploded View Detail B & Detail C for SP-25 Pump Bill of Materials for SP-25 Dimensional Data Repair Kits for SP-10 & SP-25 Repair Kits for SP-10 Repair Kits for SP-25 Test Certificate Of Materials, Performance Eu Declaration Of Conformity Warranty Certificate FF-MM-321-REV - 03... -
Page 3: Introduction
Page 3 Introduction Teryair Pneumatic Centrifugal Pumps are used to empty ballast tanks, bilge wells, etc. Often used for draining cargo holds during and after the washing procedure. Teryair Centrifugal pumps have a small cross-section and hence can be lowered into areas having small access hatches. -
Page 4: Operating Instructions
Please check the hose connection prior to starting pump. Use genuine Teryair spares and if possible mention the serial number of the pump Store these pump in secure & dry environment. when ordering spares. -
Page 5: Suggested Lubricants
Operation and Maintenance Guide Sump Pump Page 5 Suggested Lubricants Brand Above 27 Deg C ( From 5 Deg C to 27 Deg C Below 5 Deg C Shell Toona R.72 Toona R.41 Toona R.27 Mobil Almo 529 Almo 527 Almo 525 Esso -- -- -- --... -
Page 6: Diassembly And Re-Assembly Of Sp10
Operation and Maintenance Guide Sump Pump Page 6 O-rings (36) from Motor Housing (1) and Diassembly and Re-assembly of SP10 replace it with new ones. (If found worn- Disassembly and Re assembly SP10 out) Disconnect the air supply to the pump. -
Page 7: Bill Of Materials For
Operation and Maintenance Guide Sump Pump Page 7 Bill of Materials for SP-10 Illustration Part Description SP-10 Illustration Part Description SP-10 Number Number Number Number 1995036 ROLL PIN (LOWER/ UPPER) 1999750 GATE VALVE 1992115 SPACER (UPPER BEARING) 5009043 INTERNAL CIRCLIP FOR AIR STRAINER 1992113 ROTOR... -
Page 8: Exploded View For Sp 10 Pump
Operation and Maintenance Guide Sump Pump Page 8 Exploded View for SP 10 Pump DETAIL A DETAIL C DETAIL B FF-MM-321-REV - 03... -
Page 9: Exploded View Detail A For Sp-10 Pump
Operation and Maintenance Guide Sump Pump Page 9 Exploded View Detail A for SP-10 Pump DETAIL A FF-MM-321-REV - 03... -
Page 10: Exploded View Detail B & Detail C For Sp-10 Pump
Operation and Maintenance Guide Sump Pump Page 10 Exploded View Detail B & Detail C for SP-10 Pump DETAIL B DETAIL C FF-MM-321-REV - 03... -
Page 11: Diassembly And Re-Assembly Of Sp25
Operation and Maintenance Guide Sump Pump Page 11 Diassembly and Re-assembly of SP25 O-ring (39), and Oil Seal (34) from Motor Disassembly and Re assembly SP25 Housing (37) and replace them with new ones. (If found damaged) Disconnect the air supply to the pump. m. -
Page 12: Exploded View For Sp 25 Pump
Operation and Maintenance Guide Sump Pump Page 12 Exploded View for SP 25 Pump DETAIL A DETAIL C DETAIL B FF-MM-321-REV - 03... -
Page 13: Exploded View Detail A For Sp-25 Pump
Operation and Maintenance Guide Sump Pump Page 13 Exploded View Detail A for SP-25 Pump DETAIL A FF-MM-321-REV - 03... -
Page 14: Exploded View Detail B & Detail C For Sp-25 Pump
Operation and Maintenance Guide Sump Pump Page 14 Exploded View Detail B & Detail C for SP-25 Pump DETAIL B DETAIL C FF-MM-321-REV - 03... -
Page 15: Bill Of Materials For
Operation and Maintenance Guide Sump Pump Page 15 Bill of Materials for SP-25 Illustration Part Description SP-25 Illustration Part Description SP-25 Number Number Number Number 1999750 GATE VALVE 1904051 O' RING FOR IMPELLER 5009043 INTERNAL CIRCLIP FOR AIR 1902122 SPACER ROTOR BEAR- STRAINER ING(LOWER) 1993828... -
Page 16: Dimensional Data
Operation and Maintenance Guide Sump Pump Page 16 Dimensional Data Repair Kits for SP-10 & SP-25 Repair KIT Ordering No Suitable for 199 97 53 SP 10 190 97 11 SP 25 FF-MM-321-REV - 03... -
Page 17: Repair Kits For
Operation and Maintenance Guide Sump Pump Page 17 Repair Kits for SP-10 SP 10 Illu. No. Part No. Description 199 97 55 Repair Kit 1999750 GATE VALVE WITH 1994034 O' RING FOR AIR INLET BUSHING 1994033 GASKET FOR GOVERNOR HOUSING 1995041 SPRING RETAINER 1995040... -
Page 18: Repair Kits For
Operation and Maintenance Guide Sump Pump Page 18 Repair Kits for SP-25 SP 25 Illu. No. Part No. Description 190 97 11 Repair Kit 1999750 GATE VALVE 1994034 O' RING FOR AIR INLET BUSHING 1909066 ALLEN BOLT 2109035 SPRING WASHER A10 1909098 INTERNAL CIRCLIP FOR VALVE CAGE 1905068... -
Page 19: Test Certificate Of Materials, Performance
Operation and Maintenance Guide Sump Pump Page 19 TEST CERTIFICATE OF MATERIALS, PERFORMANCE Date Model number Part description & s.No. We hereby certify that the above referenced product has tested and inspected in accordance with our standard test procedures and meets the specifications for material and performance values as published in our literature. We further certify that the prod- uct has been given our standard factory test and meets all quality and performance standards established by the company. -
Page 20: Eu Declaration Of Conformity
Palghar – 401208, Maharashtra, India. CE certification registration no – C E 16832 Issued by – BMQR Certifications Pvt Ltd. www.cemarking-india.com Valid Till – 03/11/2021 Signed for and on behalf of TERYAIR EQUIPMENT PVT. LTD. Place of Issue: Date: FF-MM-321-REV - 03... -
Page 21: Warranty Certificate
Teryair; (vii) the issue with a Product is directly or indirectly attributable to, or directly or indirectly results from or arises out of, compliance with any design, specification or other specific requirement of Dealer/End User;... - Page 22 Operation and Maintenance Guide Sump Pump Page 22 This page is intentionally Left blank. FF-MM-321-REV - 03...
