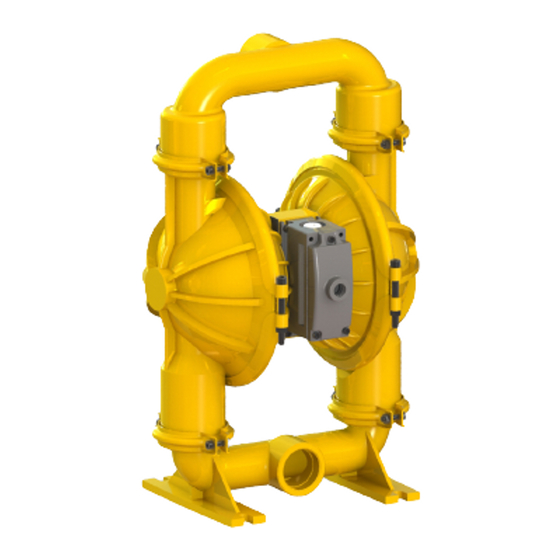

TM50ALX
DP 50 Aluminum and Stainless Steel Construction, All variants
Models
TM 50 AL N/B/S/H/V/T
TM 50 SS N/B/S/H/V/T
Read this manual carefully before installing, operating or servicing this equipment. It's the responsi-
bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
Operation and Maintenance Guide
Descriptions
Aluminum with Neoprene, Buna N, Santoprene, Hytrel, Viton and PTFE
fitments
Stainless Steel with Neoprene, Buna N, Santoprene, Hytrel, Viton and
PTFE fitments
TM50SSX
Advertisement
Table of Contents
Related Manuals for Teryair TM50AL Series
Summary of Contents for Teryair TM50AL Series
- Page 1 Operation and Maintenance Guide TM50ALX TM50SSX DP 50 Aluminum and Stainless Steel Construction, All variants Models Descriptions TM 50 AL N/B/S/H/V/T Aluminum with Neoprene, Buna N, Santoprene, Hytrel, Viton and PTFE fitments TM 50 SS N/B/S/H/V/T Stainless Steel with Neoprene, Buna N, Santoprene, Hytrel, Viton and PTFE fitments Read this manual carefully before installing, operating or servicing this equipment.
-
Page 2: Table Of Contents
Operation and Maintenance Guide TM 50 Metal Series Page 2 Table of Contents Pump Nomenclature Operating and Safety Instructions Operating Instructions Suggested Lubricants Suggested site selection and installation recommendations Troubleshooting Maintenance Diassembly and Re-assembly Bill of Materials for TM50-ANX-RCX-AXX Pump Exploded View for TM 50 Pump Bill of Materials for TM50-ABX-RCX-AXX Pump Bill of Materials for TM50-ASX-RCX-AXX Pump Bill of Materials for TM50-ATN-RCX-AXX Pump Bill of Materials for TM50-SNX-RCX-AXX Pump Bill of Materials for TM50-SBX-RCX-AXX Pump Bill of Materials for TM50-SSX-RCX-AXX Pump Dimensional Data Air Valve Replacement Kits for TM 50 ALX/SSX Pumps Repair Kits for TM 50 ALX /SSX Pumps 20 Eu Declaration Of Conformity 21 Summery For The Atex Rating For Teryair Aodd Models 22 Warranty Certificate FF-MM-373-REV - 04... -
Page 3: Pump Nomenclature
Operation and Maintenance Guide TM 50 Metal Series Page 3 Pump Nomenclature Operating and Safety Instruc- Warning: Overpressure/Hazard- tions ous Pressure Do not exceed the max supply air pressure of Warning. Static Electricity 125 PSI. Make sure all connected hoses and pipelines Static sparks can cause explosion resulting in are rated to operate safely with the pressures severe injury or death. -
Page 4: Operating Instructions
4. Clean the surface with damp cloth only to avoid electrostatic charge hazard. Operating Instructions The Teryair Stroke diaphragm pump generates a alternate stroking of the diaphragms against the fluid in the liquid chambers of the Pump. This reciprocatory action is responsible for the fluid being pumped. -
Page 5: Suggested Lubricants
Operation and Maintenance Guide TM 50 Metal Series Page 5 Caution: Temperature limitations and diaphragm options An excellent general-purpose diaphragm for use in non-aggressive applications such as water-based slur- ries, well water or sea water. Exhibits excellent flex Neoprene life and low cost. Temperature range -18°C to +93°C (0°F to +200°F) Excellent for applications involving petroleum / oil-based fluids such as leaded gasolines, fuel oils, Nitile non-synthetic hydraulic oils, kerosene, turpentine and motor oils. Temperature range -12°C to +82°C (+10°F to +180°F) Good abrasion resistance. Low cost. Can handle mild acids and alkalis well. Excellent low cost alternative Santoprene to ptfe. Excellent suction capabilites Excellent general purpose diaphragm. Temperature range -40°C to +107°C (-40F to +225°F) Excellent choice when pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, PTFE acids, caustics, ketones and acetates. Temperature range +4°C to +104°C (+40°F to +220°F) Suggested Lubricants Brand Above 27 Deg C ( From 5 Deg C to 27 Deg C... -
Page 6: Suggested Site Selection And Installation Recommendations
Operation and Maintenance Guide TM 50 Metal Series Page 6 Suggested site selection and installation recommendations Figure 1 maintained with the fluid being pumped. Location selection Pump location must be easily accessible with reasonable Suction space around for maintenance operations. Pump dimensional data for each variant is available in Ensure that the suction head after installation is well with- section showing exploded views... -
Page 7: Troubleshooting
Operation and Maintenance Guide TM 50 Metal Series Page 7 Troubleshooting Serial No Description Causes Remedial Action Pump stops and Insufficient Air Pressure Check air pressure is as recommended will not start at the pump air inlet Air Filter Blocked Check if debris has clogged the inlet fil- ter on the FRL unit/pump inlet air valve ( some models have air filter on the air... -
Page 8: Maintenance
Follow the instructions in “Disassembly and Reassembly” of the pump and in the troubleshoot- ing section. Use genuine Teryair spares and if possible mention the serial number of the pump when order- ing spares. Always replace elastomers as a set, eg diaphragms, balls and seats. - Page 9 Operation and Maintenance Guide TM 50 Metal Series Page 9 prevent damaging the inside portion of the new seals. With a new seal in hand, place the two legs of the nose pliers inside the seal ring. Open the pliers as wide as the seal diameter will allow, then two fingers pull down on the top portion of the seal to form kidney bean shape.
-
Page 10: Bill Of Materials For Tm50-Anx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 10 Bill of Materials for TM50-ANX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009068 Allen Bolt 2004039 Inlet Base-TM50 0224021 Hex Nut 2004037 Outlet-TM50 1999047 Spring Washer 2021002 Inner Flange-TM50/TP50 2004030... -
Page 11: Exploded View For Tm 50 Pump
Operation and Maintenance Guide TM 50 Metal Series Page 11 Exploded View for TM 50 Pump FF-MM-373-REV - 04... -
Page 12: Bill Of Materials For Tm50-Abx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 12 Bill of Materials for TM50-ABX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009068 Allen Bolt 2004039 Inlet Base-TM50 0224021 Hex Nut 2004037 Outlet-TM50 1999047 Spring Washer 2021002 Inner Flange-TM50/TP50 2004030... -
Page 13: Bill Of Materials For Tm50-Asx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 13 Bill of Materials for TM50-ASX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009068 Allen Bolt 2004039 Inlet Base-TM50 0224021 Hex Nut 2004037 Outlet-TM50 1999047 Spring Washer 2021002 Inner Flange-TM50/TP50 2004030... -
Page 14: Bill Of Materials For Tm50-Atn-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 14 Bill of Materials for TM50-ATN-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009025 Allen Bolt 2004039 Inlet Base-TM50 2004049 Allen Bolt 2004037 Outlet-TM50 2009068 Allen Bolt 2021002 Inner Flange-TM50/TP50 0224021... -
Page 15: Bill Of Materials For Tm50-Snx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 15 Bill of Materials for TM50-SNX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009068 Allen Bolt 2020701 Inlet Base-TM50 0224021 Hex Nut 2020702 Outlet-TM50 1999047 Spring Washer 2021002 Inner Flange-TM50/TP50 2004030... -
Page 16: Bill Of Materials For Tm50-Sbx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 16 Bill of Materials for TM50-SBX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2009068 Allen Bolt 2020701 Inlet Base-TM50 0224021 Hex Nut 2020702 Outlet-TM50 1999047 Spring Washer 2021002 Inner Flange-TM50/TP50 2004030... -
Page 17: Bill Of Materials For Tm50-Ssx-Rcx-Axx Pump
Operation and Maintenance Guide TM 50 Metal Series Page 17 Bill of Materials for TM50-SSX-RCX-AXX Pump Illu. Part No. Description Illu. Part No. Description 2001028 Shaft Housing-TM50 2001032 Blocking Pad-TM50 2020701 Inlet Base-TM50 2004031 Gasket-TM50 2020702 Outlet-TM50 2009025 Allen Bolt 2001027 Inner Flange-TM50 2004049... -
Page 18: Dimensional Data
Operation and Maintenance Guide TM 50 Metal Series Page 18 Dimensional Data TM 50 ALX TM 50 SSX Air Valve Replacement Kits for TM 50 ALX/SSX Pumps Air Valve Replacement Kit consists of a complete operational air valve assembly complete. Consisting of Air Valve Body, End Plates, Spool and all seals, o rings and gaskets. - Page 19 Operation and Maintenance Guide TM 50 Metal Series Page 19 Repair and Replacement Kits ALX/SSX Pumps ILLU. PART NO. DESCRIPTION 200 40 13 RUBBER RINGS 202 40 41B DIAPHRAGM (BUNA) 202 40 41 DIAPHRAGM (NEOPRENE) 202 41 01 DIAPHRAGM (SANTOPRENE) 200 36 41T DIAPHRAGM (PTFE) 200 40 66N...
-
Page 20: Eu Declaration Of Conformity
Notified body to whom Technical file has logged with: - Technicka Inspekcia (Ref: 1354). DECLARATION: - TERYAIR EQUIPMENT PVT. LTD., declare that under our sole responsibility for the supply of the product defined above, the said product complies with all the applicable Directives, Regulations and all essential Health and Safety requirements applying to it. -
Page 21: Summery For The Atex Rating For Teryair Aodd Models
Operation and Maintenance Guide TM 50 Metal Series Page 21 SUMMERY FOR THE ATEX RATING FOR TERYAIR AODD MODELS Pump Series Wetted Materials Center Section Dipharagm Materials ATEX Rating Size Neoprene ll 2 GD Ex h IIC T6 Gb Ex h IIIC T85⁰C Db (IP65) -
Page 22: Warranty Certificate
Teryair products or components. Dealer/End User shall have no right or remedy and Teryair shall have no liability or obligation under the warranty, if: (i) a Product is altered, changed, modified or tampered with in any way, (ii) a Product is damaged after deposit with the transporter for shipment; (iii) a Product is not properly preserved, packaged, stored, processed or handled after receipt;...
