Read this manual carefully before installing, operating or servicing this equipment. It's the responsi-
bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
This document is issued with Product Serial No

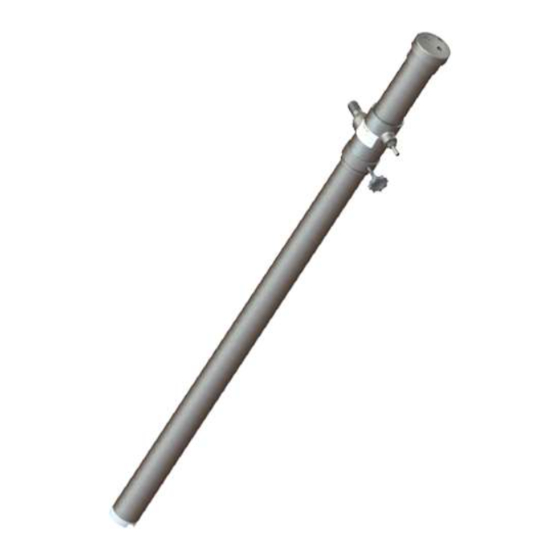

Operation and Maintenance Guide
B P 10
Descriptions
Barrel pump
IMPA Number
59 16 53
Advertisement
Table of Contents
Related Manuals for Teryair BP-10
Summary of Contents for Teryair BP-10
- Page 1 B P 10 Models Descriptions IMPA Number BP-10 Barrel pump 59 16 53 Read this manual carefully before installing, operating or servicing this equipment. It’s the responsi- bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
-
Page 2: Table Of Contents
Operation and Maintenance Guide Barrel pump Page 2 Table of Contents Introduction Technical Data Safety Instructions Operating Instructions Suggested Lubricants Troubleshooting Disassembly and Re-assembly Exploded View for BP-10 Bill of Materials for BP-10 Repair Kits for BP-10 Test Certificate Of Materials, Performance Eu Declaration Of Conformity Warranty Certificate FF-MM-317-REV - 01... -
Page 3: Introduction
Page 3 Introduction Teryair Pneumatic Barrel (Drum) Pumps are ideally suited for transferring light oils from barrels. They can be directly inserted into a barrel and screwed onto the bung by means of the provided adaptor. They can be inserted into most barrels and operate over a range of air inlet pressures. -
Page 4: Operating Instructions
Damage Or Leaks Always Install A Line Lubricator On The Airline As Close To The Pump As Possible. A Use Genuine Teryair Spares And If Possible Filter Regulator Lubricator Unit (Frl)Is Mention The Serial Number Of The Pump Strongly Recommended. Keep The Lubricator When Ordering Spares. -
Page 5: Troubleshooting
Operation and Maintenance Guide Barrel pump Page 5 Troubleshooting Serial No Description Causes Remedial Action Pump stopped and Insufficient Air Pressure Check air pressure is as recommended will not start. at the pump air inlet Air Filter Blocked Check if debris has clogged the inlet filter on the FRL unit/pump inlet air valve (some models have air filter on the air inlet valve ) and ensure clear passage... -
Page 6: Disassembly And Re-Assembly
Operation and Maintenance Guide Barrel pump Page 6 Disassembly and Re-assembly Piston Rod (18). a. Unscrew Hose Nipple (43) and Hose k. Now remove Spring (16), Locking plate Nipple (44) from Piston Housing (23). (15) and Piston Seal (14) from Piston Unscrew Bottom Cap (41) from Barrel (13) and replace it with new ones. -
Page 7: Exploded View For
Operation and Maintenance Guide Barrel pump Page 7 Exploded View for BP-10 DETAIL A DETAIL C DETAIL B FF-MM-317-REV - 01... - Page 8 Operation and Maintenance Guide Barrel pump Page 8 Exploded View Detail A for BP-10 Pump DETAIL A FF-MM-317-REV - 01...
- Page 9 Operation and Maintenance Guide Barrel pump Page 9 Exploded View Detail B for BP-10 Pump DETAIL B FF-MM-317-REV - 01...
- Page 10 Operation and Maintenance Guide Barrel pump Page 10 Exploded View Detail B for BP-10 Pump DETAIL C FF-MM-317-REV - 01...
-
Page 11: Bill Of Materials For
Operation and Maintenance Guide Barrel pump Page 11 Bill of Materials for BP-10 Part Part Sr.No Description BP-10 Sr.No Description BP-10 Number Number PHILIPS PAN HEAD SCREW 298 00 03 WASHER FOR PISTON HOUS- 298 00 63 SPRING WASHER 298 00 04... -
Page 12: Repair Kits For
Operation and Maintenance Guide Barrel pump Page 12 Repair Kits for BP-10 BP 10 Illu. No. Part No. Description 298 00 14K Repair Kit 298 00 07 O' RING (TUBE) 298 00 13 WASHER FOR CONICAL SPRING 298 00 25... -
Page 13: Test Certificate Of Materials, Performance
Operation and Maintenance Guide Barrel pump Page 13 TEST CERTIFICATE OF MATERIALS, PERFORMANCE DATE MODEL NUMBER PART DESCRIPTION & S.NO. We hereby certify that the above referenced product has tested and inspected in accordance with our standard test procedures and meets the specifications for material and performance values as published in our literature. We further certify that the product has been given our standard factory test and meets all quality and performance standards established by the company. -
Page 14: Eu Declaration Of Conformity
Palghar – 401208, Maharashtra, India. CE certification registration no – C E 16832 Issued by – BMQR Certifications Pvt Ltd. www.cemarking-india.com Valid Till – 03/11/2021 Signed for and on behalf of TERYAIR EQUIPMENT PVT. LTD. Place of Issue: Date: FF-MM-317-REV - 01... -
Page 15: Warranty Certificate
Teryair; (vii) the issue with a Product is directly or indirectly attributable to, or directly or indirectly results from or arises out of, compliance with any design, specification or other specific requirement of Dealer/End User;... - Page 16 Operation and Maintenance Guide Barrel pump Page 16 This page is intentionally Left blank. FF-MM-317-REV - 01...
